3.7L V-6
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

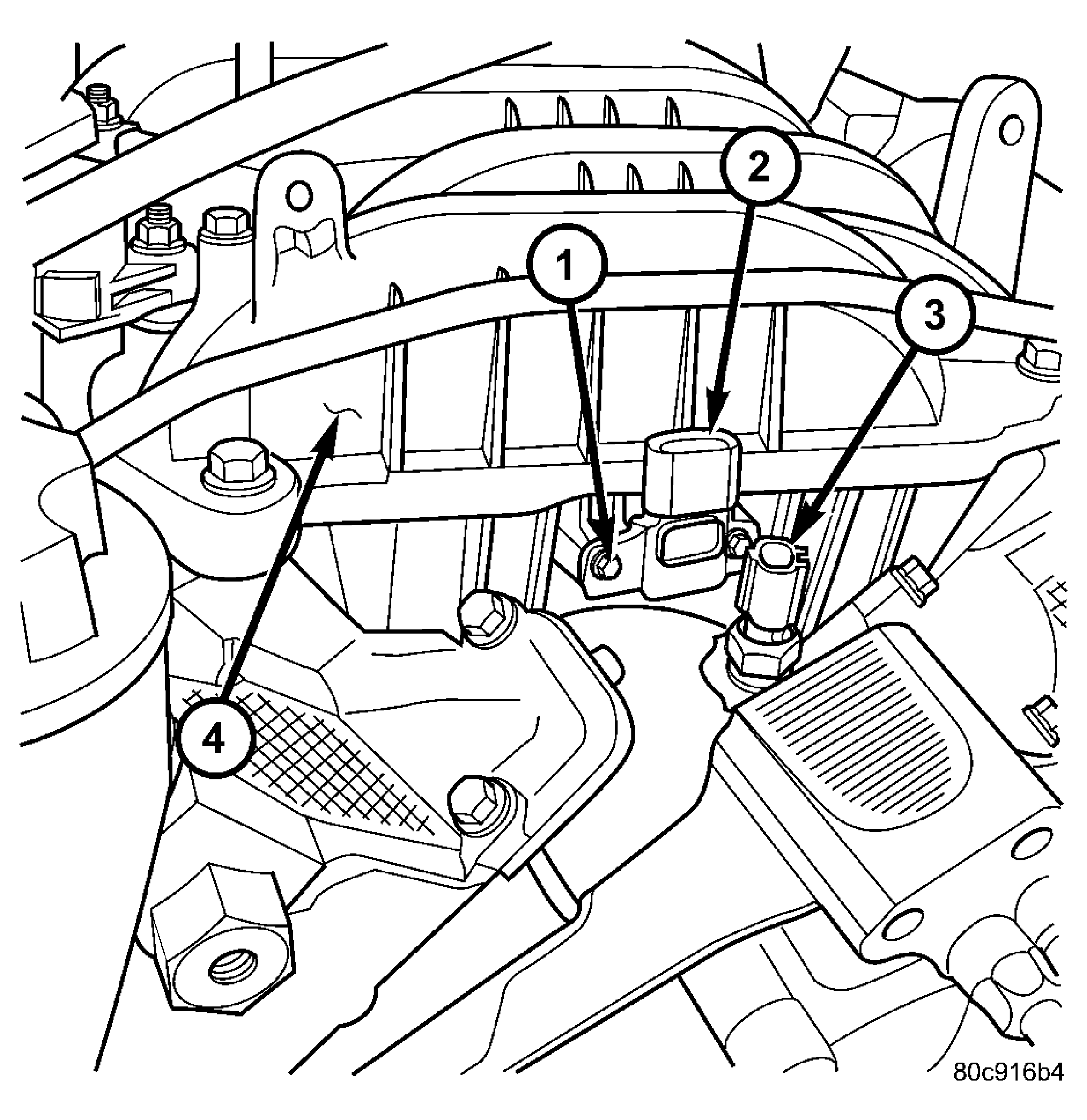

| 1 - MOUNTING SCREWS |
| 2 - MAP SENSOR |
| 3 - ECT SENSOR |
| 4 - FRONT OF INTAKE MANIFOLD |
- Apply thread sealant to sensor threads.
- Install sensor to engine.
- Tighten sensor to 11 N.m (8 ft. lbs.) torque.
- Connect electrical connector to sensor.
- Replace any lost engine coolant. (Refer to COOLING - STANDARD PROCEDURE) .
