Section 560 (Engine Cooling System & Automatic Transmission Cooling System): Engine: Pump-Water: Removal: 5.7L

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

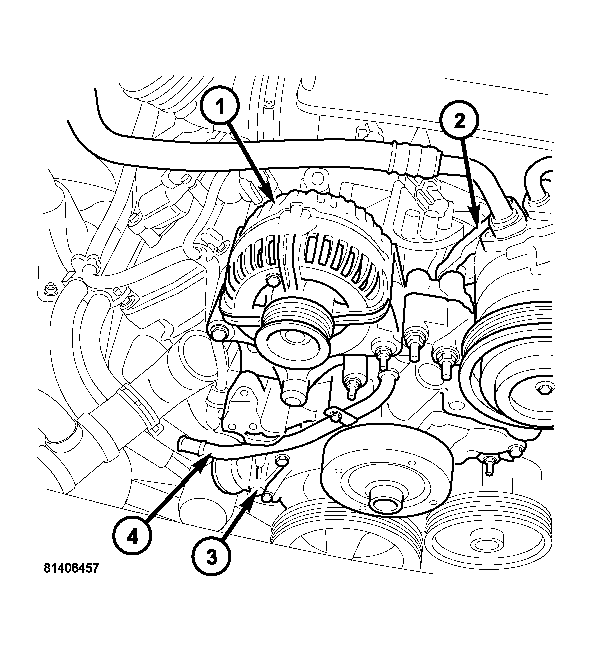

Fig 1: 5.7L Water Pump
GC0028748Courtesy of DAIMLERCHRYSLER CORP.
1 - GENERATOR
2 - A/C COMPRESSOR
3 - WATER PUMP
4 - HEATER BYPASS TUBE
  1. Disconnect negative battery cable.
  2. Drain coolant.
  3. Remove serpentine belt.
  4. Remove fan clutch assembly.
  5. Remove coolant fill bottle.
  6. Disconnect washer bottle wiring and hose.
  7. Remove fan shroud assembly.
  8. Remove A/C compressor and generator brace.
  9. Remove idler pulleys.
  10. Remove belt tensioner assembly.
  11. Remove upper and lower radiator hoses.
  12. Remove heater hoses.
  13. Remove water pump mounting bolts and remove pump.
