3.0L Diesel
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

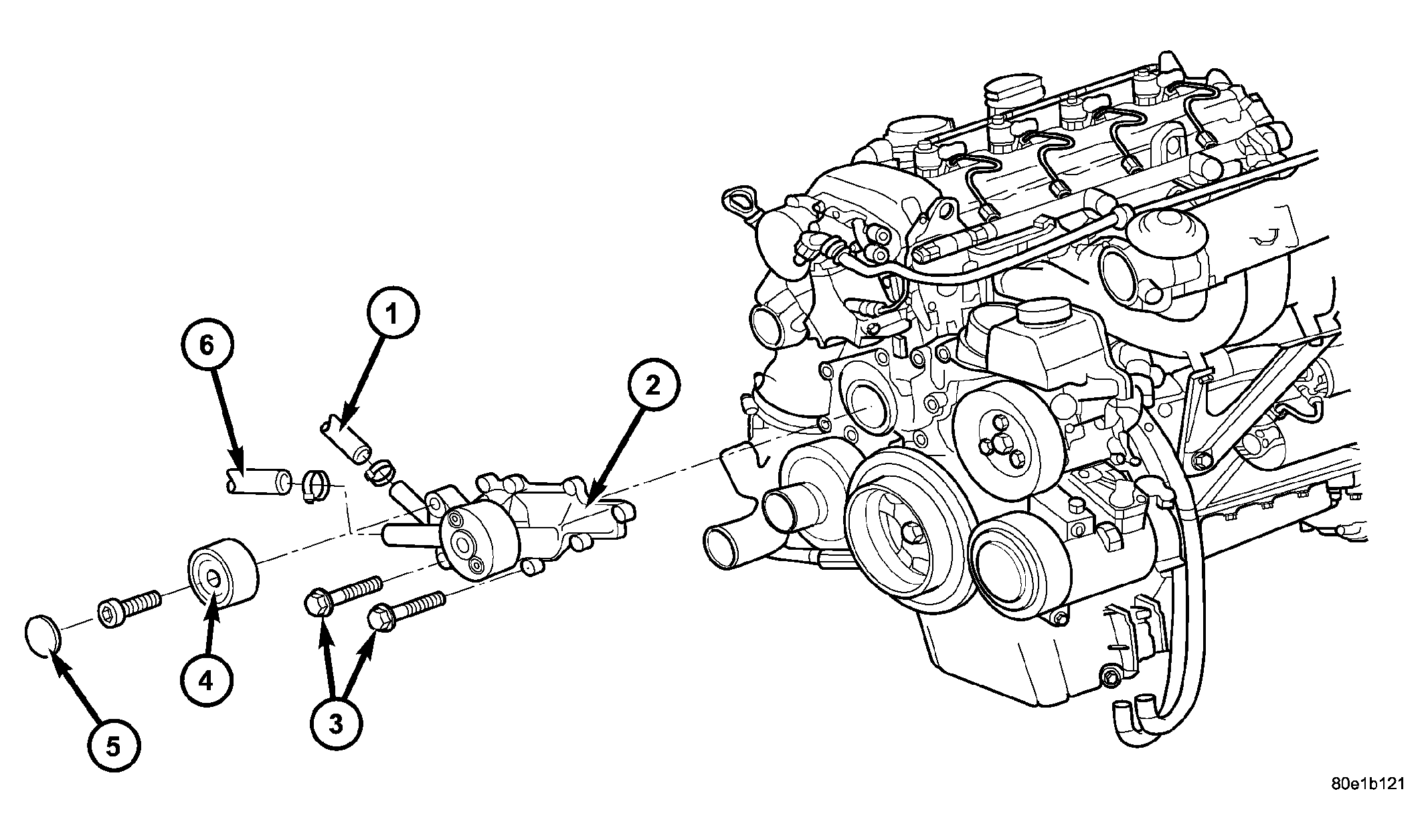

| 1 - COOLANT HOSE |
| 2 - WATER PUMP |
| 3 - WATER PUMP BOLTS |
| 4 - IDLER PULLEY |
| 5 - IDLER PULLEY CAP |
| 6 - COOLANT HOSE |
- Clean all sealing surfaces.
- Position and install water pump. See Figure. Tighten M6 bolts to 14N.m (124 lbs. in.) and M8 bolts to 20N.m (177 lbs. in.).
- Install idler pulley. Tighten bolt to 35N.m (26 lbs. ft.).
- Install coolant hoses.
- Install accessory drive belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
- Close coolant drain.
- Install engine cover (Refer to ENGINE - INSTALLATION)(Refer to ENGINE - INSTALLATION)(Refer to ENGINE - INSTALLATION) .
- Connect negative battery cable.
- Fill coolant system to proper level with the appropriate coolant mixture (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .WARNING: USE EXTREME CAUTION WHEN ENGINE IS OPERATING. DO NOT PUT YOUR HANDS NEAR PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHES.
- Start engine and inspect for leaks.
