5.7L Engine
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

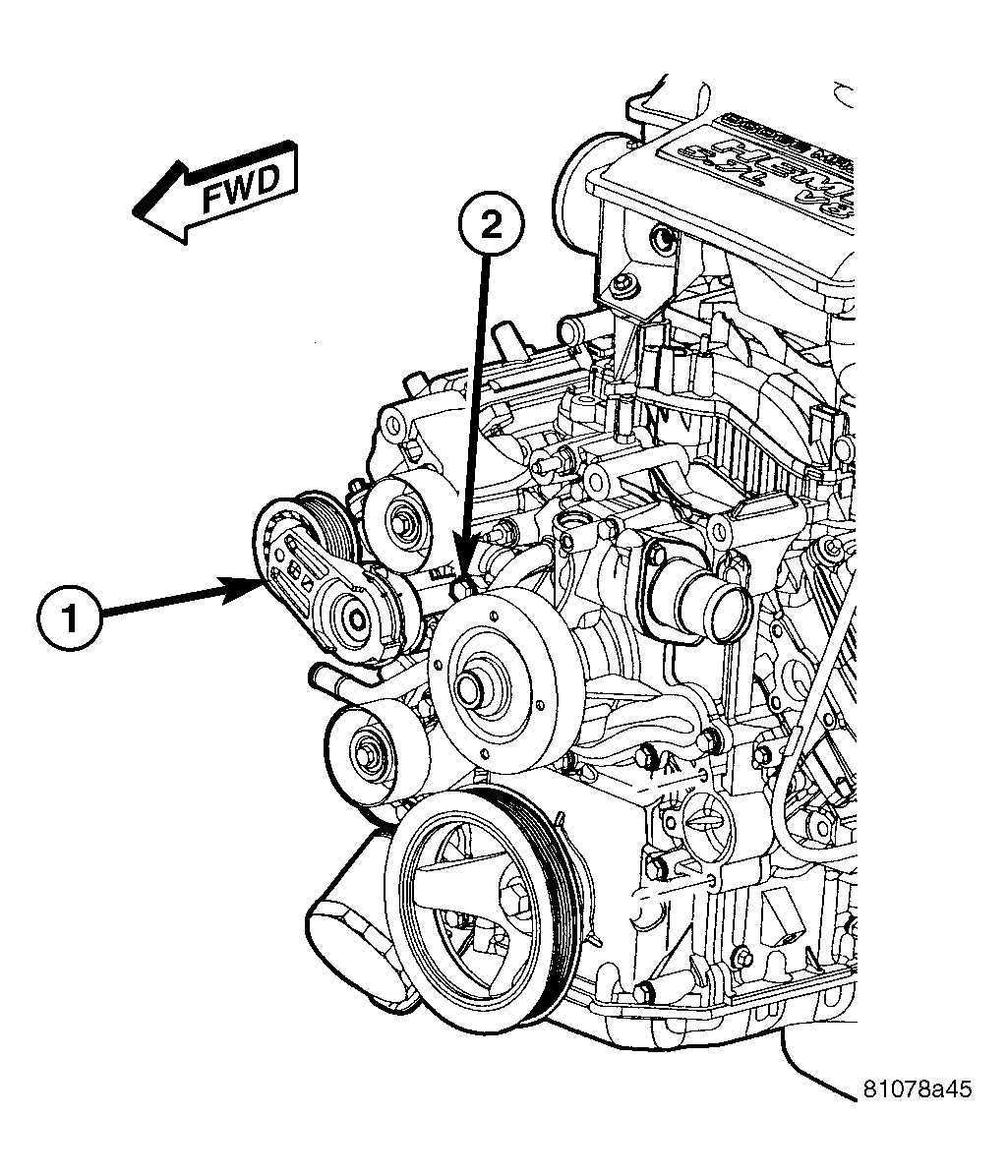

| 1 - TENSIONER |
| 2 - BOLT |
- Align locator tang on tensioner with slot in front cover.
- Install tensioner and mounting bolt to front cover. Tighten bolt to 41 N.m (30 ft. lbs.).
- Install accessory drive belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
