3.0L Diesel

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

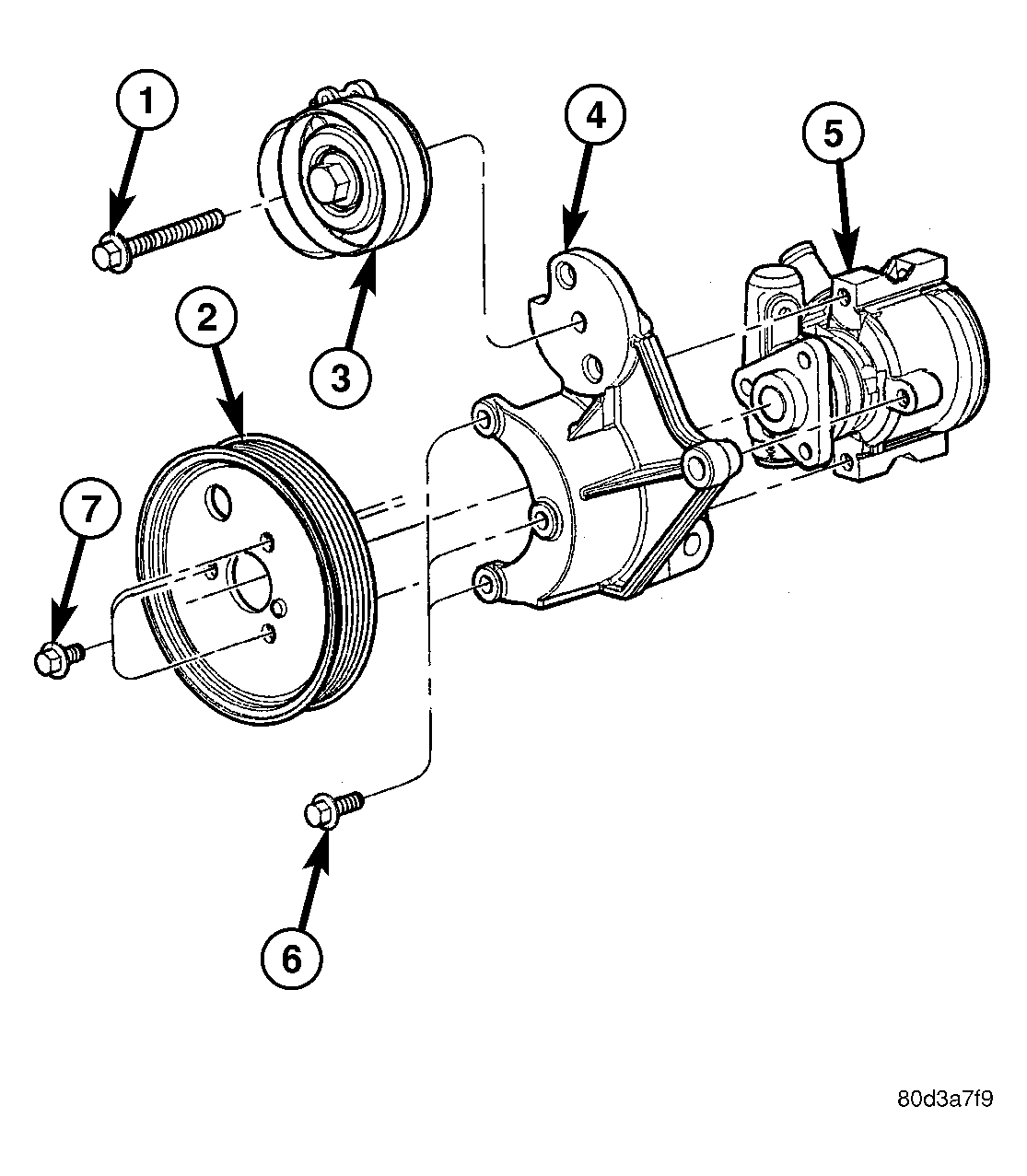

Fig 1: Belt Tensioner Assembly - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

1 - ACCESSORY BELT TENSIONER RETAINING BOLT

2 - POWER STEERING PUMP PULLEY

3 - BELT TENSIONER

4 - BRACKET

5 - POWER STEERING PUMP

6 - POWER STEERING PUMP RETAINING BOLTS

7 - POWER STEERING PUMP PULLEY RETAINING BOLTS

Install belt tensioner on bracket. Torque retaining bolt to 47.1N.m. See Fig 1.

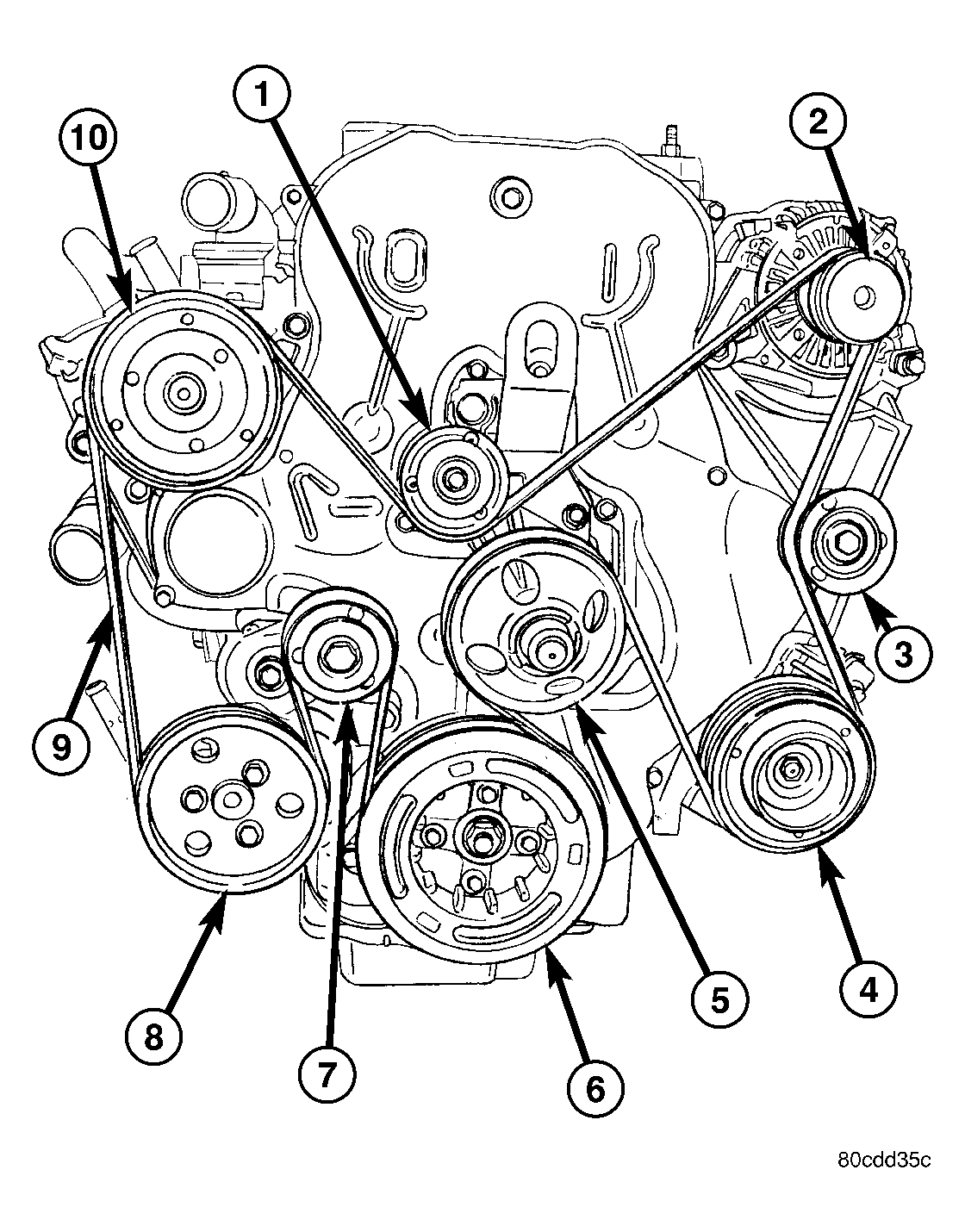

Fig 2: Accessory Drive Belt Routing

Courtesy of DAIMLERCHRYSLER CORP.

1 - IDLER PULLEY

2 - GENERATOR

3 - IDLER PULLEY

4 - A/C COMPRESSOR

5 - COOLING FAN SUPPORT

6 - VIBRATION DAMPER

7 - BELT TENSIONER

8 - POWER STEERING PUMP

9 - ACCESSORY DRIVE BELT

10 - VISCOUS HEATER

Install accessory drive belt. See Fig 2. (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
Connect negative battery cable.
