5.7L Engine
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

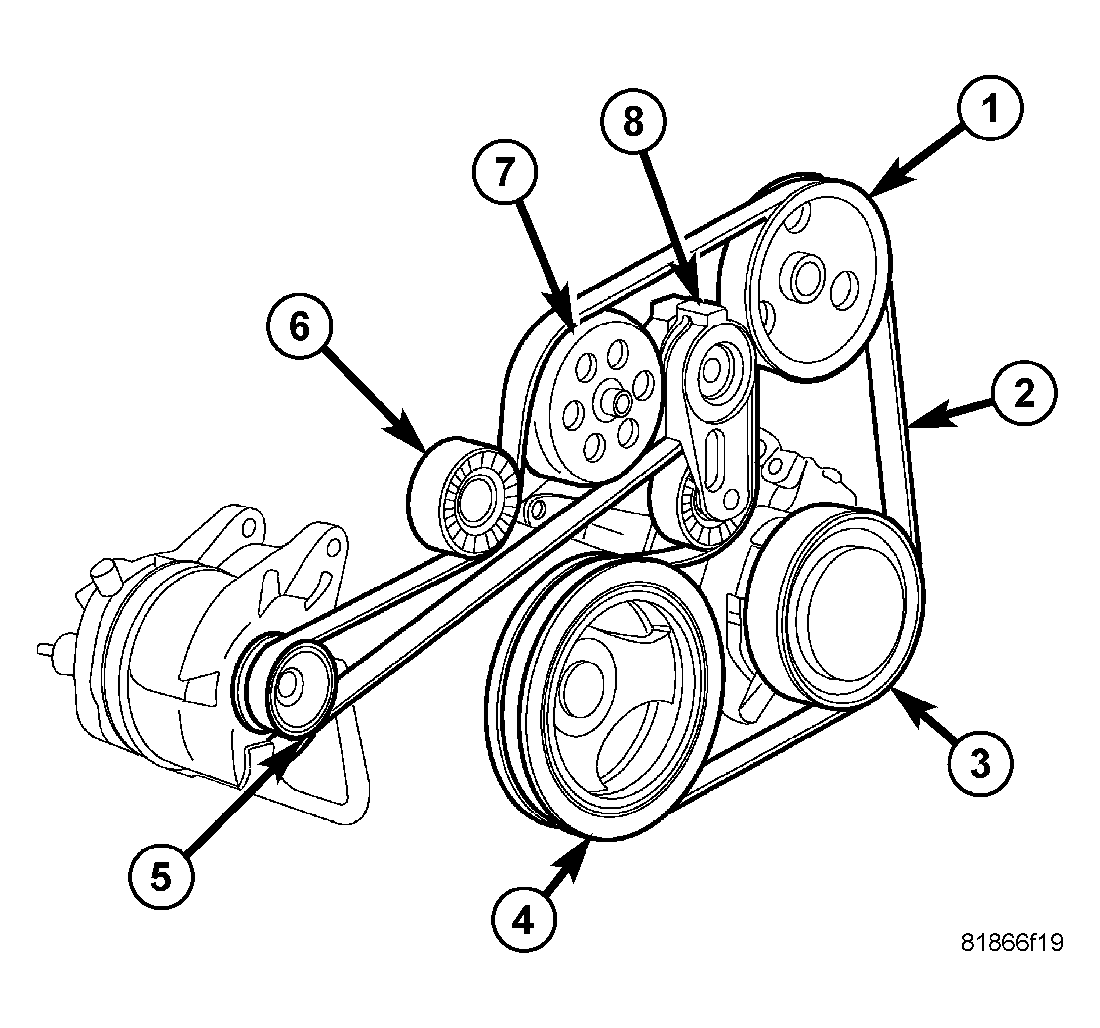

| 1 - POWER STEERING PUMP PULLEY |
| 2 - ACCESSORY DRIVE BELT |
| 3 - A/C COMPRESSOR PULLEY |
| 4 - CRANKSHAFT PULLEY |
| 5 - GENERATOR PULLEY |
| 6 - IDLER PULLEY |
| 7 - WATER PUMP PULLEY |
| 8 - AUTOMATIC BELT TENSIONER |
- Remove the air intake tube between intake manifold and air filter assembly.
- Release the belt tension by rotating the tensioner counterclockwise with a 15 mm wrench on the tensioner pulley bolt. Rotate belt tensioner until belt can be removed from pulleys. See Fig 1.
- Remove belt.
- Gently release tensioner.
