3.0L Diesel

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

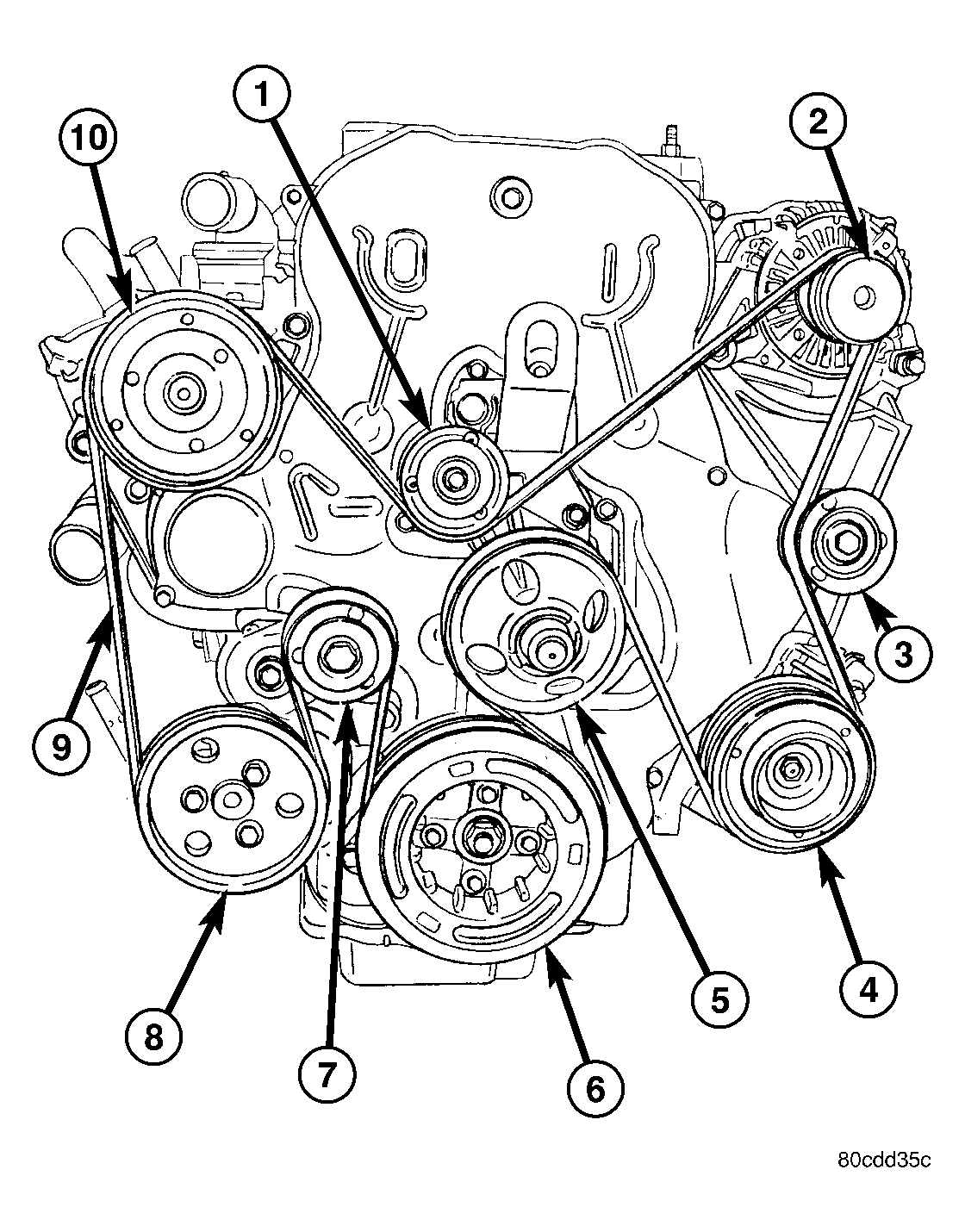

Fig 1: Accessory Drive Belt

Courtesy of DAIMLERCHRYSLER CORP.

1 - IDLER PULLEY

2 - GENERATOR

3 - IDLER PULLEY

4 - A/C COMPRESSOR

5 - COOLING FAN SUPPORT

6 - VIBRATION DAMPER

7 - BELT TENSIONER

8 - POWER STEERING PUMP

9 - ACCESSORY DRIVE BELT

10 - VISCOUS HEATER

NOTE: The belt routing schematics are published from the latest information available at the time of publication. If anything differs between these schematics and the Belt Routing Label, use the schematics on Belt Routing Label. This label is located in the engine compartment.

CAUTION: DO NOT LET TENSIONER ARM SNAP BACK TO THE FREEARM POSITION, SEVERE DAMAGE MAY OCCUR TO THE TENSIONER.

Belt tension is not adjustable. Belt adjustment is maintained by an automatic (spring loaded) belt tensioner.

Disconnect negative battery cable.
Rotate belt tensioner until it contacts its stop. Remove belt, then slowly rotate the tensioner into the freearm position.
