5.7L Engine
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - GENERATOR |
| 2 - IDLER PULLEY |
| 3 - WATER PUMP |
| 4 - P/S PUMP |
| 5 - A/C COMPRESSOR |
| 6 - CRANKSHAFT |
| 7 - BELT TENSIONER |
NOTE:
When installing accessory drive belt onto pulleys, make sure that belt is properly routed and all V-grooves make proper contact with pulleys.

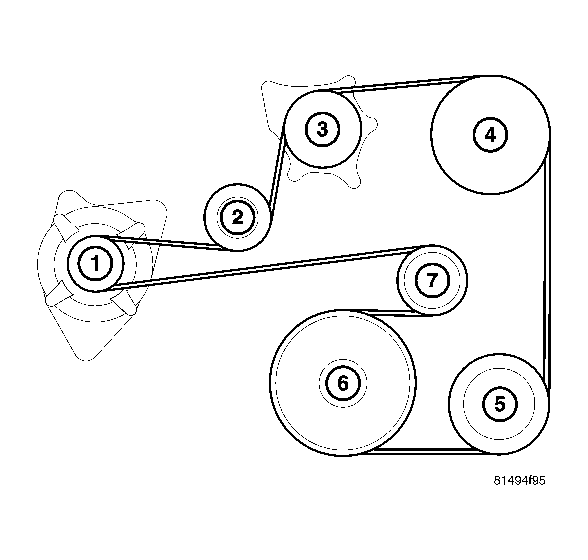

- Position the drive belt over all pulleys except for the water pump pulley. See Fig 1.
- Rotate tensioner counterclockwise and slip the belt over the water pump pulley.
- Gently release tensioner.
- Install the air intake tube between intake manifold and air filter assembly.
