5.7L V-8

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

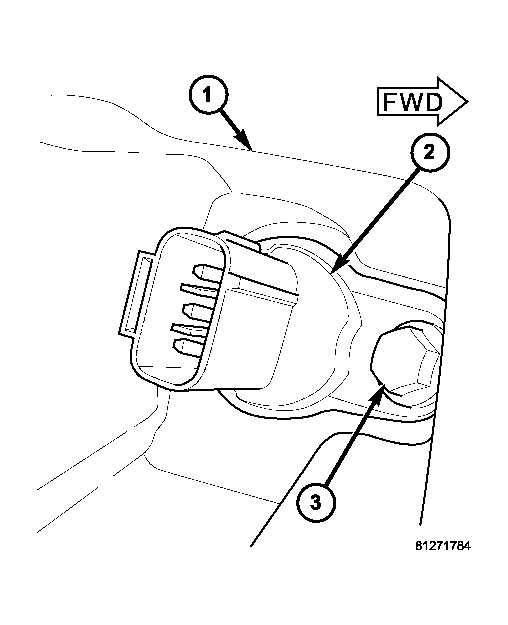

Fig 1: CMP Location - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

The Camshaft Position Sensor (CMP) on the 5.7L V-8 engine is located on right side of timing chain cover below generator (1).

Disconnect electrical connector (3) at CMP sensor.

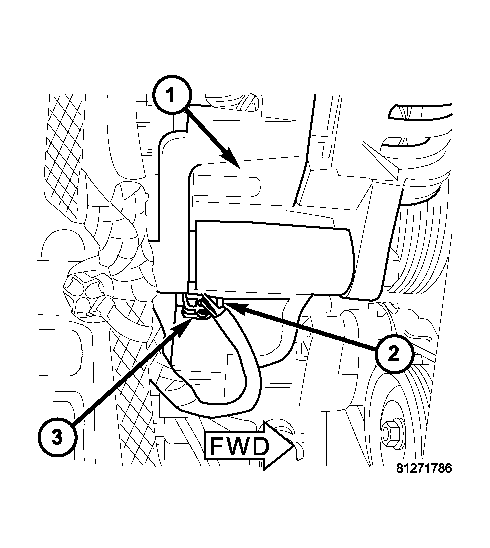

Fig 2: CMP Removal / Installation - 5.7L V-8
Courtesy of DAIMLERCHRYSLER CORP.
Remove sensor mounting bolt (3).
Carefully twist sensor (2) from cylinder head.
Check condition of sensor o-ring.
