5.7L V-8

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

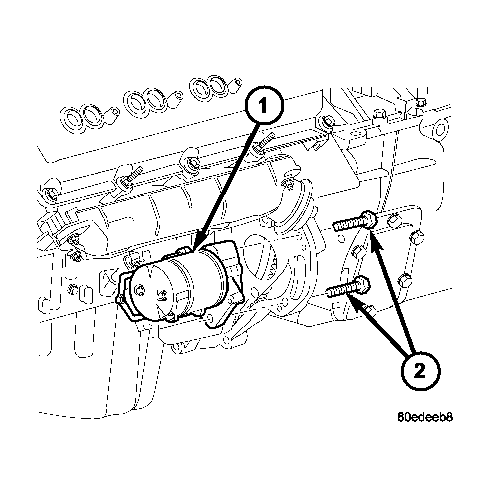

Fig 1: Starter Removal/Installation - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

Connect solenoid wire to starter motor (snaps on).
Position battery cable to solenoid stud. Install and tighten battery cable eyelet nut. Refer to SPECIFICATIONS - TORQUE - STARTING SYSTEM . Do not allow starter motor to hang from wire harness.
Position starter motor (1) to engine.
If equipped with automatic transmission, slide cooler tube bracket into position.
Install and tighten both mounting bolts (2). Refer to SPECIFICATIONS - TORQUE - STARTING SYSTEM .
Lower vehicle.
Connect negative battery cable.
