Section 545 (4.7L Engine (Service Information))
>>
Engine - 4.7L Service Information
>>
Special Tools
>>
4.7L Engine
4.7L Engine
WARNING:
This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

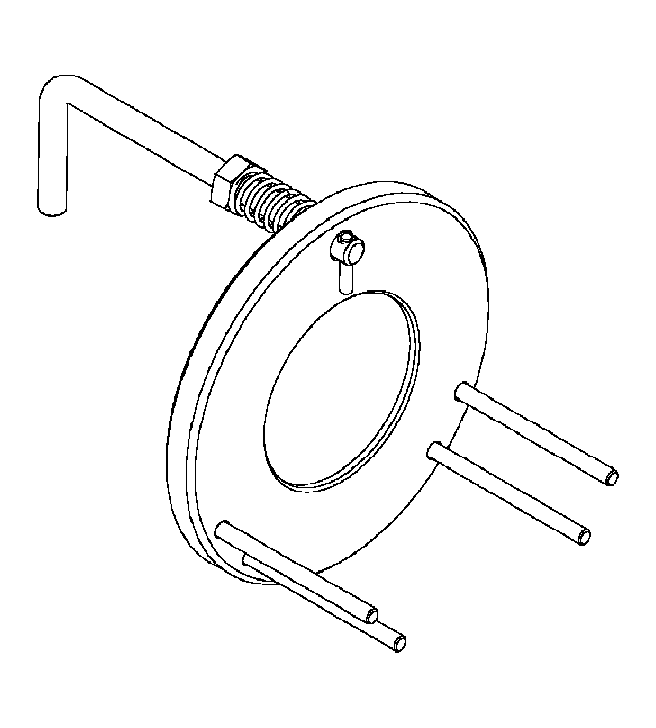

Fig 1: Spanner Wrench 6958
Courtesy of DAIMLERCHRYSLER CORP.

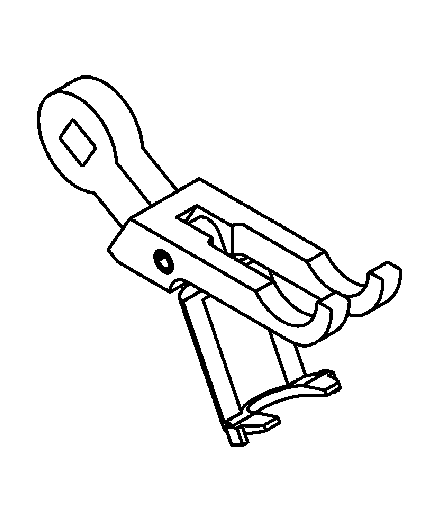

Fig 2: Adapter Pins 8346
Courtesy of DAIMLERCHRYSLER CORP.

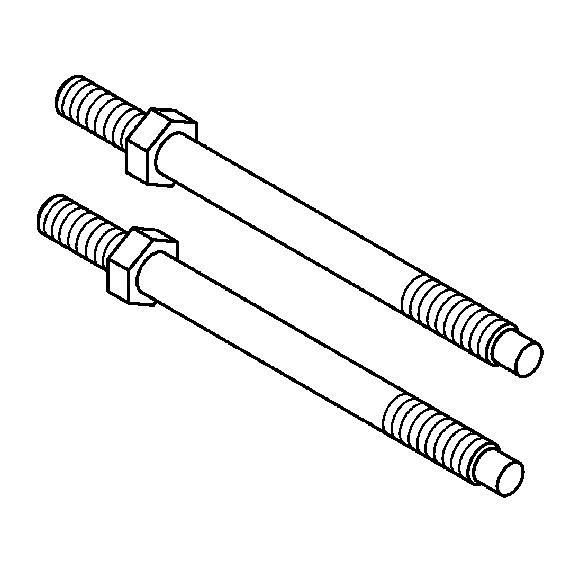

Fig 3: Engine Lifting Studs 8400
Courtesy of DAIMLERCHRYSLER CORP.

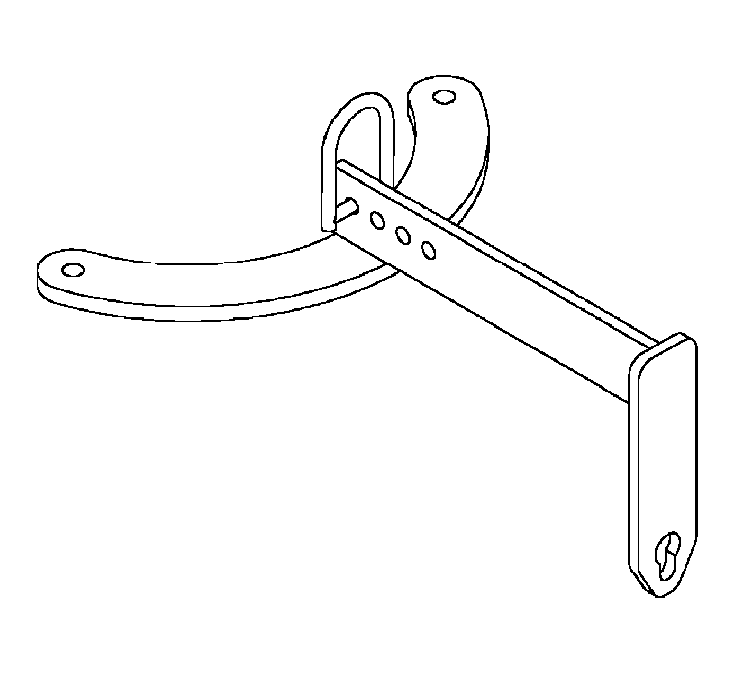

Fig 4: Engine Lift Fixture 8347
Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Front Crankshaft Seal Remover 8511
Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Front Crankshaft Seal Installer 8348
Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Universal Driver Handle - C4171
Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: Rear Crankshaft Seal Installer 8349
Courtesy of DAIMLERCHRYSLER CORP.
Fig 9: Rear Crankshaft Seal Remover 8506
Courtesy of DAIMLERCHRYSLER CORP.
Fig 10: Connecting Rod Guides 8507
Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: Crankshaft Damper Installer 8512
Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: Engine Support Fixture 8534
Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Puller 1026
Courtesy of DAIMLERCHRYSLER CORP.
Fig 14: Crankshaft Damper Removal Insert 8513
Courtesy of DAIMLERCHRYSLER CORP.
Fig 15: Chain Tensioner Wedge 8379
Courtesy of DAIMLERCHRYSLER CORP.
Fig 16: Chain Tensioner Pins 8514
Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Secondary Chain Holder 8515
Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: Remover, Rocker Arm 8516
Courtesy of DAIMLERCHRYSLER CORP.
Fig 19: Valve Spring Compressor 8387
Courtesy of DAIMLERCHRYSLER CORP.
Fig 20: Idler Shaft Remover 8517
Courtesy of DAIMLERCHRYSLER CORP.
Fig 21: Valve Spring Compressor Adapters 8519
Courtesy of DAIMLERCHRYSLER CORP.
Fig 22: Valve Spring Tester C-647
Courtesy of DAIMLERCHRYSLER CORP.
Fig 23: Dial Indicator C-3339
Courtesy of DAIMLERCHRYSLER CORP.
Fig 24: Valve Spring Compressor C-3422-B
Courtesy of DAIMLERCHRYSLER CORP.
Fig 25: Bore Size Indicator C-119
Courtesy of DAIMLERCHRYSLER CORP.
Fig 26: Oil Pressure Gauge C-3292
Courtesy of DAIMLERCHRYSLER CORP.
Fig 27: Piston Ring Compressor C-385
Courtesy of DAIMLERCHRYSLER CORP.
Fig 28: Cooling System Tester 7700
Courtesy of DAIMLERCHRYSLER CORP.
Fig 29: BLOC-CHEK-KIT C-3685-A
Courtesy of DAIMLERCHRYSLER CORP.
