Section 545 (4.7L Engine (Service Information)): Crankshaft: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Crankshaft Thrust Washer Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - CRANKSHAFT THRUST WASHER

CAUTION: Main bearings are select fit. (Refer to ENGINE/ENGINE BLOCK/CRANKSHAFT MAIN BEARINGS - STANDARD PROCEDURE) for proper bearing selections.

Lubricate upper main bearing halves with clean engine oil.
CAUTION: When installing crankshaft, use care not to damage bearing surfaces on the crankshaft.

NOTE: Apply sealant to the target wheel retaining screws prior to installation.
Install the crankshaft target wheel. Torque the mounting screws to 15 N.m (12 ft. lbs.).
Position crankshaft in cylinder block.
Install the thrust washers (1).

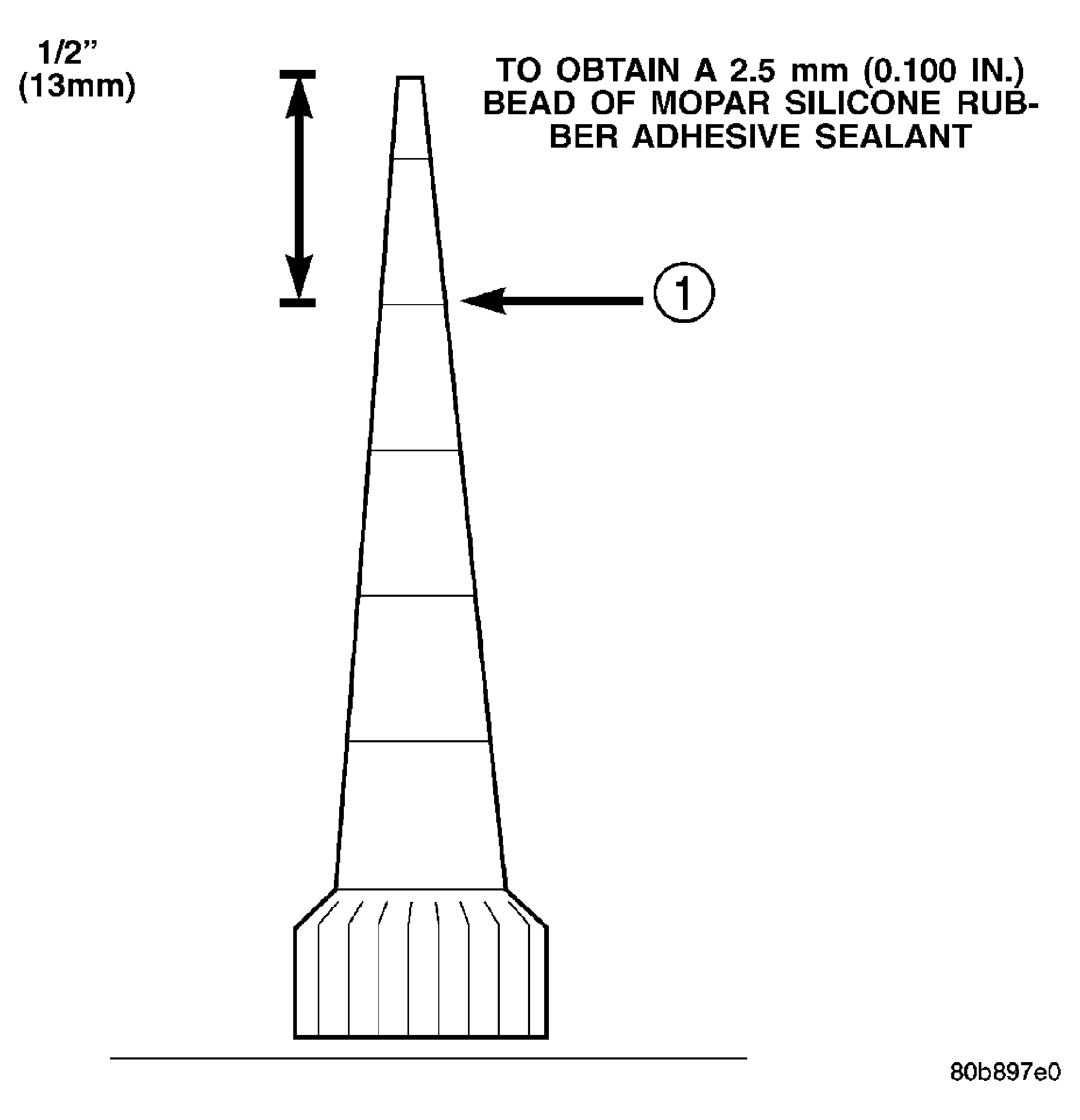

Fig 2: Cutting Applicator To Achieve 2.5mm (0.100 in.) Bead
Courtesy of DAIMLERCHRYSLER CORP.

1 - CUT HERE

Fig 3: Cylinder Block-To-Bedplate Sealant Bead Location
Courtesy of DAIMLERCHRYSLER CORP.

1 - CYLINDER BLOCK

2 - SEALANT BEAD LOCATION

CAUTION: The bedplate to cylinder block mating surface must be coated with sealant prior to installation. Failure to do so will cause severe oil leaks.

NOTE: The installation time to install the bedplate after the sealant has been applied is critical.

NOTE: Make sure that the bedplate and cylinder block sealing surfaces are clean and free of oil or other contaminants. Contaminants on the sealing surfaces may cause main bearing distortion and/or oil leaks.
Apply a 2.5mm (0.100 inch) bead of Mopar® Gen II Silicone Rubber Adhesive sealant (2) to the cylinder block-to-bedplate mating surface (1) as shown.
Coat the crankshaft main bearing journals with clean engine oil and position the bedplate onto the cylinder block.

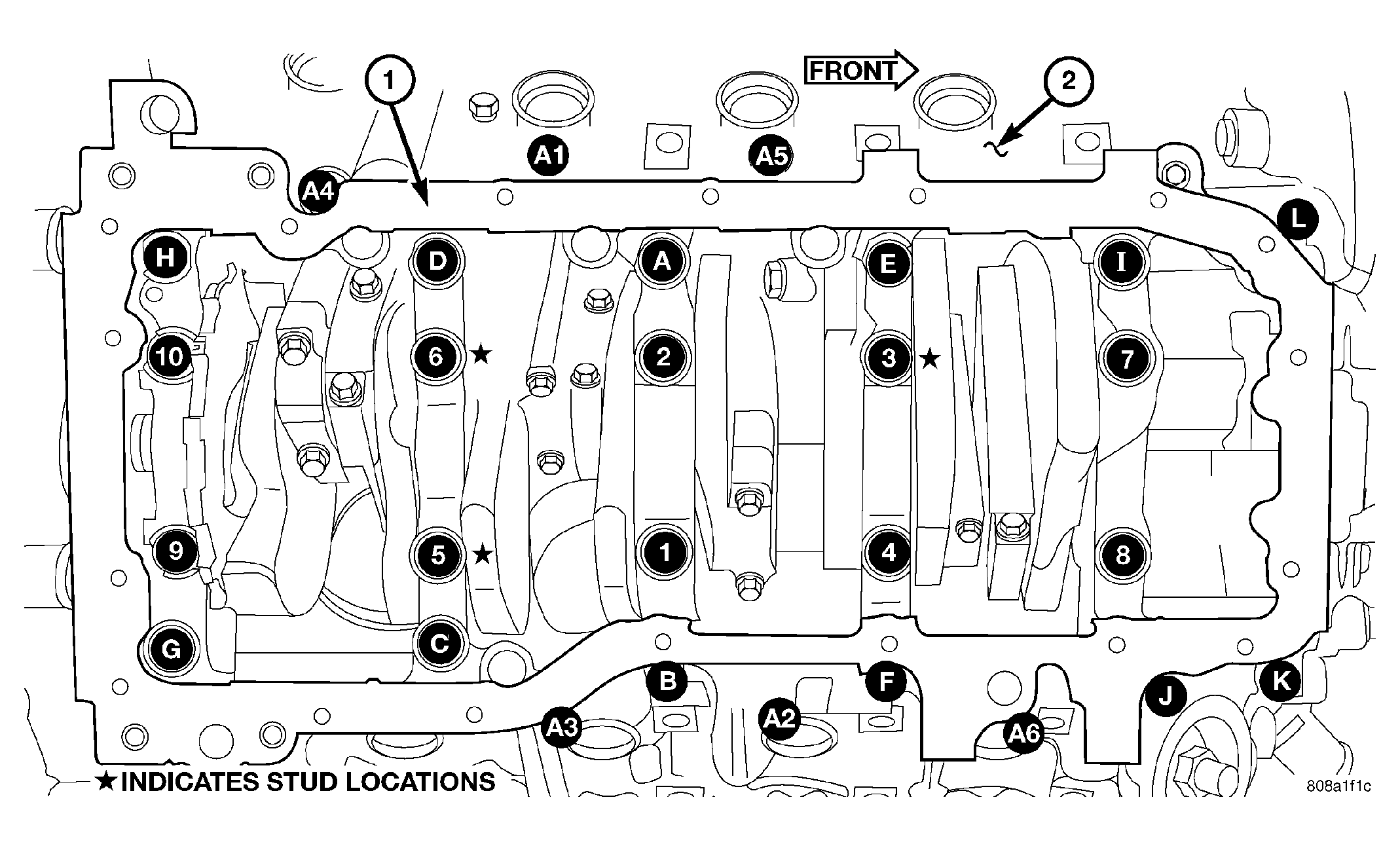

Fig 4: Bedplate Tightening Sequence
Courtesy of DAIMLERCHRYSLER CORP.

1 - BEDPLATE

2 - CYLINDER BLOCK

NOTE: Lubricate the bedplate retaining bolts with clean engine oil prior to installation.
Install the bedplate retaining bolts, making sure to place the stud bolts in the correct location, Torque the bolts in the sequence shown.
1. Tighten bolts A - L to 54 N.m (40 ft. lbs.)
2. Tighten bolts 1-10 to 2.8 N.m (25 in. lbs.)
3. Turn bolts 1-10 an additional 90°.
4. Tighten bolts A1- A6 to 27 N.m (20 ft. lbs.)
Measure crankshaft end play. (Refer to ENGINE/ENGINE BLOCK/CRANKSHAFT - STANDARD PROCEDURE) .
Install the connecting rods and measure side clearance. (Refer to ENGINE/ENGINE BLOCK/CONNECTING ROD BEARINGS - STANDARD PROCEDURE) .

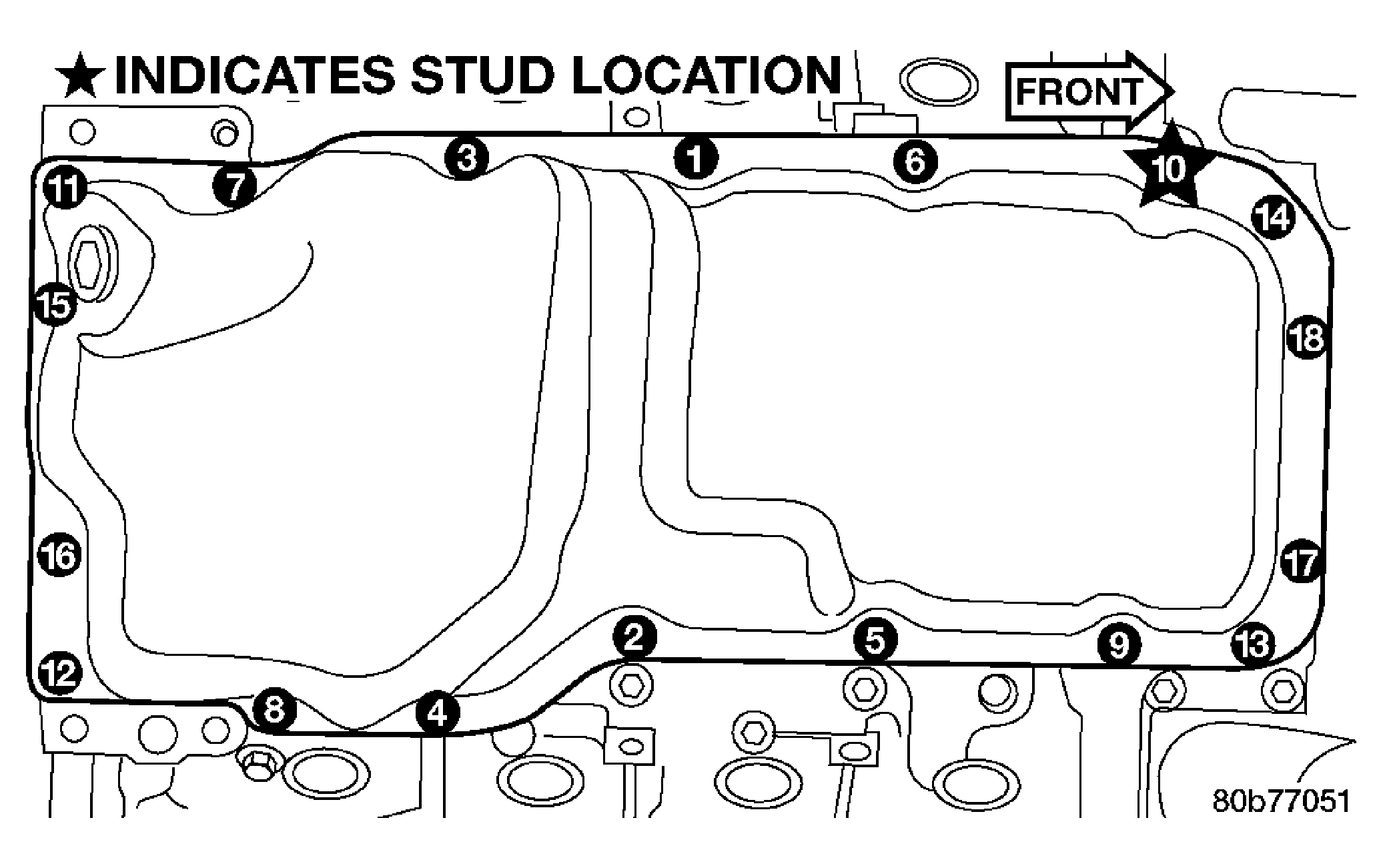

Fig 5: Oil Pan Bolt Tightening Sequence
Courtesy of DAIMLERCHRYSLER CORP.
Position the oil pan gasket/windage tray, using a new o-ring, install the oil pickup tube. Torque the bolt to 28N.n (20 ft. lbs.) torque the nuts to 28N.m (20 ft. lbs.).
Install the oil pan. Torque the retaining bolts to 15 N.m (11 ft. lbs.) in the sequence shown.
Install the engine (Refer to ENGINE - INSTALLATION) .
