Flex Plate: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - FLEXPLATE |
- Position the flexplate onto the crankshaft and install the bolts hand tight.

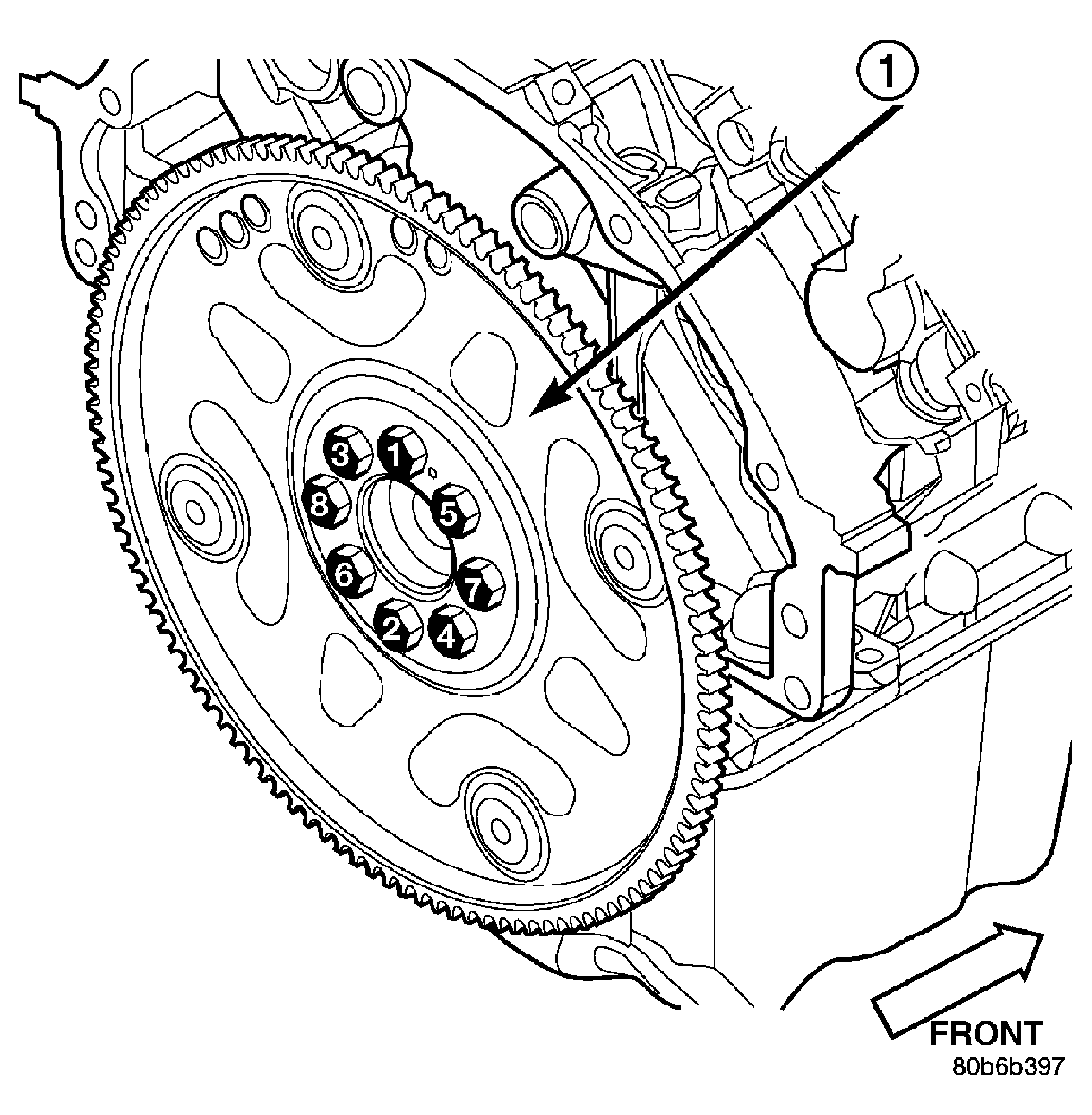

- Tighten the flexplate retaining bolts to 95 N.m (70 ft. lbs.) in the sequence shown. See Fig 1.
- Install the transmission. (Refer to appropriate AUTOMATIC TRANSMISSION - SERVICE INFORMATION article).
