Diagnostic Test
- 1) CHECK FOR A DTC C122B-BRAKE PEDAL FORCE SWITCH CIRCUIT PERFORMANCE NOTE: This DTC must be active for the results of this test to be valid.
Turn the ignition on.
With the scan tool, read and record DTC's.
With the scan tool, read and record Freeze Fame information.
With the scan tool, erase DTC's.
CAUTION: Ensure brake capability is available before road testing.Test drive vehicle above 24 k/mh (15 mph).
With the scan tool, read and record DTC's.
Does the scan tool display: C122B-BRAKE PEDAL FORCE SWITCH CIRCUIT PERFORMANCE?
Yes
- Go To step 2).
No
- Refer ABS-INTERMITTENT CONDITION .
- Perform ABS VERIFICATION TEST - VER 1 .
- 2) CHECK THE TERMINALS/CONNECTORS/WIRING HARNESS FOR DAMAGE
Check all related wiring for bruised, chafed, pierced, or partially broken wires.
Check all related connectors for broken, bent, pushed out, or corroded terminals.
Were any problems found?
Yes
- Repair as necessary.
- Perform ABS VERIFICATION TEST - VER 1 .
No
- Go To step 3).

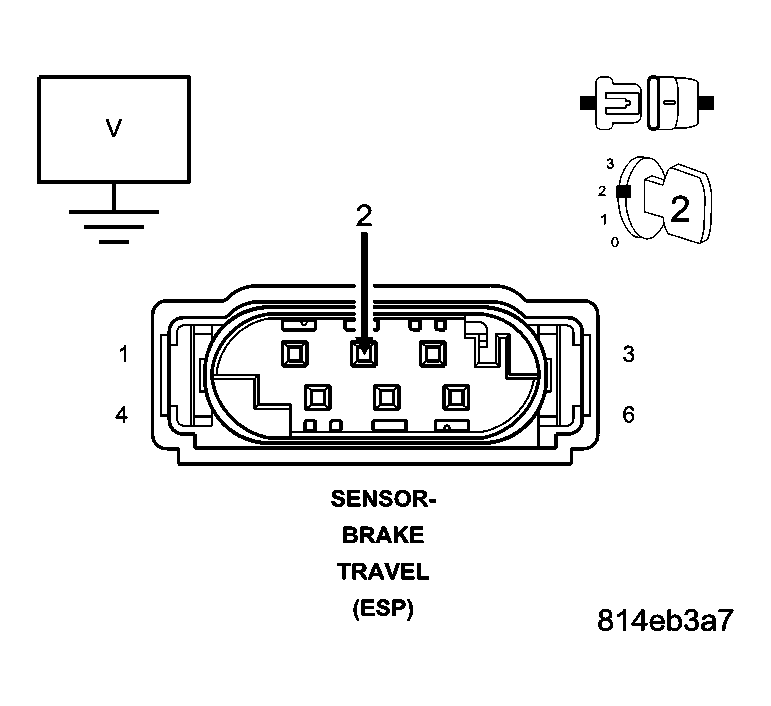

- 3) CHECK THE VOLTAGE ON THE (B134) BRAKE PEDAL FORCE SWITCH CLOSE CIRCUIT
Turn the ignition on.
Measure the voltage of the (B134) Brake Pedal Force Switch Close circuit by back probing at the Brake Travel Sensor harness connector.
Is the voltage approximately 6 volts?
Yes
- Go To step 7).
No
- Go To step 4).
- 4) CHECK THE (B134) BRAKE PEDAL FORCE SWITCH CLOSE CIRCUIT FOR A SHORT TO VOLTAGE
Turn the ignition off.
Disconnect the Anti-Lock Brake Module harness connector.
Disconnect the Brake Travel Sensor harness connector.
Turn the ignition on.

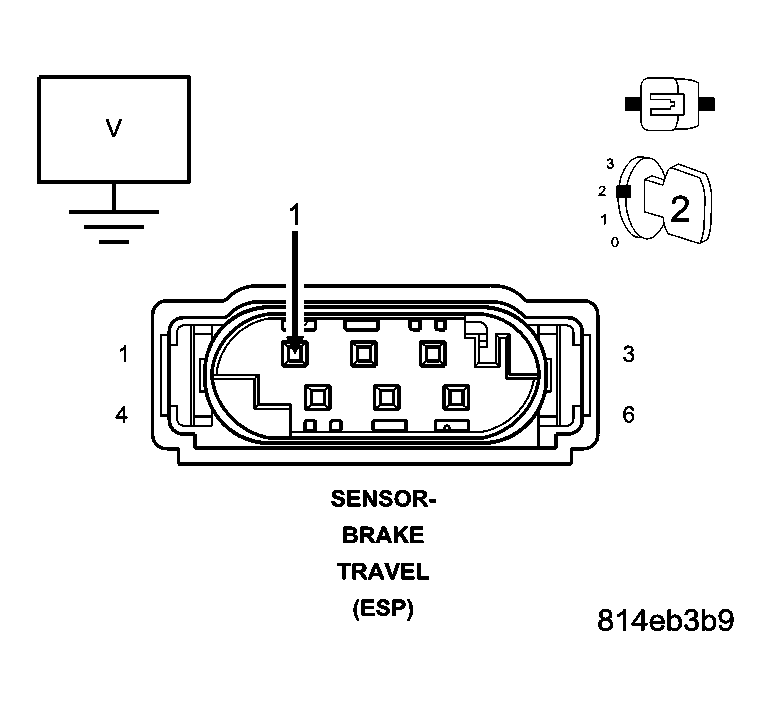

Measure the voltage of the (B134) Brake Pedal Force Switch Close circuit.
Is there any voltage present?
Yes
- Repair the (B134) Brake Pedal Force Switch Close circuit for a short to voltage.
- Perform ABS VERIFICATION TEST - VER 1 .
No
- Go To step 5).
- 5) CHECK THE (B134) BRAKE PEDAL FORCE SWITCH CLOSE CIRCUIT FOR A SHORT TO GROUND
Turn the ignition off.

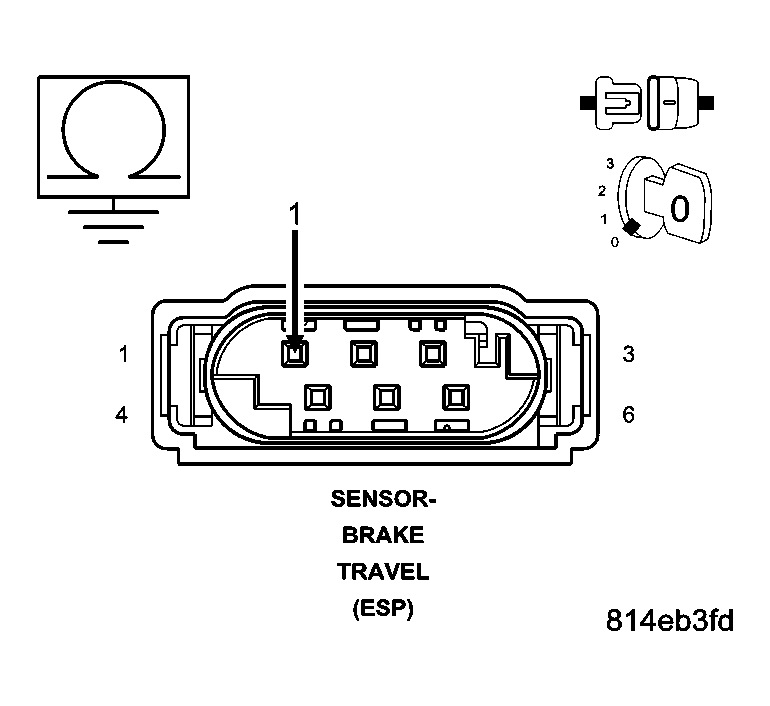

Measure the resistance between ground and the (B134) Brake Pedal Force Switch Close circuit.
Is the resistance below 5.0 ohms?
Yes
- Repair the (B134) Brake Pedal Force Switch Close circuit for a short to ground.
- Perform ABS VERIFICATION TEST - VER 1 .
No
- Go To step 6).

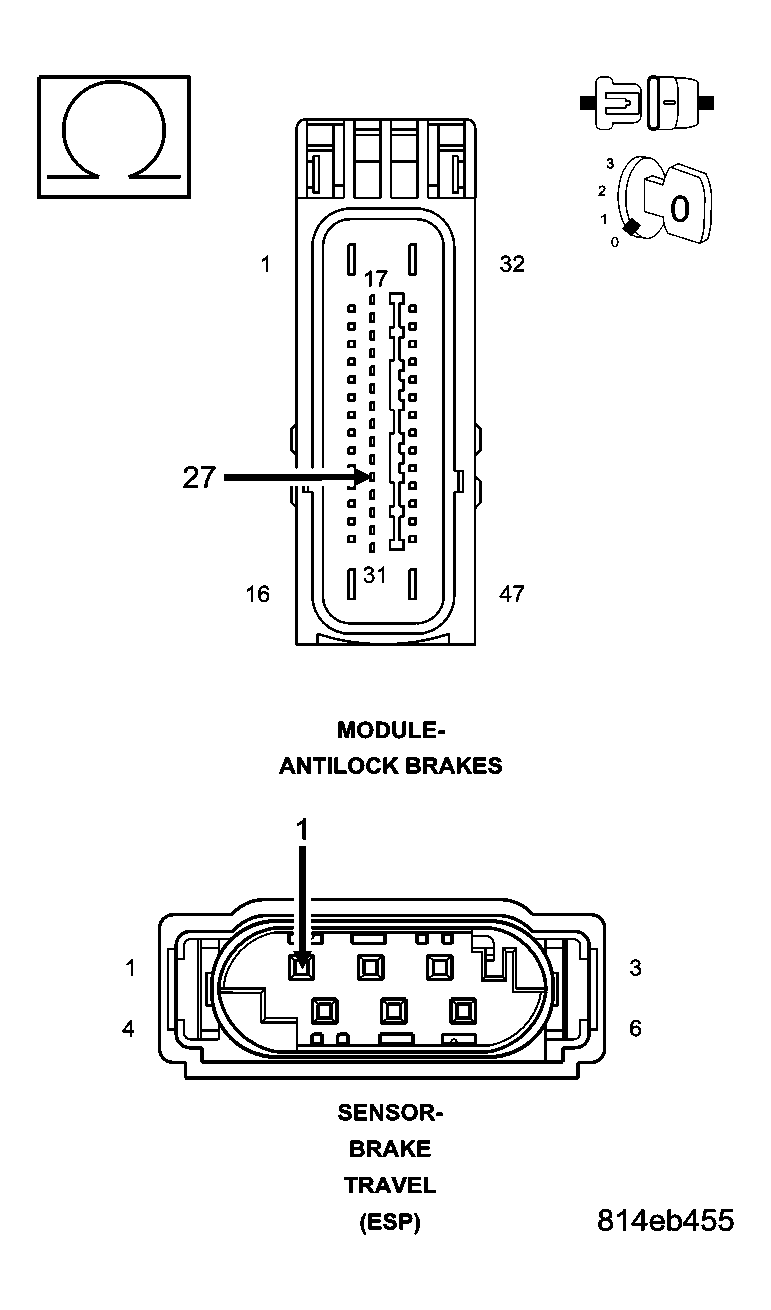

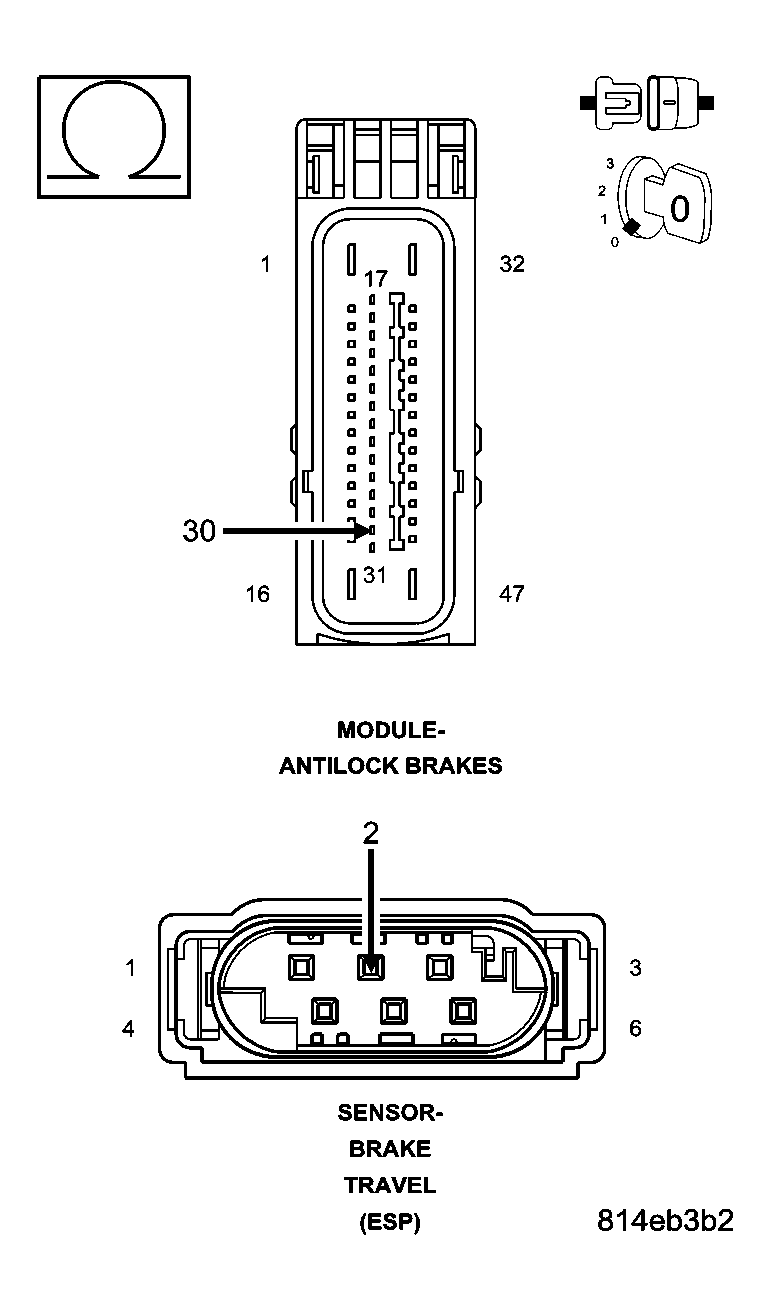

- 6) CHECK THE (B134) BRAKE PEDAL FORCE SWITCH CLOSE CIRCUIT FOR AN OPEN
Measure the resistance of the (B134) Brake Pedal Force Switch Close circuit.
Is the resistance below 5.0 ohms?
Yes
- Replace the Anti-Lock Brake Module in accordance with the Service Information.
- Perform ABS VERIFICATION TEST - VER 1 .
No
- Repair the (B134) Brake Pedal Force Switch Close circuit for an open.
- Perform ABS VERIFICATION TEST - VER 1 .
- 7) CHECK THE VOLTAGE ON THE (B135) BRAKE PEDAL FORCE SWITCH OPEN CIRCUIT
Measure the voltage of the (B135) Brake Pedal Force Switch Open circuit by back probing at the Brake Travel Sensor harness connector.
Is the voltage approximately 12 volts?
Yes
- Go To step 11).
No
- Go To step 8).
- 8) CHECK THE (B135) BRAKE PEDAL FORCE SWITCH OPEN CIRCUIT FOR A SHORT TO VOLTAGE
Turn the ignition off.
Disconnect the Anti-Lock Brake Module harness connector.
Disconnect the Brake Travel Sensor harness connector.
Turn the ignition on.

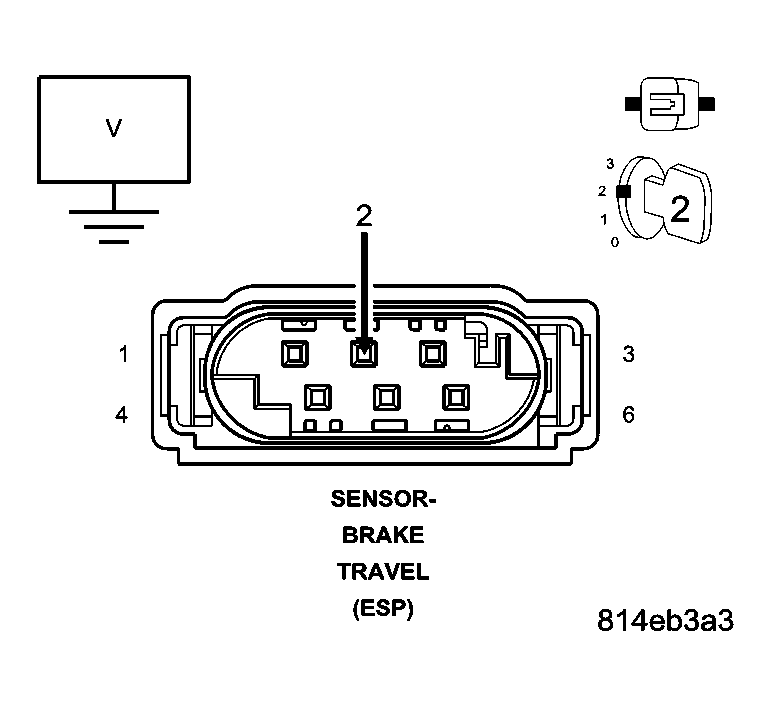

Measure the voltage of the (B135) Brake Pedal Force Switch Open circuit.
Is there any voltage present?
Yes
- Repair the (B135) Brake Pedal Force Switch Open circuit for a short to voltage.
- Perform ABS VERIFICATION TEST - VER 1 .
No
- Go To step 9).
- 9) CHECK THE (B135) BRAKE PEDAL FORCE SWITCH OPEN CIRCUIT FOR A SHORT TO GROUND
Turn the ignition off.

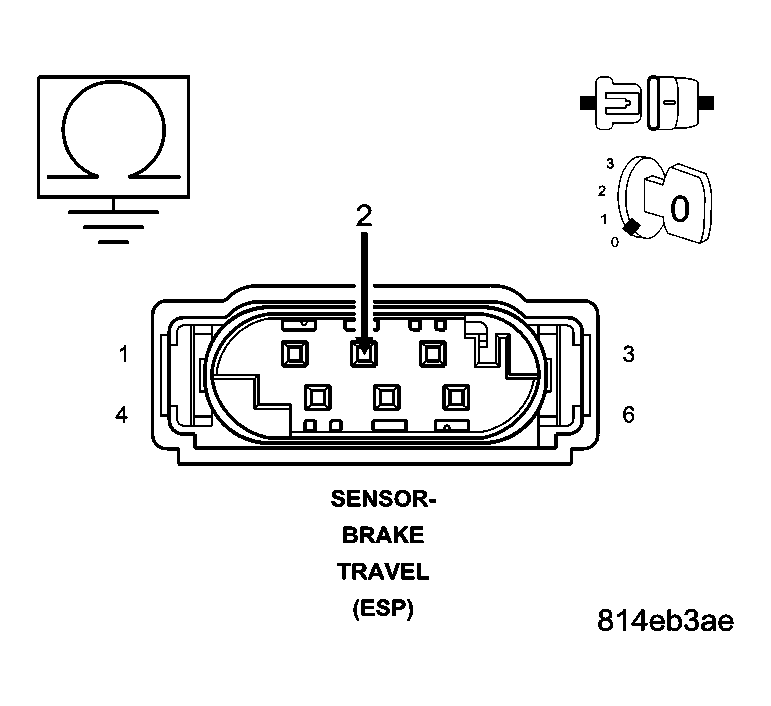

Measure the resistance between ground and the (B135) Brake Pedal Force Switch Open circuit.
Is the resistance below 5.0 ohms?
Yes
- Repair the (B135) Brake Pedal Force Switch Open circuit for a short to ground.
- Perform ABS VERIFICATION TEST - VER 1 .
No
- Go To step 10).
- 10) CHECK THE (B135) BRAKE PEDAL FORCE SWITCH OPEN CIRCUIT FOR AN OPEN
Measure the resistance of the (B135) Brake Pedal Force Switch Open circuit.
Is the resistance below 5.0 ohms?
Yes
- Replace the Anti-Lock Brake Module in accordance with the Service Information.
- Perform ABS VERIFICATION TEST - VER 1 .
No
- Repair the (B135) Brake Pedal Force Switch Open circuit for an open.
- Perform ABS VERIFICATION TEST - VER 1 .
- 11) CHECK THE VOLTAGE ON THE (B136) BRAKE PEDAL FORCE SWITCH SIGNAL CIRCUIT
Measure the voltage of the (B136) Brake Pedal Force Switch Signal circuit by back probing at the Brake Travel Sensor harness connector.
Is the voltage approximately 6 volts?
Yes
- Go To step 15).
No
- Go To step 12).
- 12) CHECK THE (B136) BRAKE PEDAL FORCE SWITCH SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE
Turn the ignition off.
Disconnect the Anti-Lock Brake Module harness connector.
Disconnect the Brake Travel Sensor harness connector.
Turn the ignition on.

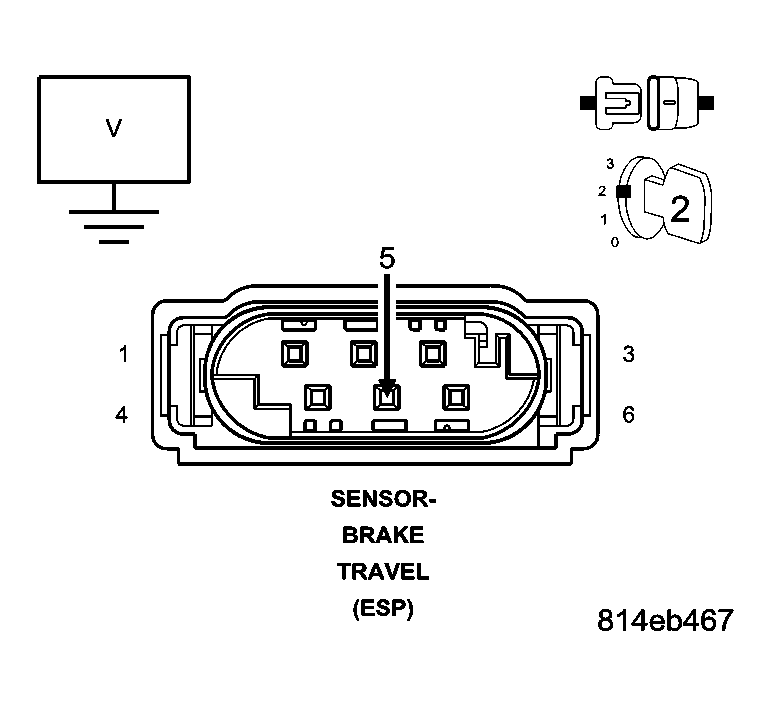

Measure the voltage of the (B136) Brake Pedal Force Switch Signal circuit.
Is there any voltage present?
Yes
- Repair the (B136) Brake Pedal Force Switch Signal circuit for a short to voltage.
- Perform ABS VERIFICATION TEST - VER 1 .
No
- Go To step 13).
- 13) CHECK THE (B136) BRAKE PEDAL FORCE SWITCH SIGNAL CIRCUIT FOR A SHORT TO GROUND
Turn the ignition off.

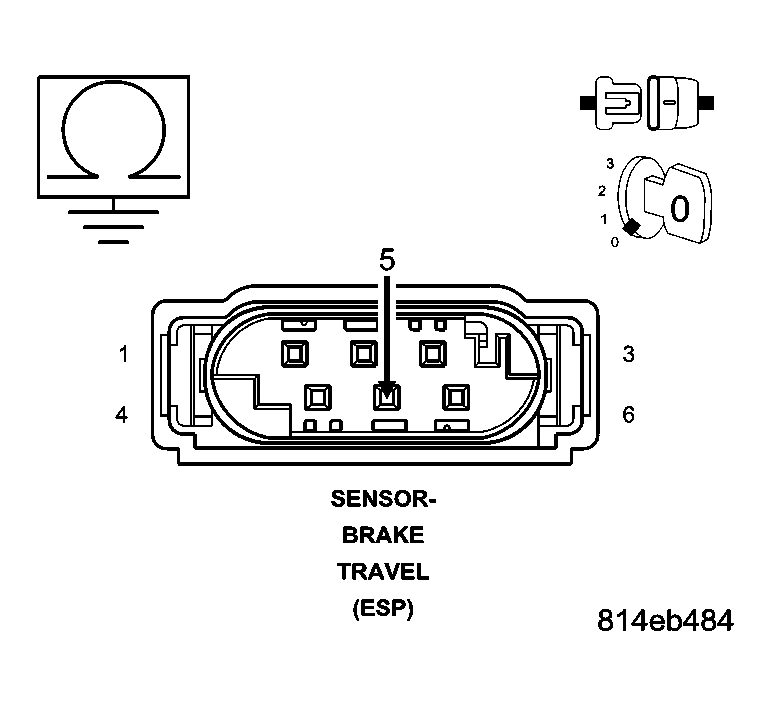

Measure the resistance between ground and the (B136) Brake Pedal Force Switch Signal circuit.
Is the resistance below 5.0 ohms?
Yes
- Repair the (B136) Brake Pedal Force Switch Signal circuit for a short to ground.
- Perform ABS VERIFICATION TEST - VER 1 .
No
- Go To step 14).

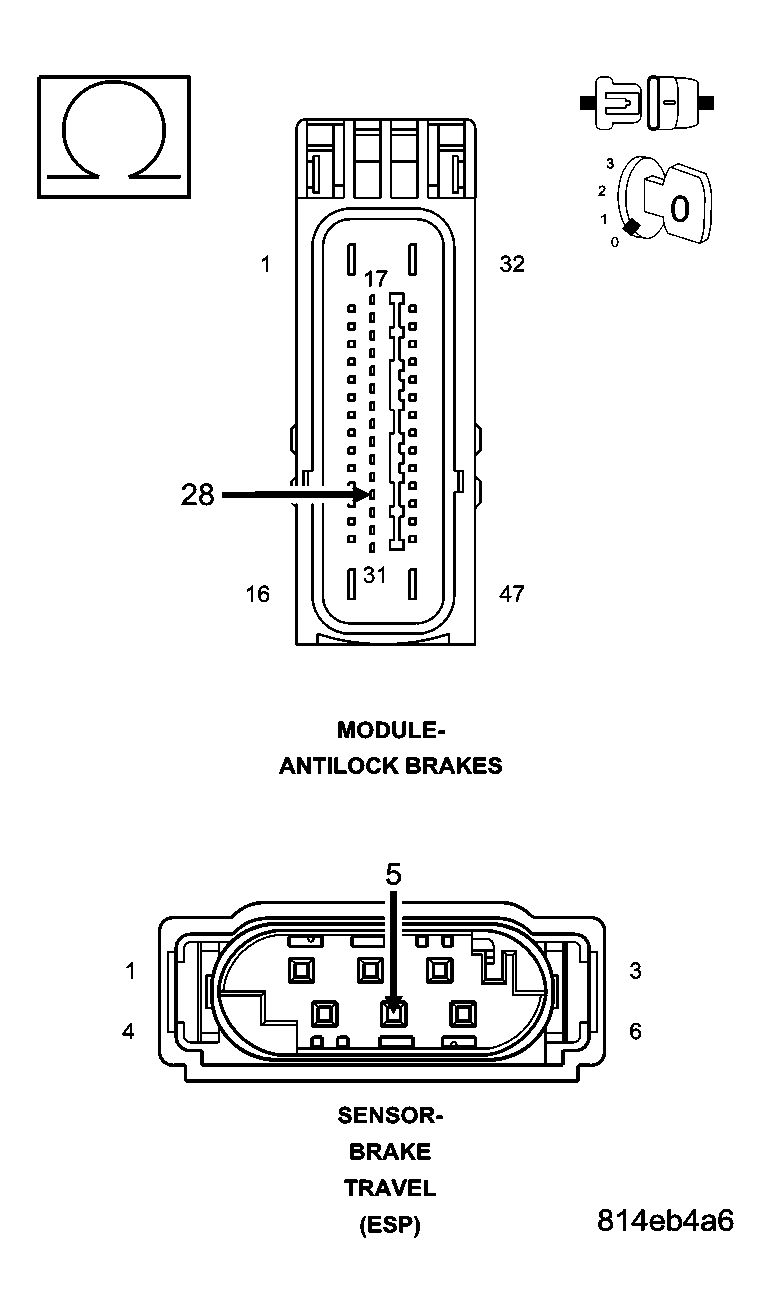

- 14) CHECK THE (B136) BRAKE PEDAL FORCE SWITCH SIGNAL CIRCUIT FOR AN OPEN
Measure the resistance of the (B136) Brake Pedal Force Switch Signal circuit.
Is the resistance below 5.0 ohms?
Yes
- Replace the Anti-Lock Brake Module in accordance with the Service Information.
- Perform ABS VERIFICATION TEST - VER 1 .
No
- Repair the (B136) Brake Pedal Force Switch Signal circuit for an open.
- Perform ABS VERIFICATION TEST - VER 1 .
- 15) CHECK THE VOLTAGE ON THE (B134) BRAKE PEDAL FORCE SWITCH CLOSE CIRCUIT
Turn the ignition on.
Measure the voltage of the (B134) Brake Pedal Force Switch Close circuit by back probing at the Brake Travel Sensor harness connector.
Depress and hold the brake pedal.
Is the voltage approximately 12 volts?
Yes
- Go To step 16).
No
- Replace the Brake Travel Sensor in accordance with the Service Information.
- Perform ABS VERIFICATION TEST - VER 1 .
- 16) CHECK THE VOLTAGE ON THE (B135) BRAKE PEDAL FORCE SWITCH OPEN CIRCUIT
Measure the voltage of the (B135) Brake Pedal Force Switch Open circuit by back probing at the Brake Travel Sensor harness connector.
Depress and hold the brake pedal.
Is the voltage approximately 6 volts?
Yes
- Go To step 17).
No
- Replace the Brake Travel Sensor in accordance with the Service Information.
- Perform ABS VERIFICATION TEST - VER 1 .
- 17) CHECK THE VOLTAGE ON THE (B136) BRAKE PEDAL FORCE SWITCH SIGNAL CIRCUIT
Measure the voltage of the (B136) Brake Pedal Force Switch Signal circuit by back probing at the Brake Travel Sensor harness connector.
Depress and hold the brake pedal.
Is the voltage approximately 6 volts?
Yes
- Replace the Anti-Lock Brake Module in accordance with the Service Information.
- Perform ABS VERIFICATION TEST - VER 1 .
No
- Replace the Brake Travel Sensor in accordance with the Service Information.
- Perform ABS VERIFICATION TEST - VER 1 .
