Diagnostic Test

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. 1)  CHECK FOR A DTC C121D-BRAKE PRESSURE SENSOR CIRCUIT
    NOTE: This DTC must be active for the results of this test to be valid.

    Turn the ignition on.

    With the scan tool, read and record DTC's.

    With the scan tool, read and record Freeze Fame information.

    With the scan tool, erase DTC's.

    Start the engine.

    Depress and release the brake pedal.

    With the scan tool, read and record DTC's.

    Does the scan tool display: C121D-BRAKE PRESSURE SENSOR CIRCUIT?

    Yes

    1. Go To step  2).

    No

    1. Refer ABS-INTERMITTENT CONDITION .
    2. Perform ABS VERIFICATION TEST - VER 1 .
  2. 2)  CHECK THE TERMINALS/CONNECTORS/WIRING HARNESS FOR DAMAGE

    Check all related wiring for bruised, chafed, pierced, or partially broken wires.

    Check all related connectors for broken, bent, pushed out, or corroded terminals.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Go To step  3).
  3. 3)  CHECK FOR AIR IN BRAKE SYSTEM AND WORN MECHANICAL COMPONENTS
    NOTE: Before continuing the brake system must be bled to verify there is no air in the brake system.
    NOTE: Visually inspect for worn brake linings, undersized rotors, binding or frozen calipers.

    Was there any air in the brake system or base brake issues found?

    Yes

    1. Repair as needed.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Go To step  4).
  4. 4)  CHECK THE VOLTAGE ON THE (B83) BRAKE PRESSURE SENSOR SUPPLY CIRCUIT

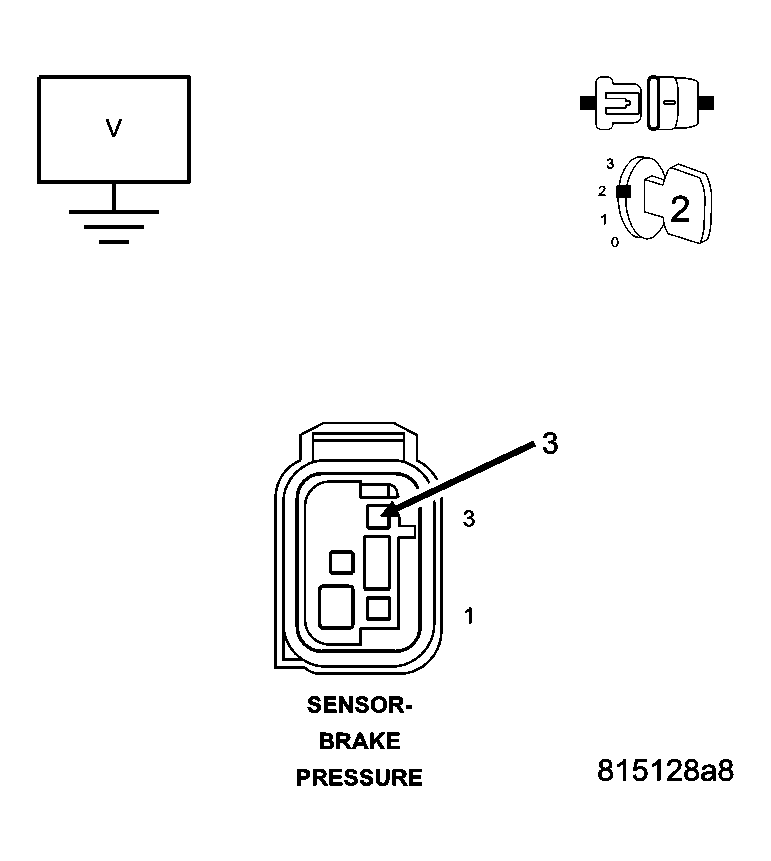

    Fig 1: Checking Brake Pressure Sensor Supply Circuit
    GC0026934Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the Brake Pressure Sensor harness connector.

    Turn the ignition on.

    Measure the voltage of the (B83) Brake Pressure Sensor Supply circuit.

    Is the voltage above 4 volts?

    Yes

    1. Go To step  8).

    No

    1. Go To step  5).
  5. 5)  CHECK THE (B83) BRAKE PRESSURE SENSOR SUPPLY CIRCUIT FOR SHORT TO GROUND

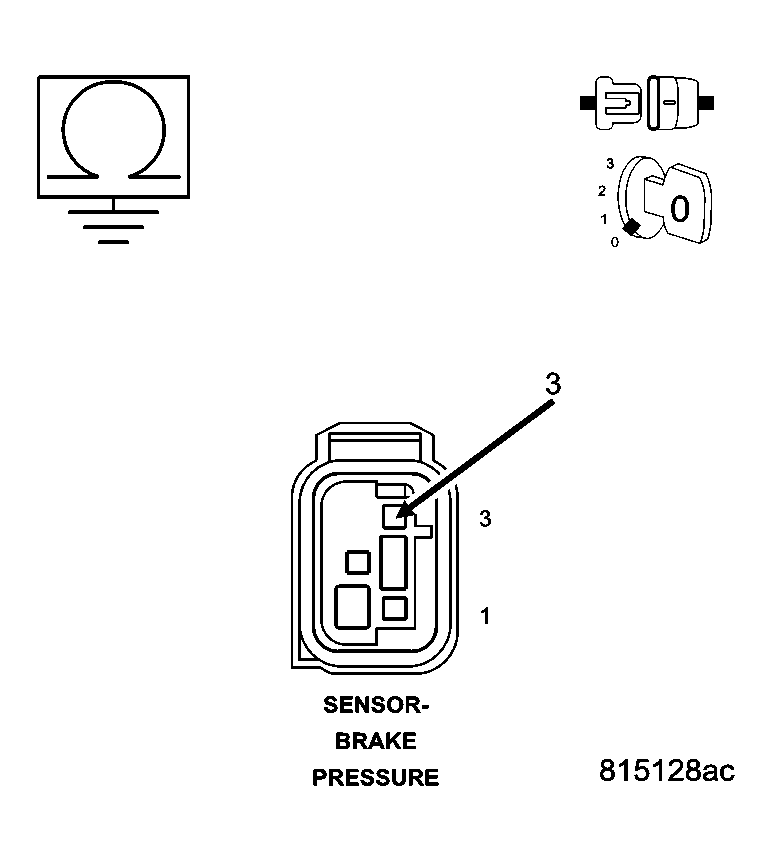

    Fig 2: Checking Brake Pressure Sensor Supply Circuit
    GC0026935Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the Anti-Lock Brake Module harness connector.

    Disconnect the Brake Pressure Sensor harness connector.

    Measure the resistance between ground and the (B83) Brake Pressure Sensor Supply circuit.

    Is the resistance below 5.0 ohms?

    Yes

    1. Repair the (B83) Brake Pressure Sensor Supply circuit for a short to ground.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Go To step  6).
  6. 6)  CHECK THE (B83) BRAKE PRESSURE SENSOR SUPPLY CIRCUIT FOR SHORT TO VOLTAGE

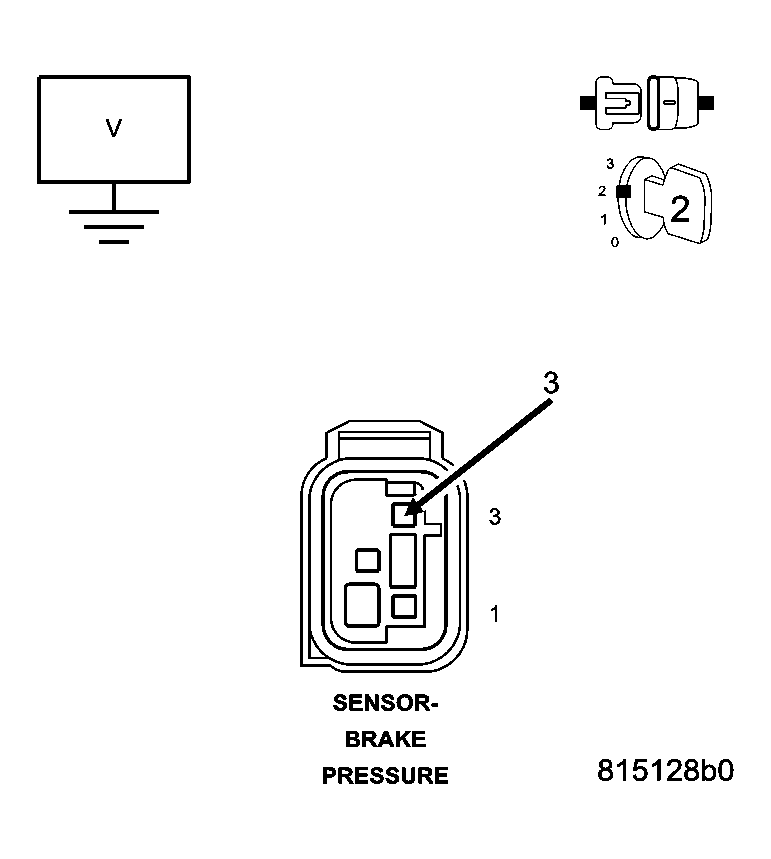

    Fig 3: Checking Brake Pressure Sensor Supply Circuit
    GC0026936Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition on.

    Measure the voltage of the (B83) Brake Pressure Sensor Supply circuit.

    Is there any voltage present?

    Yes

    1. Repair the (B83) Brake Pressure Sensor Supply circuit for a short to voltage.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Go To step  7).
  7. 7)  CHECK THE (B83) BRAKE PRESSURE SENSOR SUPPLY CIRCUIT FOR AN OPEN

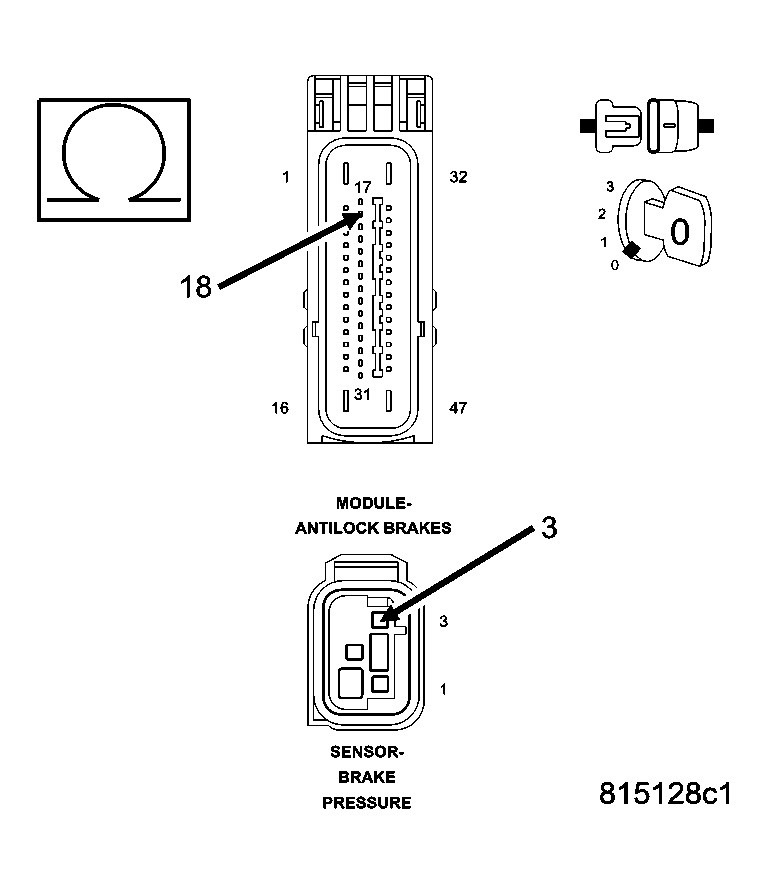

    Fig 4: Checking Brake Pressure Sensor Supply Circuit
    GC0026937Courtesy of DAIMLERCHRYSLER CORP.

    Measure the resistance of the (B83) Brake Pressure Sensor Supply circuit.

    Is the resistance below 5.0 ohms?

    Yes

    1. Replace the Anti-Lock Brake Module in accordance with the Service Information.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Repair the (B83) Brake Pressure Sensor Supply circuit for an open.
    2. Perform ABS VERIFICATION TEST - VER 1 .
  8. 8)  CHECK THE RESISTANCE TO GROUND ON THE (B986) BRAKE PRESSURE RETURN CIRCUIT

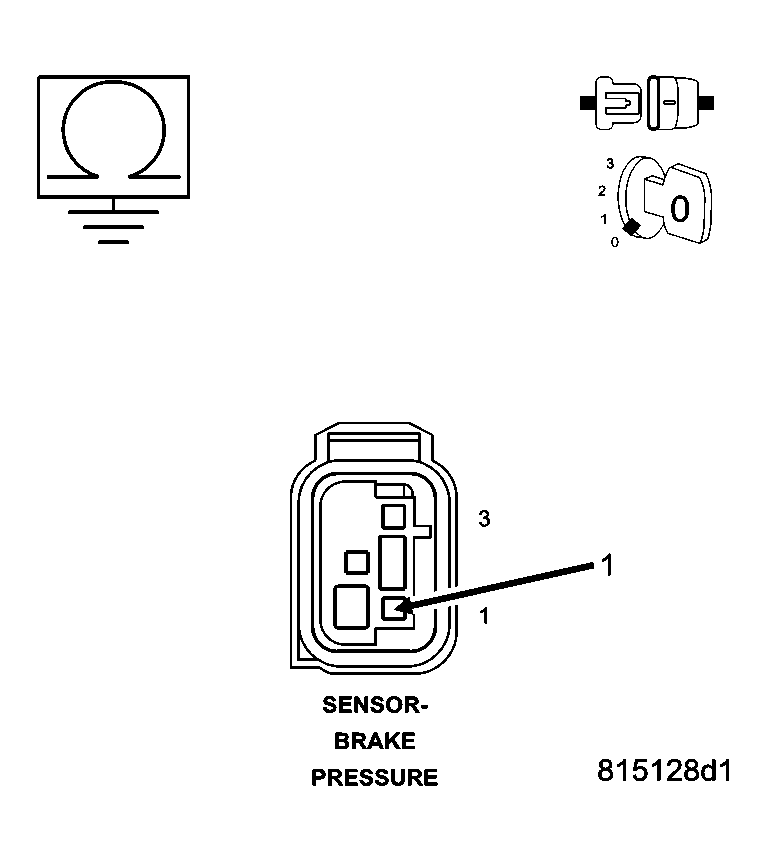

    Fig 5: Checking Brake Pressure Sensor Return Circuit
    GC0026938Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Measure the resistance between the (B986) Brake Pressure Return Circuit and ground.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go To step  12).

    No

    1. Go To step  9).
  9. 9)  CHECK THE (B986) BRAKE PRESSURE SENSOR RETURN CIRCUIT FOR SHORT TO GROUND

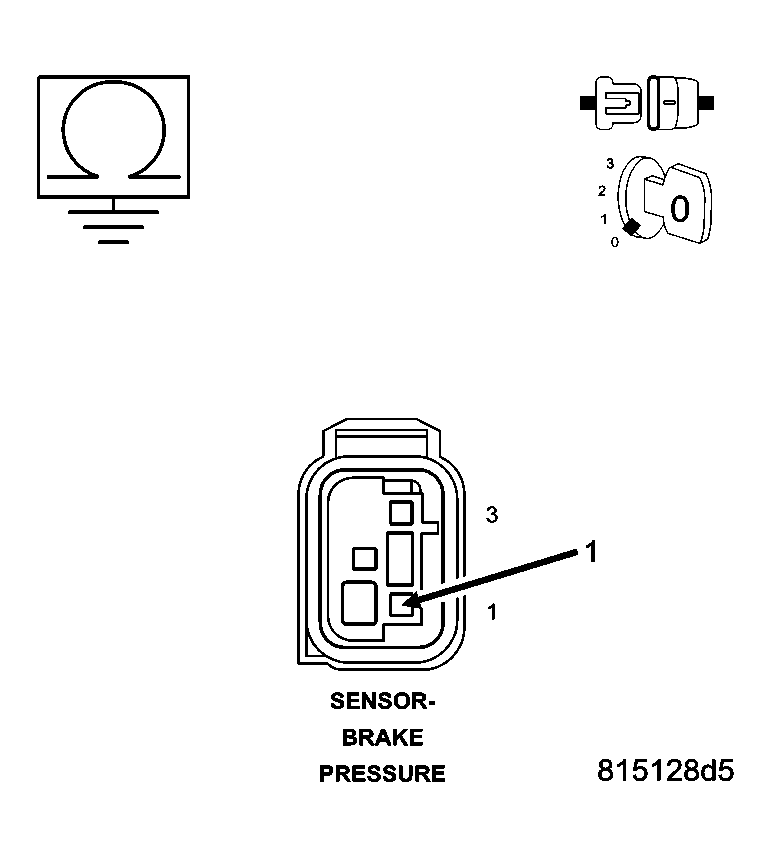

    Fig 6: Checking Brake Pressure Sensor Return Circuit
    GC0026939Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the Anti-Lock Brake Module harness connector.

    Measure the resistance between ground and the (B986) Brake Pressure Sensor Return circuit.

    Is the resistance below 5.0 ohms?

    Yes

    1. Repair the (B986) Brake Pressure Sensor Return circuit for a short to ground.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Go To step  10).
  10. 10)  CHECK THE (B986) BRAKE PRESSURE SENSOR RETURN CIRCUIT FOR SHORT TO VOLTAGE

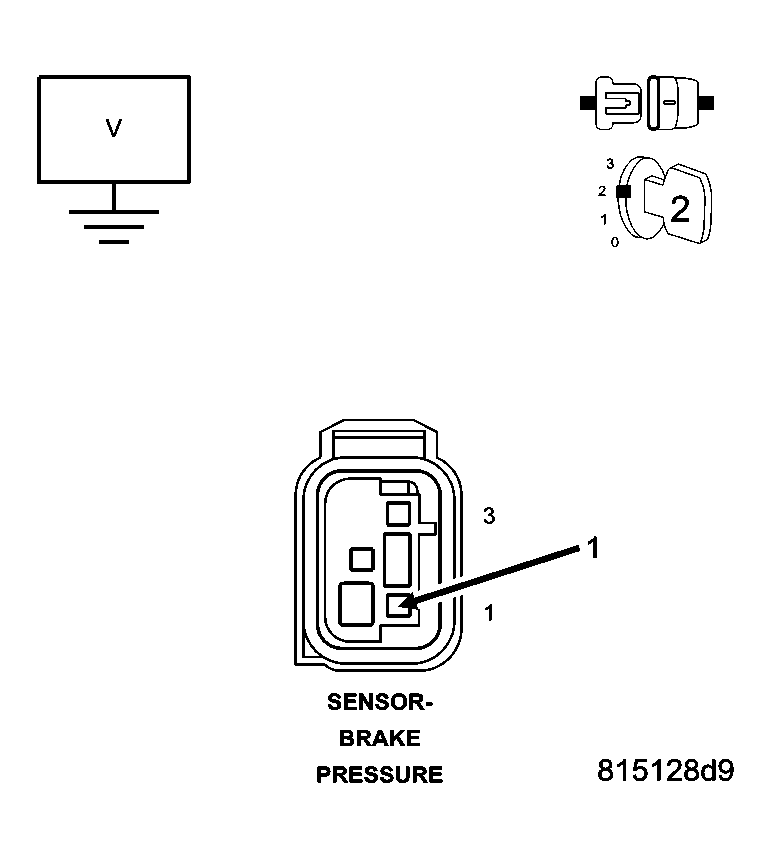

    Fig 7: Checking Brake Pressure Sensor Return Circuit
    GC0026940Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition on.

    Measure the voltage of the (B986) Brake Pressure Sensor Return circuit.

    Is there any voltage present?

    Yes

    1. Repair the (B986) Brake Pressure Sensor Return circuit for a short to voltage.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Go To step  11).
  11. 11)  CHECK THE (B986) BRAKE PRESSURE SENSOR RETURN CIRCUIT FOR AN OPEN

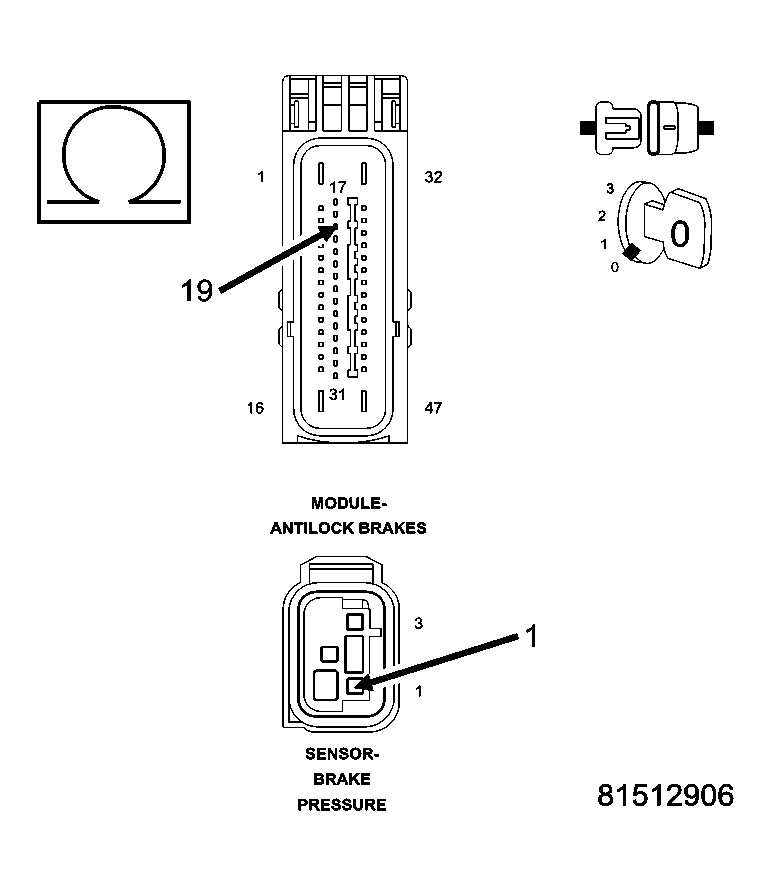

    Fig 8: Checking Brake Pressure Sensor Return Circuit
    GC0026941Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Measure the resistance of the (B986) Brake Pressure Sensor Return circuit.

    Is the resistance below 5.0 ohms?

    Yes

    1. Replace the Anti-Lock Brake Module in accordance with Service Information.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Repair the (B986) Brake Pressure Sensor Return circuit for an open.
    2. Perform ABS VERIFICATION TEST - VER 1 .
  12. 12)  CHECK THE (B84) BRAKE PRESSURE SENSOR SIGNAL CIRCUIT OUTPUT

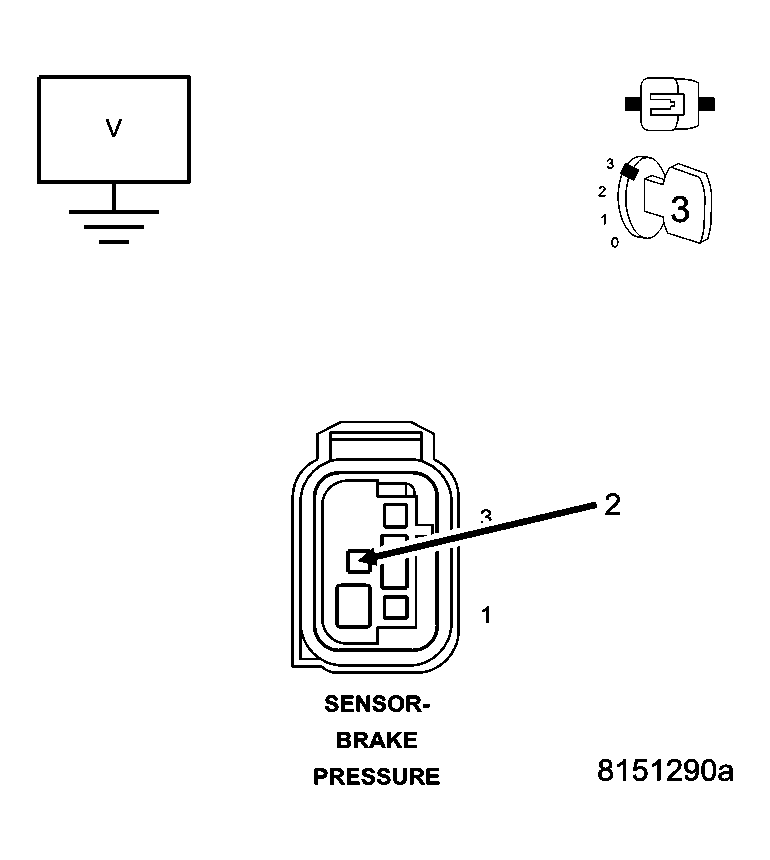

    Fig 9: Checking Brake Pressure Sensor Signal Circuit
    GC0026942Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Reconnect the Anti-Lock Brake Module harness connector.

    Reconnect the Brake Pressure Sensor harness connector.

    Start the engine.

    While back probing, measure the voltage of the (B84) Brake Pressure Sensor Signal circuit at the Brake Pressure Sensor harness connector while depressing and releasing the brake pedal.

    Is the voltage between 0.50 volts to 4.55 volts?

    Yes

    1. Replace the Anti-Lock Brake Module in accordance with the Service Information.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Go To step  13).
  13. 13)  CHECK THE (B84) BRAKE PRESSURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND

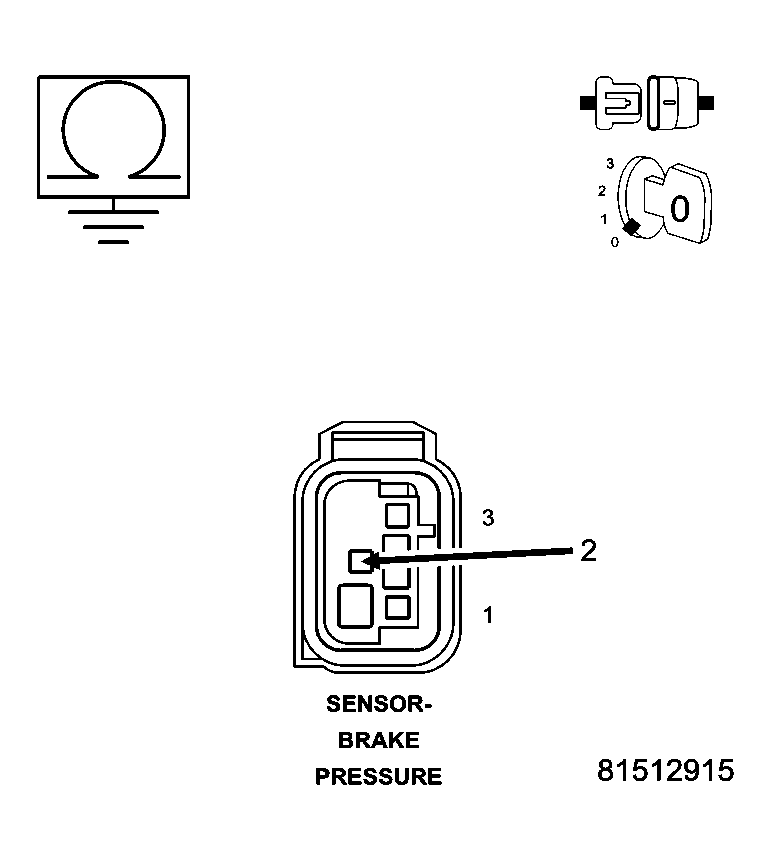

    Fig 10: Checking Brake Pressure Sensor Signal Circuit
    GC0026943Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the Anti-Lock Brake Module harness connector.

    Disconnect the Brake Pressure Sensor harness connector.

    Measure the resistance between ground and the (B84) Brake Pressure Sensor Signal circuit.

    Is the resistance below 5.0 ohms?

    Yes

    1. Repair the (B84) Brake Pressure Sensor Signal circuit for a short to ground.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Go To step  14).
  14. 14)  CHECK THE (B84) BRAKE PRESSURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

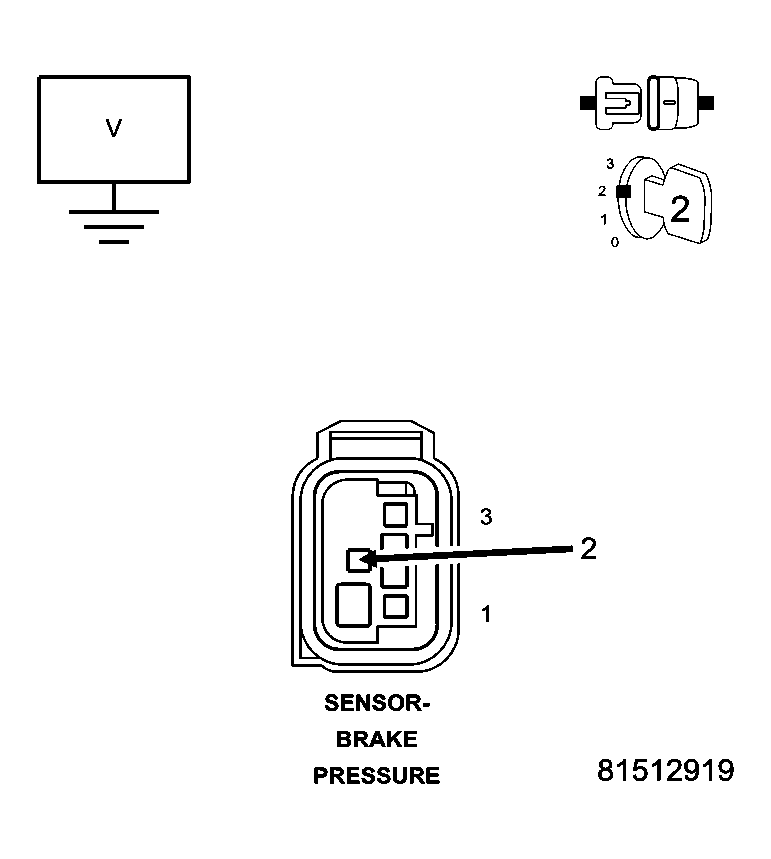

    Fig 11: Checking Brake Pressure Sensor Signal Circuit
    GC0026944Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition on.

    Measure the voltage of the (B84) Brake Pressure Sensor Signal circuit.

    Is there any voltage present?

    Yes

    1. Repair the (B84) Brake Pressure Sensor Signal circuit for a short to voltage.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Go To step  15).
  15. 15)  CHECK THE (B84) BRAKE PRESSURE SENSOR SIGNAL CIRCUIT FOR AN OPEN

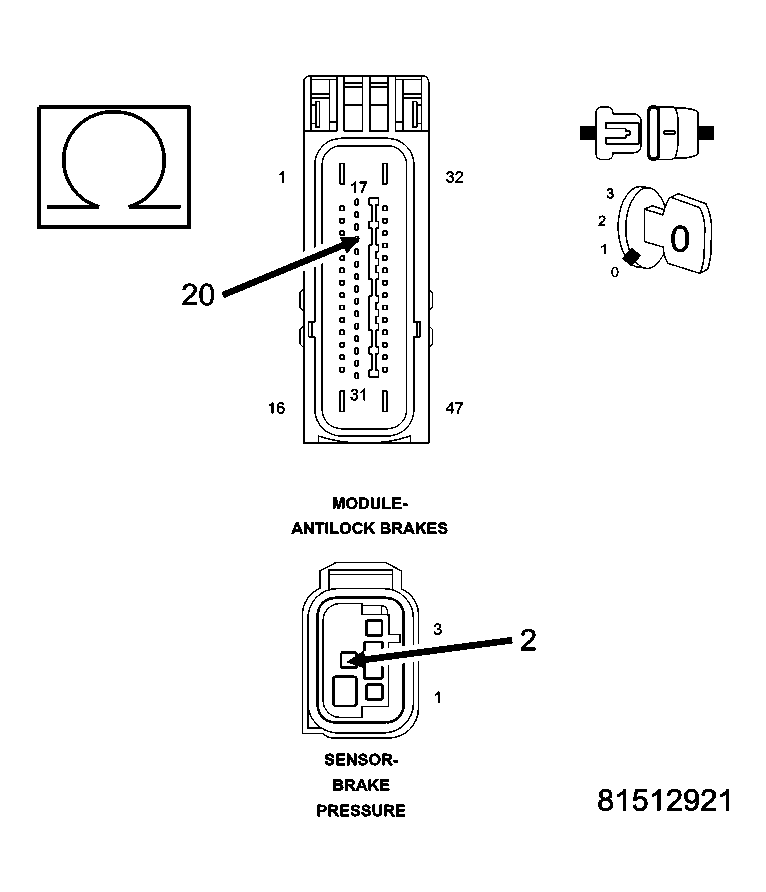

    Fig 12: Checking Brake Pressure Sensor Signal Circuit
    GC0026945Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Measure the resistance of the (B84) Brake Pressure Sensor Signal circuit.

    Is the resistance below 5.0 ohms?

    Yes

    1. Replace the Brake Pressure Sensor in accordance with the Service Information.
    2. Perform ABS VERIFICATION TEST - VER 1 .

    No

    1. Repair the (B137) Brake Pressure Sensor Signal circuit for an open.
    2. Perform ABS VERIFICATION TEST - VER 1 .
