Rear Axle - C213RE: Differential-ELSD: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Solenoid Connector
GC0028514Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove differential cover.
  2. Remove axle shafts.
  3. Remove ABS sensor from housing.
  4. Remove solenoid valve connector (1) from ELSD solenoid valve (2).

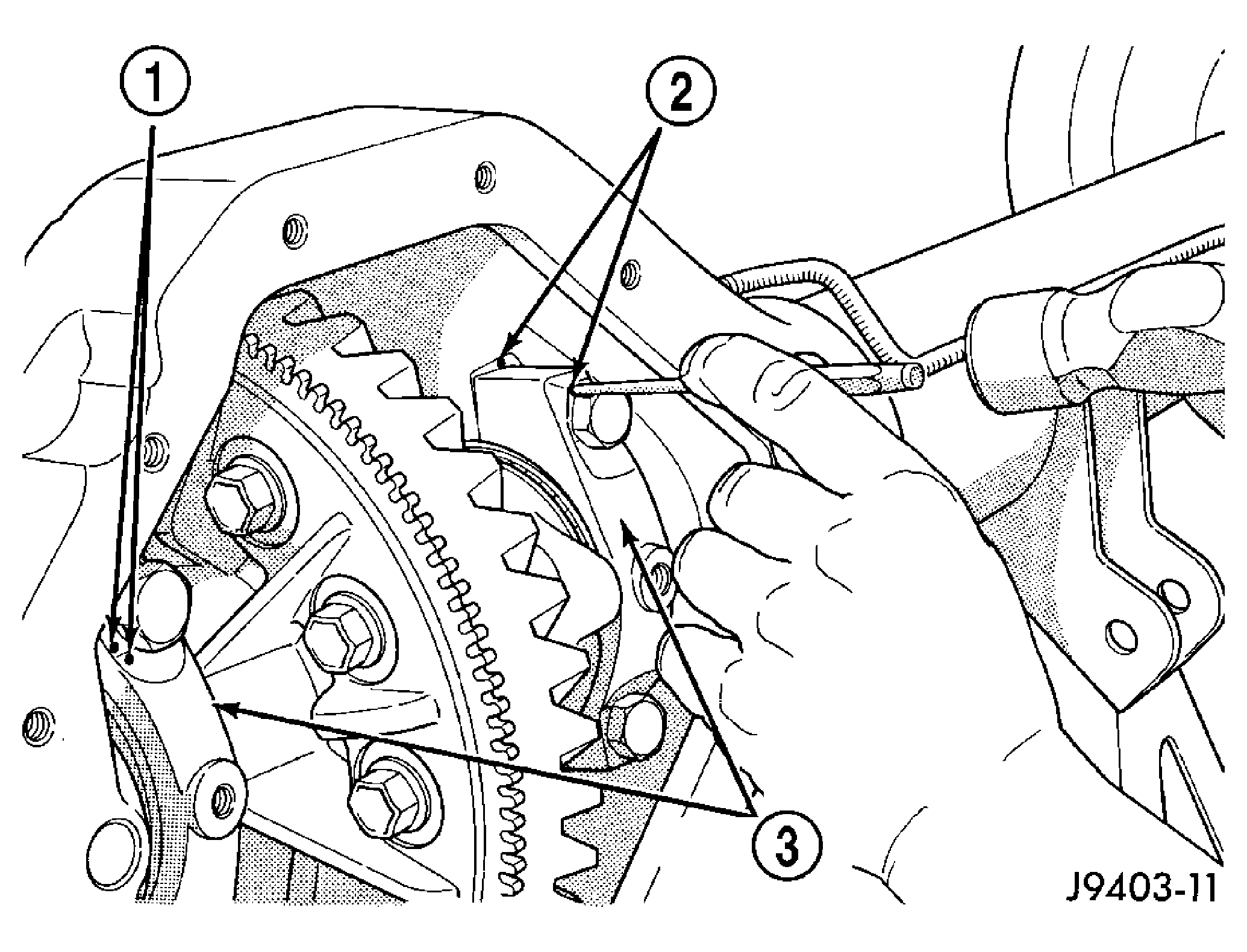

    Fig 2: Mark Differential Housing And Bearing Caps
    GC0028697Courtesy of DAIMLERCHRYSLER CORP.
  5. Mark differential housing and bearing caps (3) for installation reference.

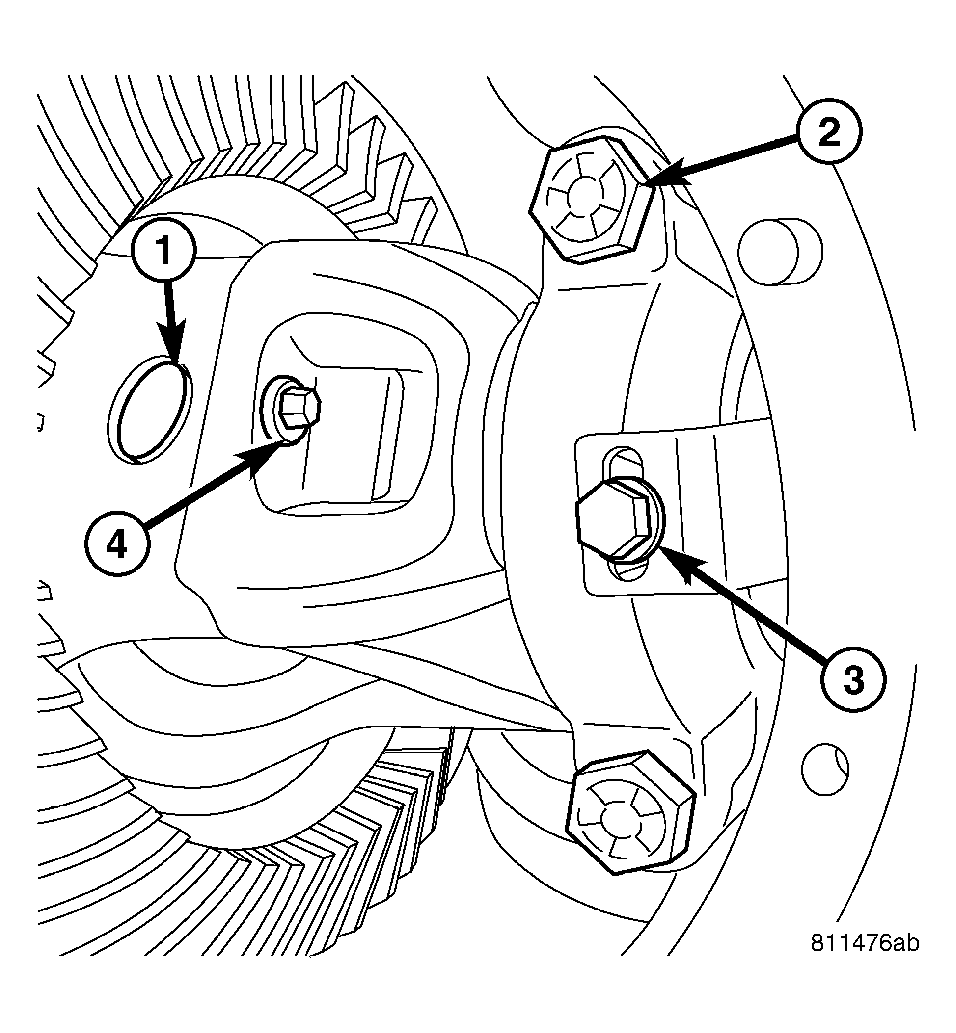

    Fig 3: Remove Bearing Adjuster Lock Bolt From Bearing Caps
    GC0028698Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove bearing adjuster lock bolt (3) from bearing caps.
    Fig 4: Threaded Adjuster Tool
    GC0028567Courtesy of DAIMLERCHRYSLER CORP.
  7. Loosen differential bearing cap bolts.
  8. Loosen differential bearing adjusters through the axle tubes (1) with Wrench C-4164 (3).
  9. Hold differential case while removing bearing caps and adjusters.
  10. Remove differential case and tag differential bearing cups and adjusters to indicate location.
  11. Clean housing cavity with flushing oil, light engine oil or a lint free cloth.
    NOTE: Do not use steam, kerosene or gasoline to clean the housing.
