Rear Axle - C213RE: Differential-ELSD: Operation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

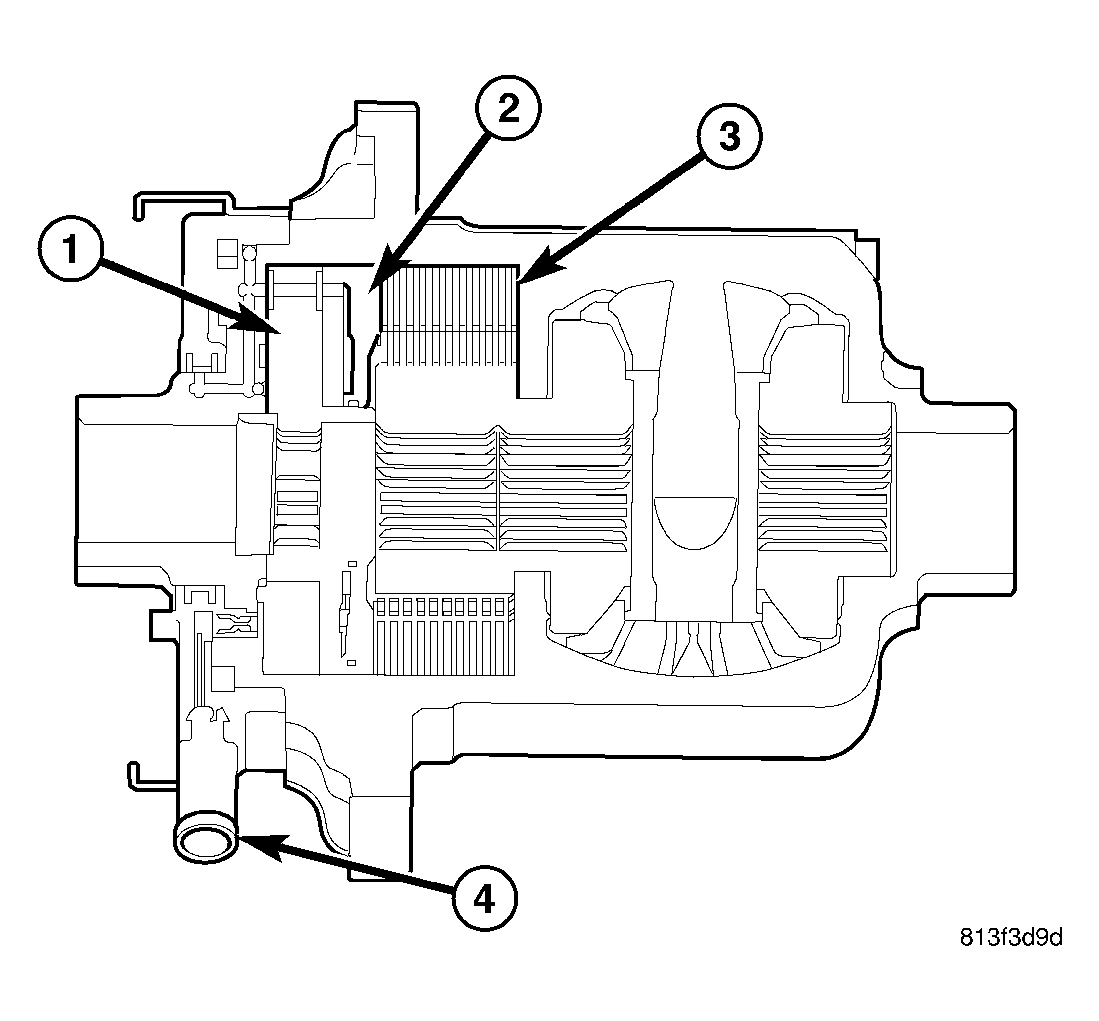

A gerotor pump (1) creates oil flow through the filter (4) whenever left and right wheels spin at different speeds and the solenoid valve is activated. The oil flow is restricted by a Pressure Regulating Valve (PRV) to build oil pressure. Pressurized oil is then fed to a piston (2) chamber. The piston compresses the clutch pack (3) providing additional torque to the lower speed wheel.
When the antilock brakes are activated the differential solenoid is switched off and pressure is bleed off the clutch pack.
