Differential Cover: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

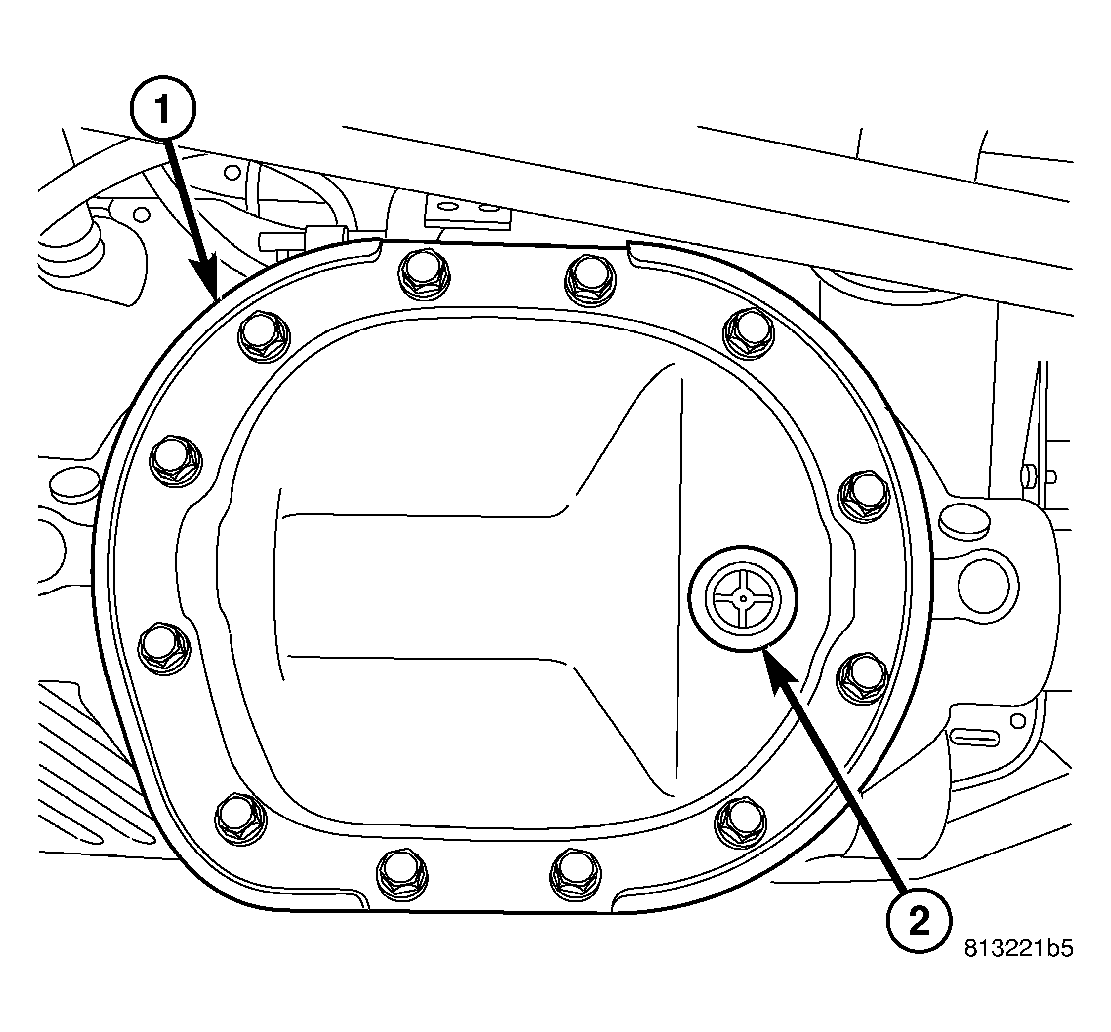

Fig 1: ELSD Differential Cover
GC0028640Courtesy of DAIMLERCHRYSLER CORP.
  1. With vehicle in neutral, position on hoist.
  2. Remove fill plug (2).
  3. Remove differential cover (1).
  4. Drain fluid.
