Bearings-Differential Case: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.
CAUTION:
Do not disturb the ELSD pump after bearing has been removed. Failure to follow these instructions will damage the pump seals.

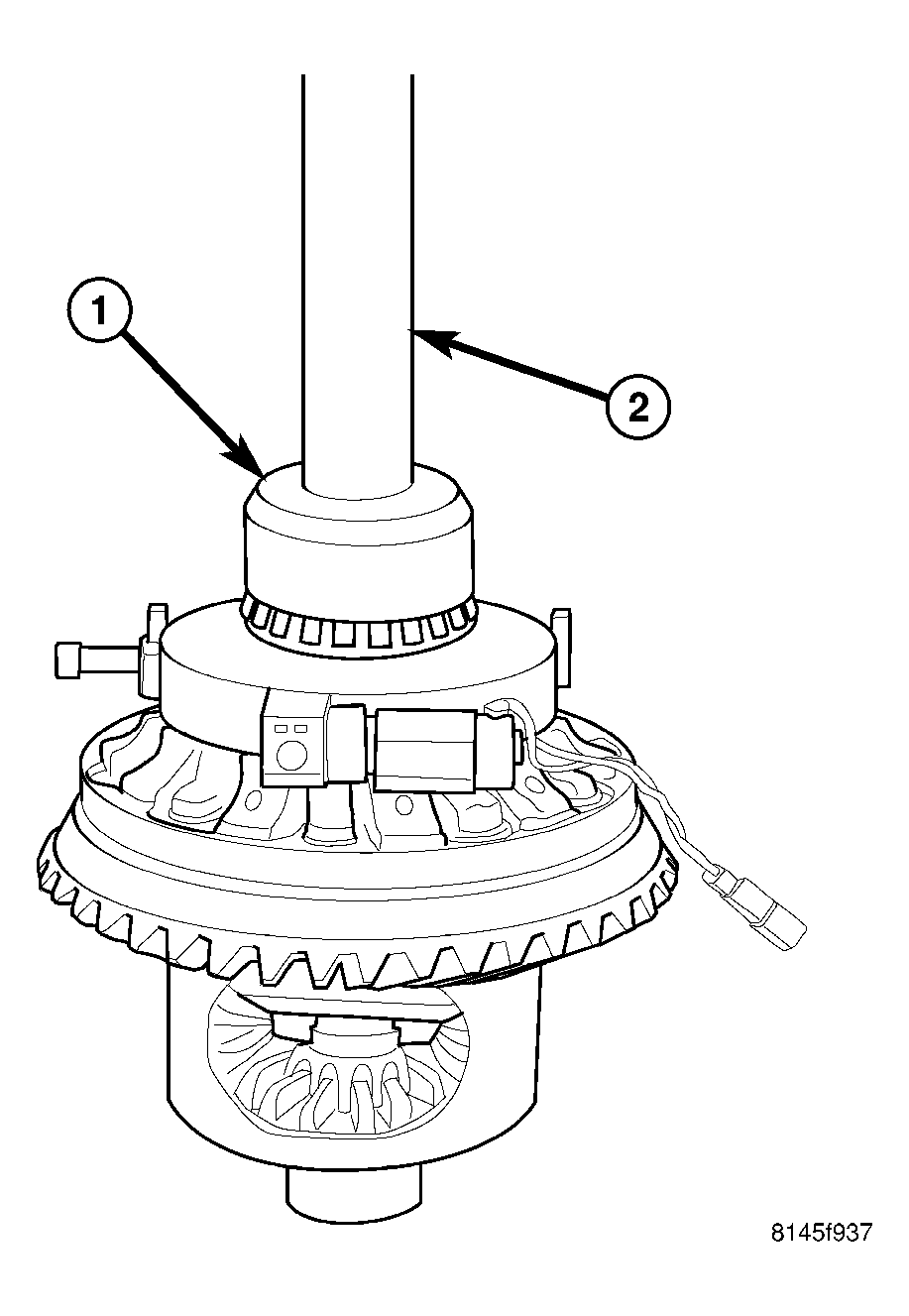

- Install differential case bearing with Installer C-4340 (1) and Handle C-4171 (2).
