Axle Shaft Seals: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

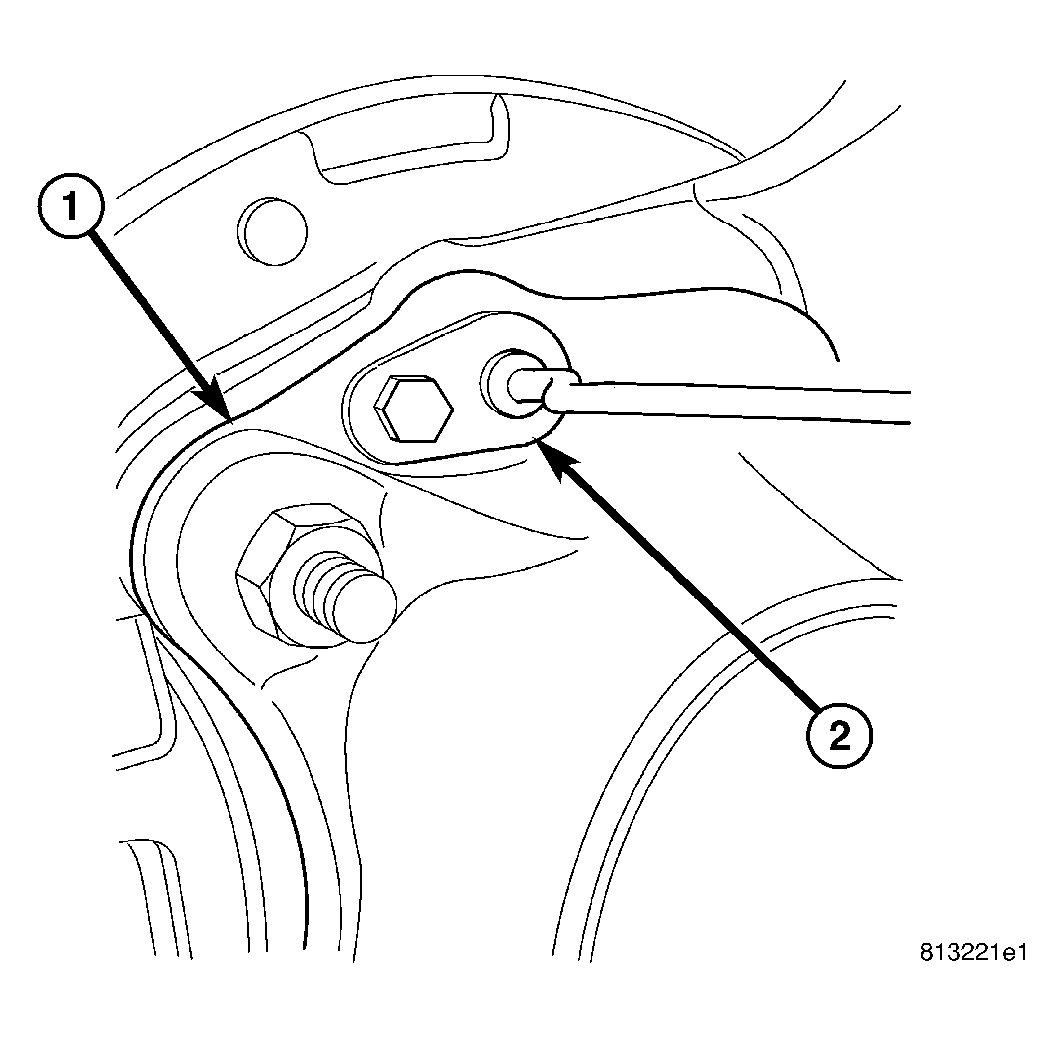

Fig 1: Speed Sensor
GC0028597Courtesy of DAIMLERCHRYSLER CORP.
  1. With vehicle in neutral, position on hoist.
  2. Remove calipers and rotors.
  3. Remove speed sensors (2) from axle tube (1) flange.

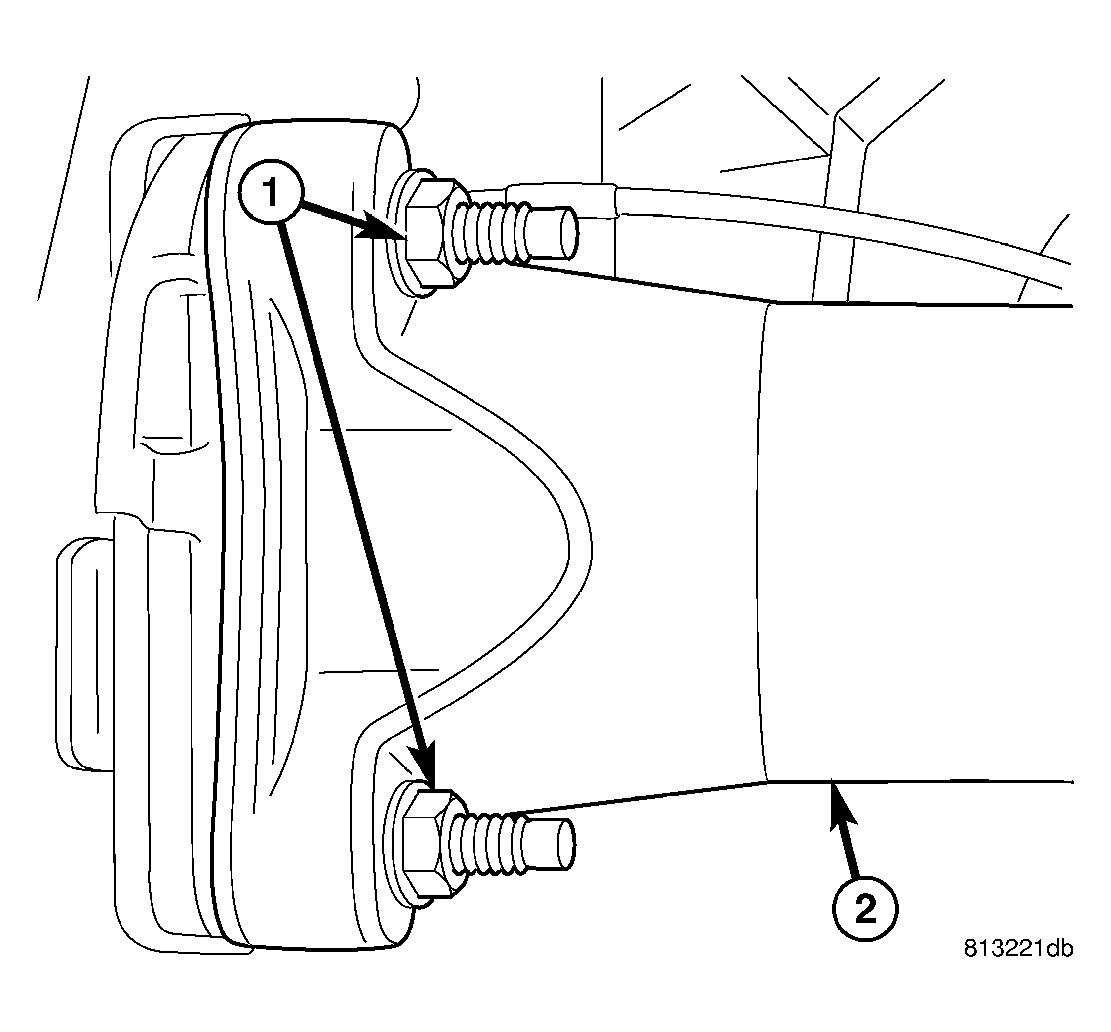

    Fig 2: Axle Flange Bolts
    GC0028598Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove axle flange nuts (1) from axle (2).

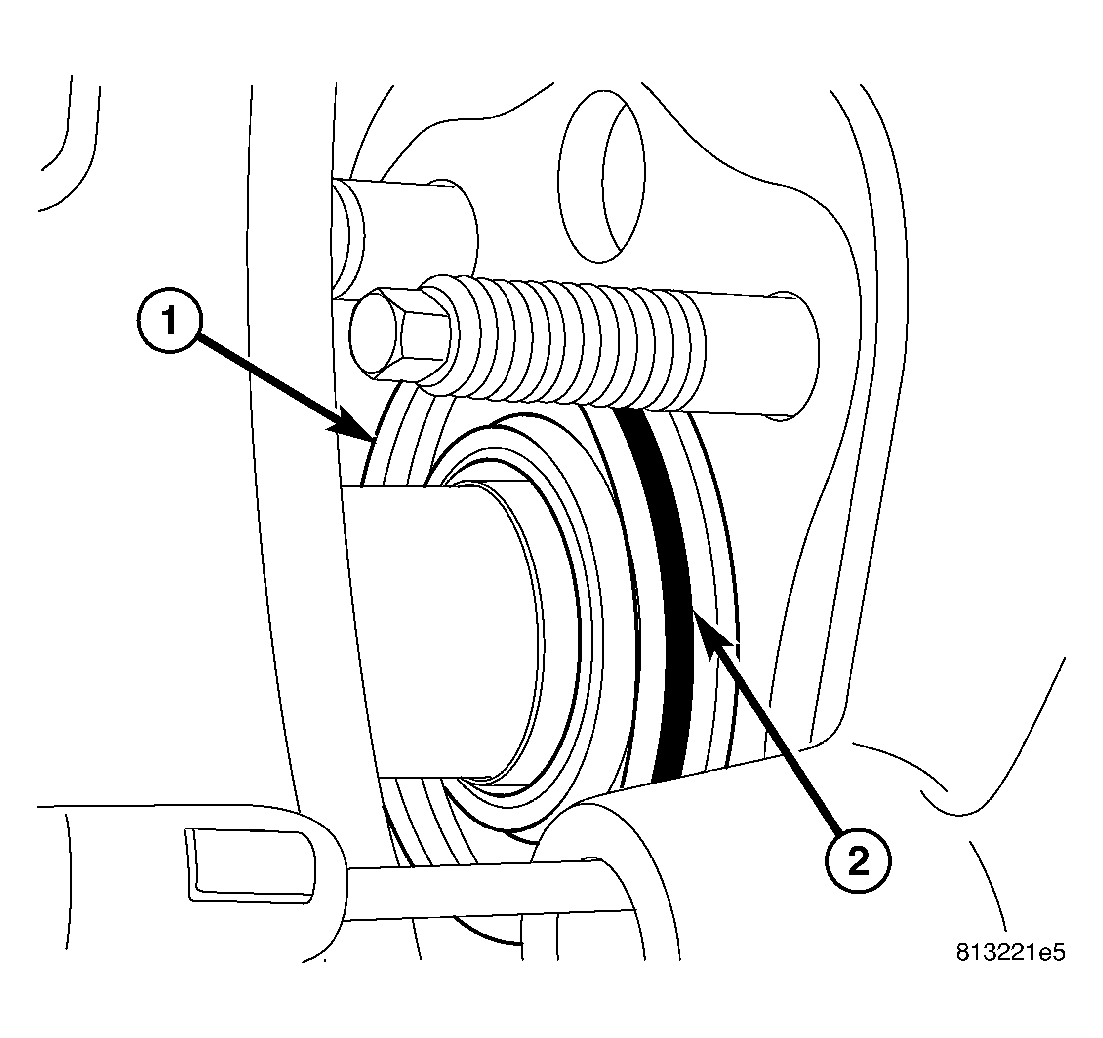

    Fig 3: Axle Bearing O-Ring
    GC0028599Courtesy of DAIMLERCHRYSLER CORP.
  5. Pull axle shaft and backing plate out of axle tube until axle bearing (1) is exposed.
  6. Remove O-ring (2) from the axle bearing.

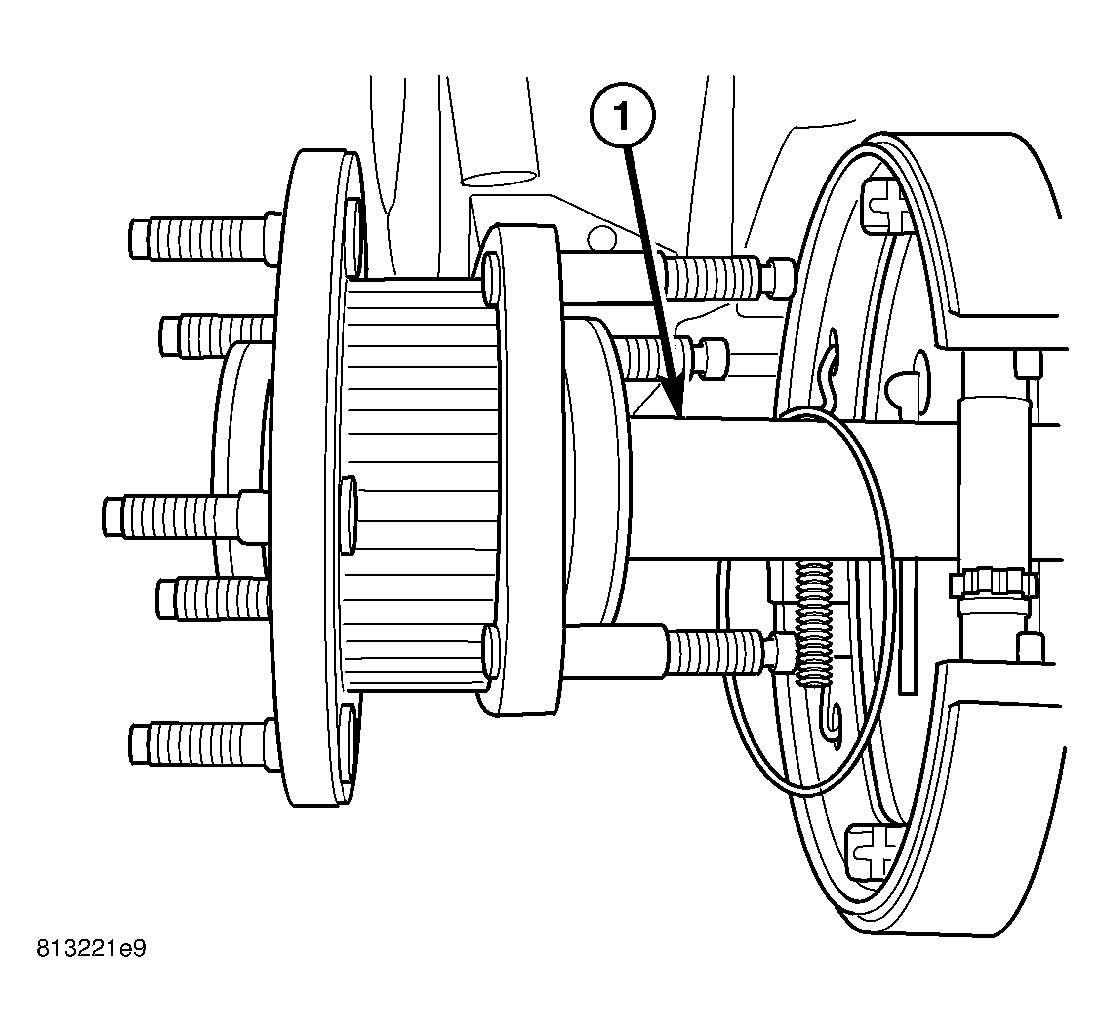

    Fig 4: Axle Shaft
    GC0028600Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove axle shaft (1) from axle tube and backing plate.
