Axle Bearings: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

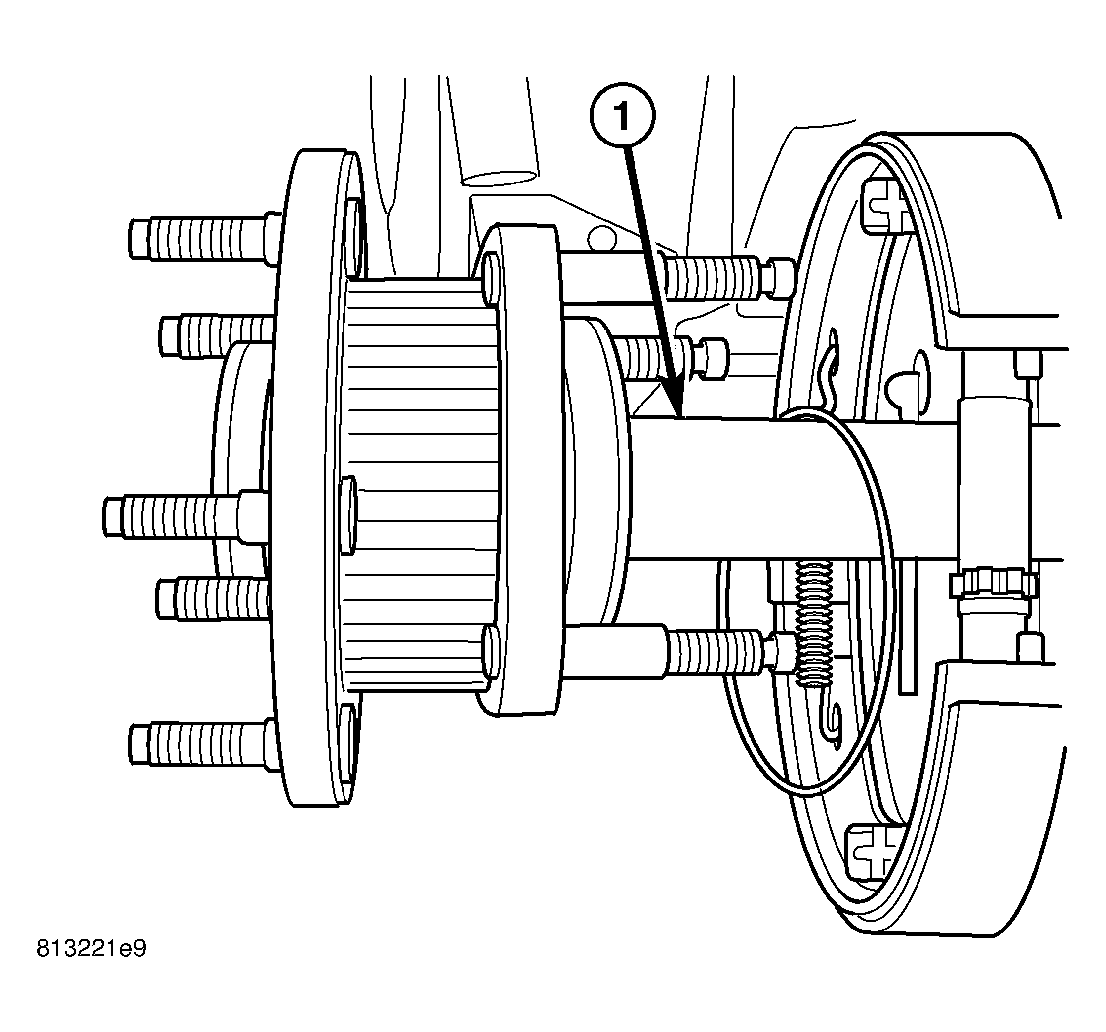

Fig 1: Axle Shaft
GC0028593Courtesy of DAIMLERCHRYSLER CORP.
  1. Install axle flange bolts into axle flange.
  2. Tap axle shaft through axle bearing into wheel flange.
  3. Install axle shaft (1) into axle tube and backing plate with new o-ring on axle.

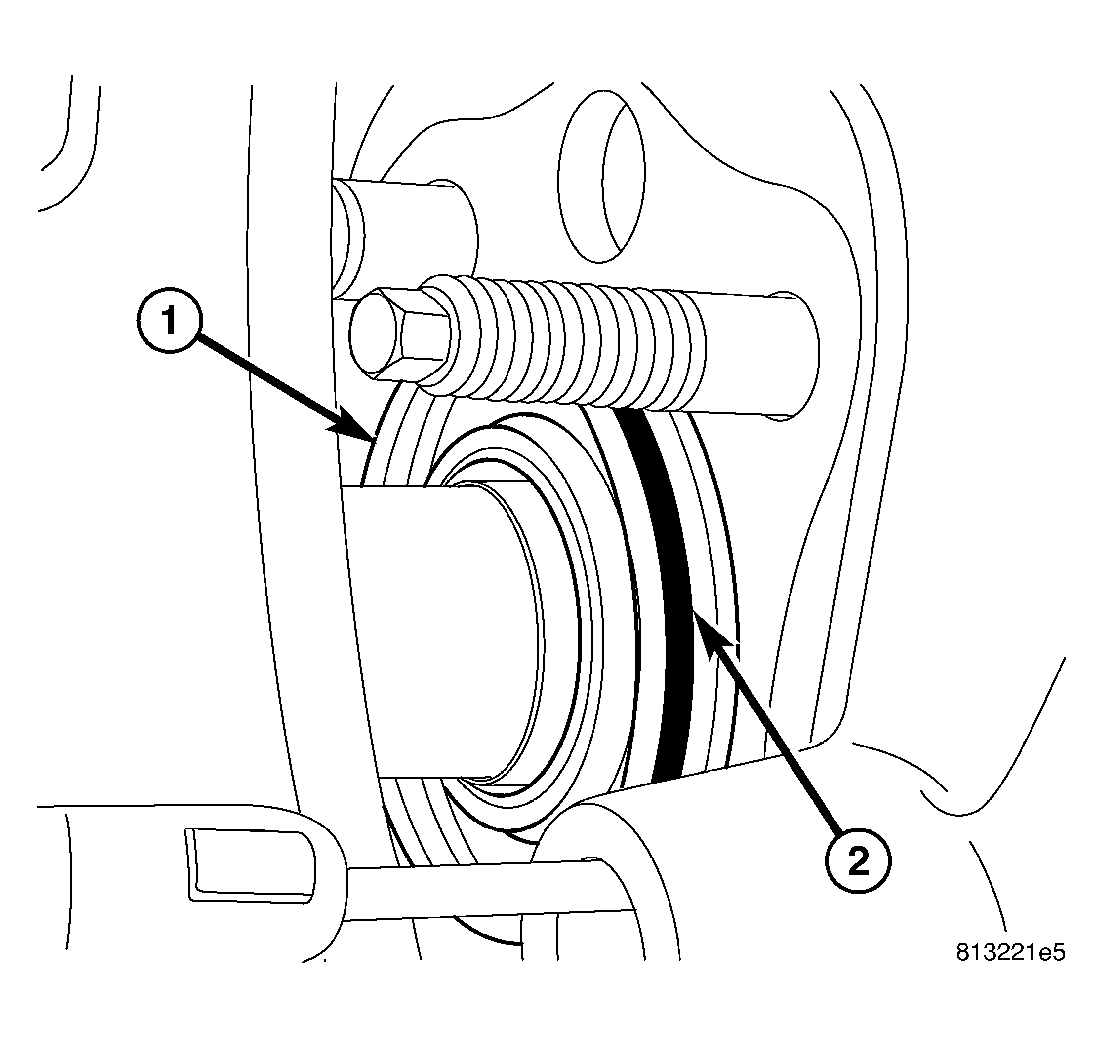

    Fig 2: Axle Bearing O-Ring
    GC0028594Courtesy of DAIMLERCHRYSLER CORP.
  4. Slip O-ring (2) through backing plate, then push axle through backing plate until bearing (1) is exposed.
  5. Install O-ring (2) axle bearing.

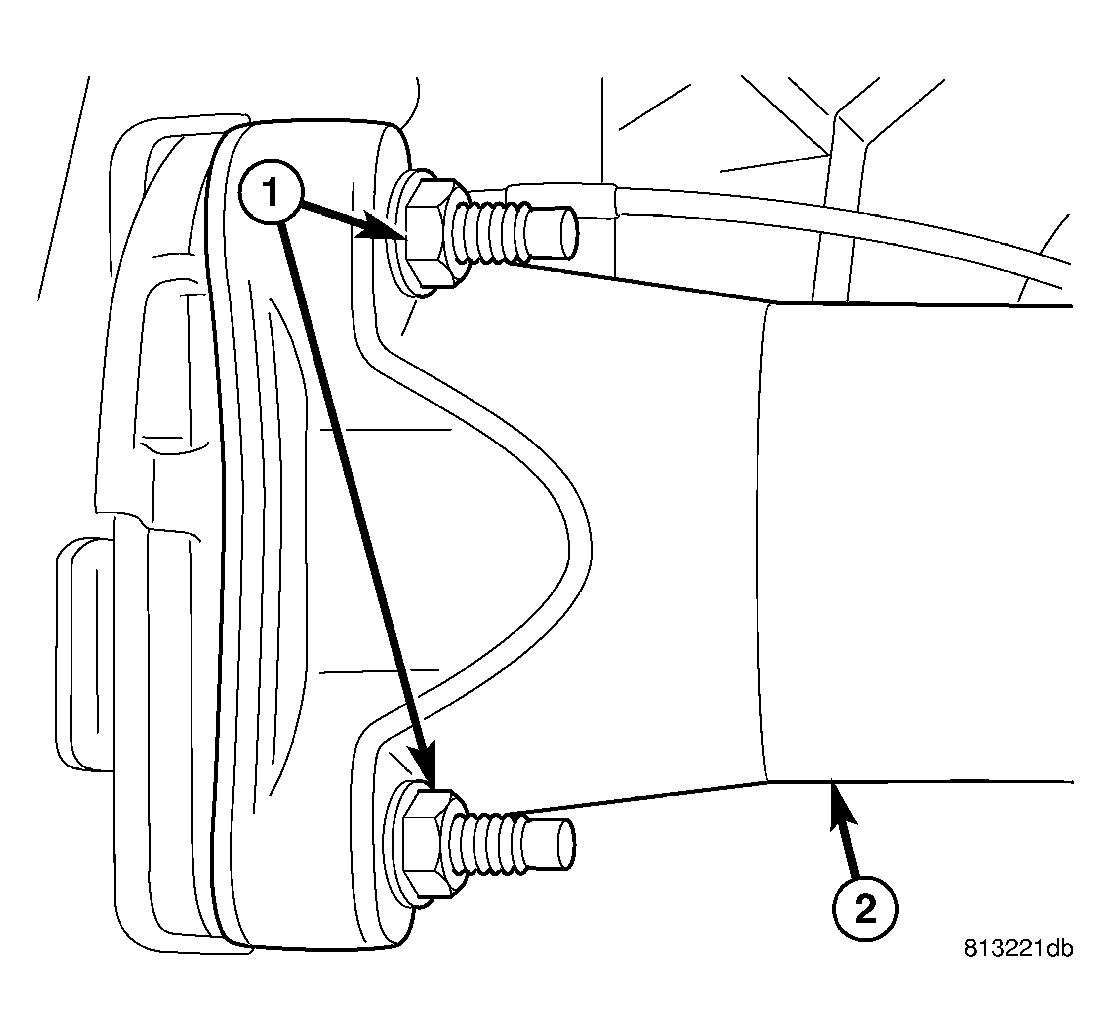

    Fig 3: Axle Flange Bolts
    GC0028595Courtesy of DAIMLERCHRYSLER CORP.
  6. Push axle into axle tube.
  7. Install axle (2) flange nuts (1) and tighten to 119 N.m (88 ft. lbs.).

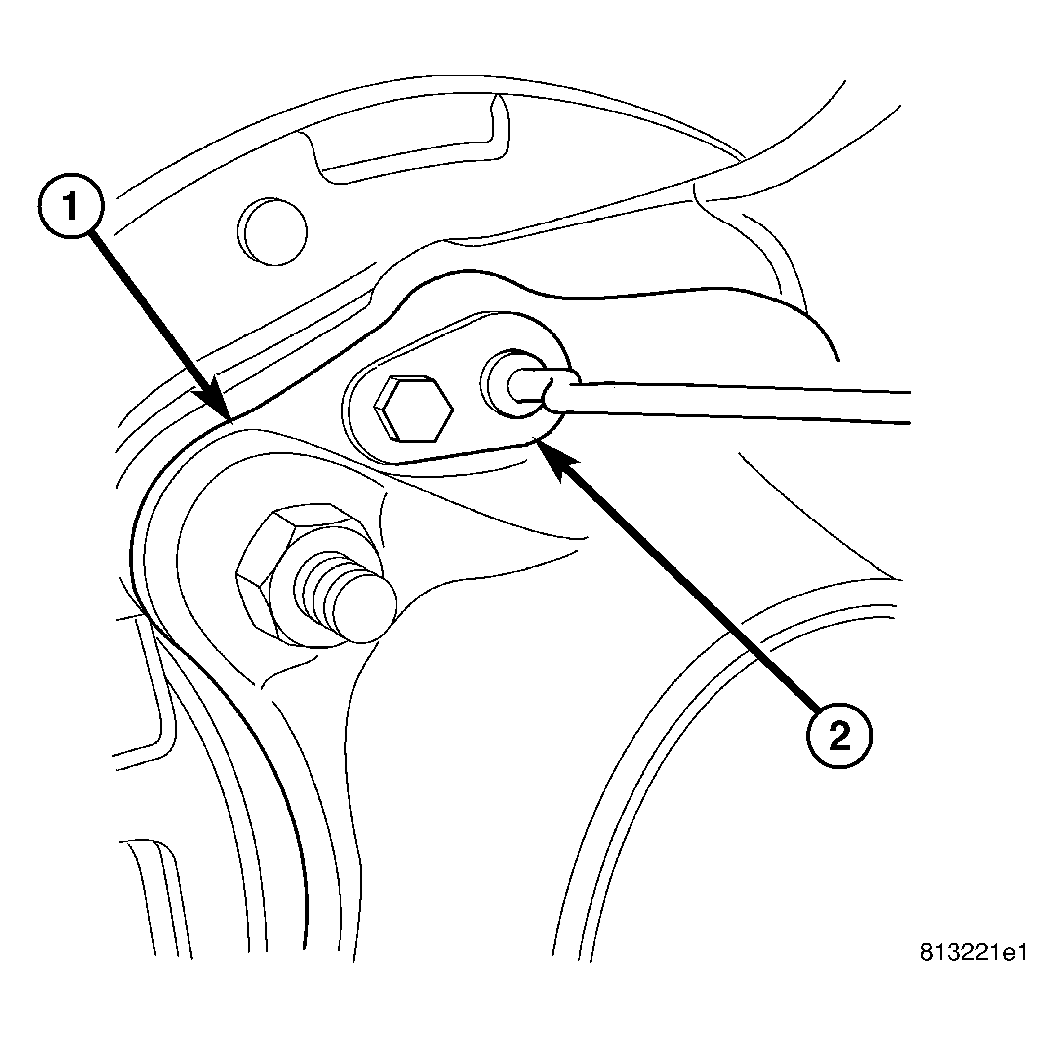

    Fig 4: Speed Sensor
    GC0028596Courtesy of DAIMLERCHRYSLER CORP.
    1 - AXLE FLANGE
    2 - WHEEL SPEED SENSOR
  8. Install speed sensors (2) in axle tube (1) flange.
  9. Coat new axle flange plug with Mopar® Stud N' Bearing Mount Adhesive or equivalent and install plug.
  10. Install calipers and rotors.
