Rear Axle - C213R: Differential: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

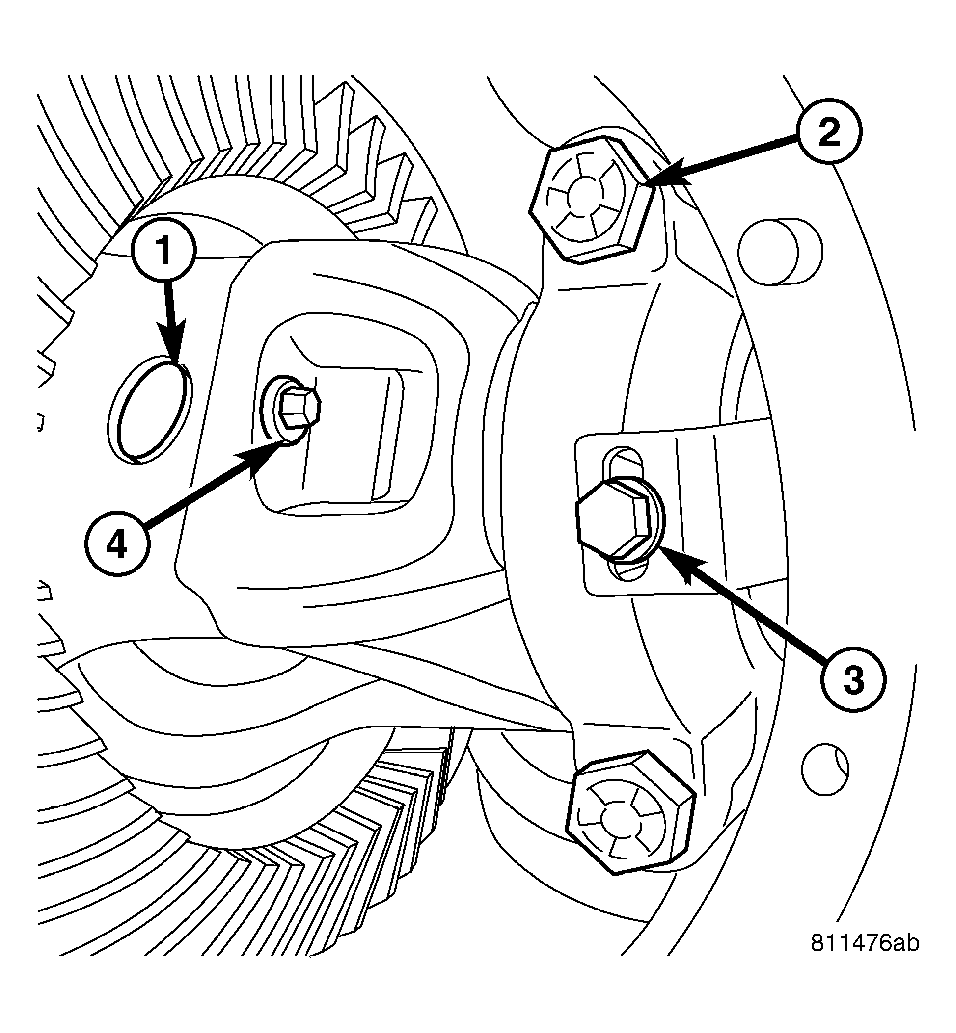

Fig 1: Install Axle Shafts and Differential Cover
GC0028613Courtesy of DAIMLERCHRYSLER CORP.
  1. Apply a coat of hypoid gear lubricant to differential bearings, bearing cups and threaded adjusters.
    NOTE: Grease can be used to keep the adjusters in position.
  2. Install differential assembly into the housing.
  3. Install differential bearing caps in their original locations.
  4. Install bearing cap bolts and tighten upper bolts to 14 N.m (10 ft. lbs.). Tighten lower bolts finger-tight until the bolt head is seated.
  5. Perform differential bearing preload and adjustment procedure.
  6. Tighten bearing cap bolts (2) to 135 N.m (100 ft. lbs).
  7. Install adjuster locks (3) on bearing caps and tighten bolts to 11 N.m (8 ft. lbs.).
  8. Install axle shafts.
  9. Install differential cover.
