Rear Axle - C213R: Differential: Disassembly

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

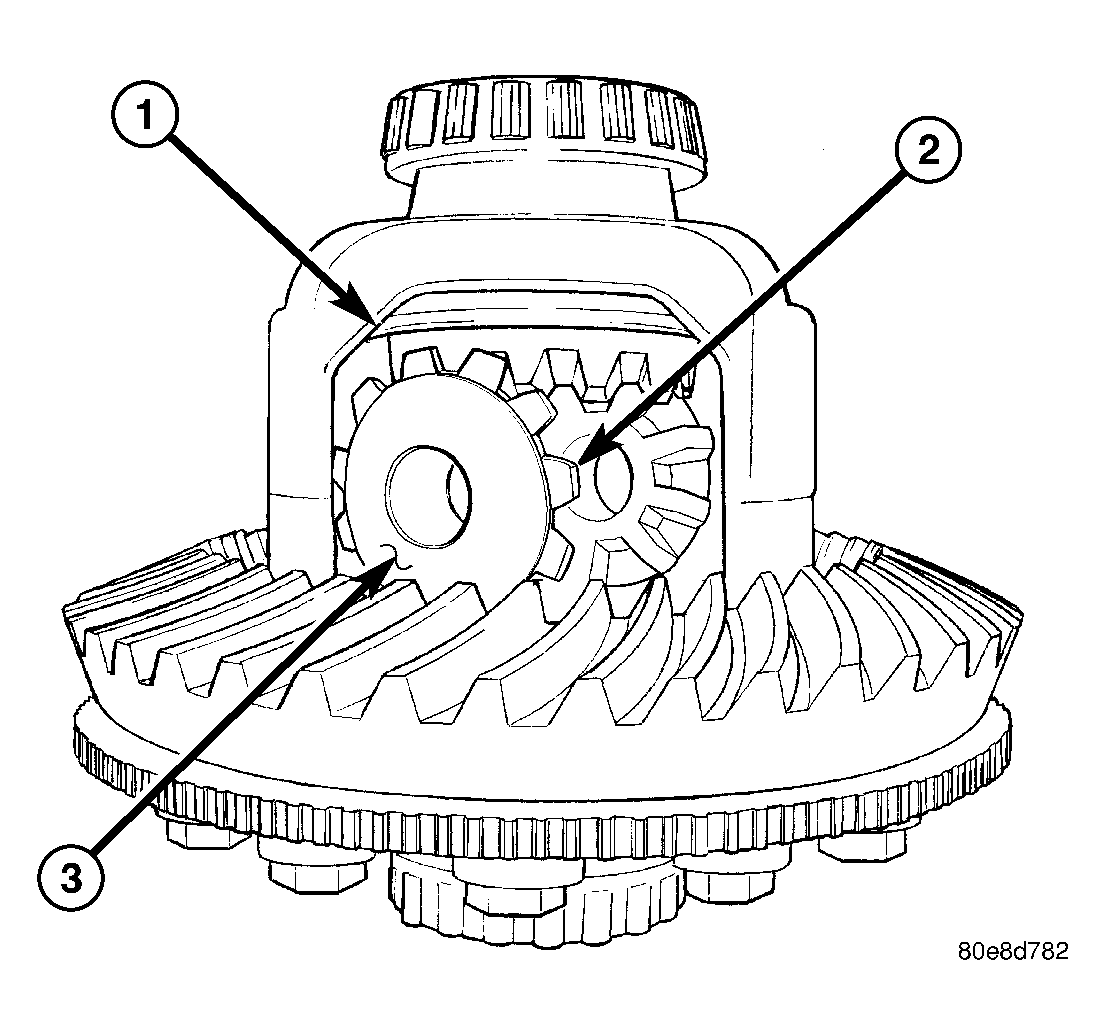

Fig 1: Remove Gear and Thrust Washer

Courtesy of DAIMLERCHRYSLER CORP.

Rotate one pinion gear (2) with thrust washer (3) to the differential window (1). Remove gear and thrust washer.

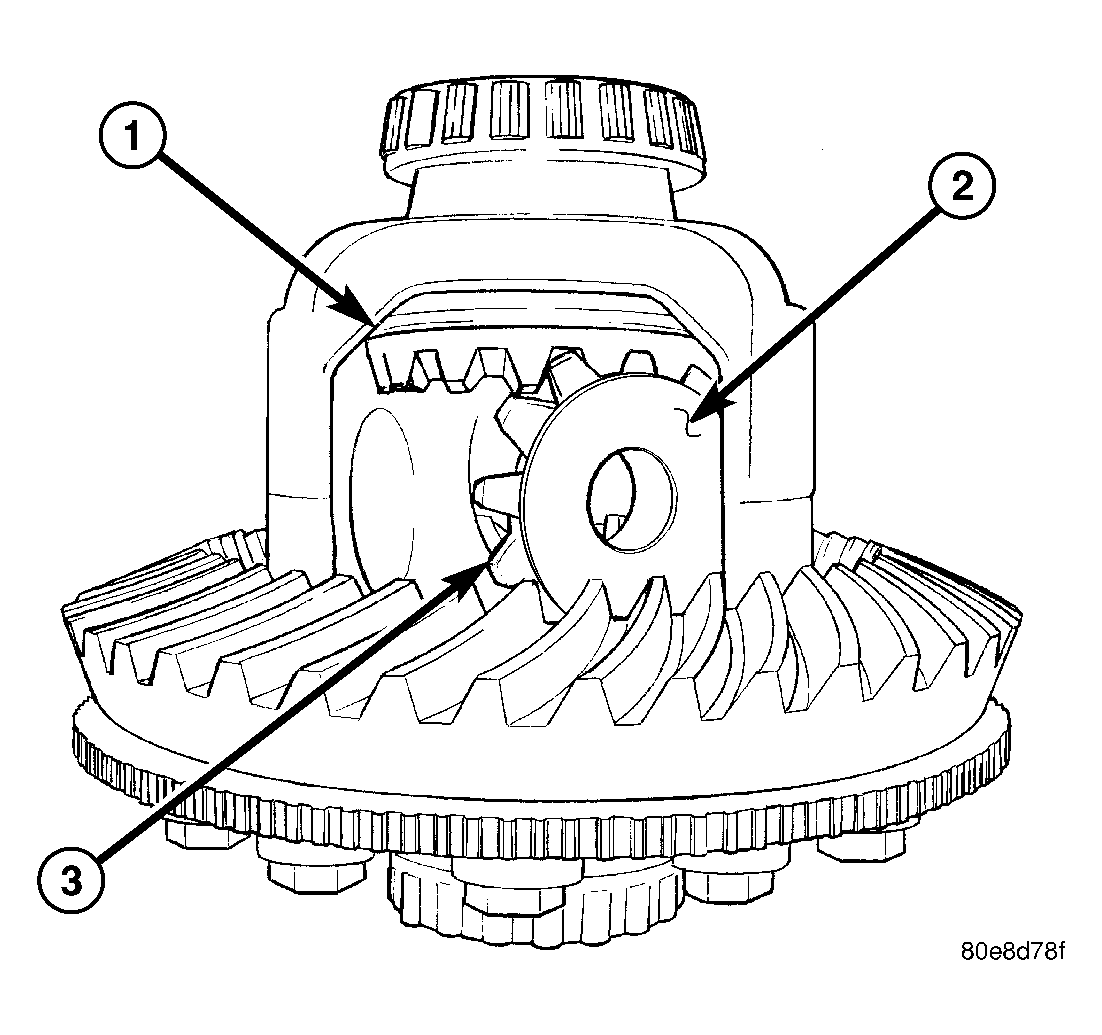

Fig 2: Remove Gear and Washer
Courtesy of DAIMLERCHRYSLER CORP.
Rotate remaining pinion gear (3) with thrust washer (2) to the differential window (1). Remove gear and washer.

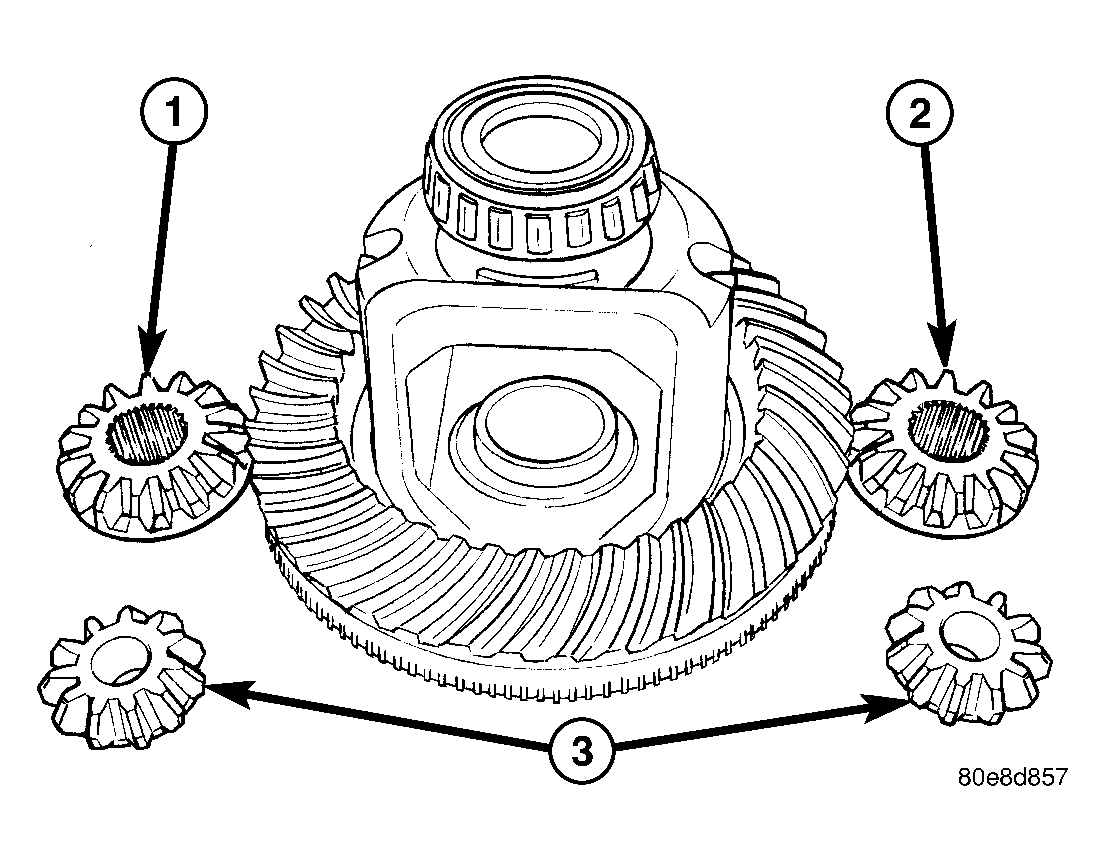

Fig 3: Remove Differential Side Gears
Courtesy of DAIMLERCHRYSLER CORP.
Remove differential side gears (1) (2) and thrust washers.
