Bearings-VARI-LOK Differential Case: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

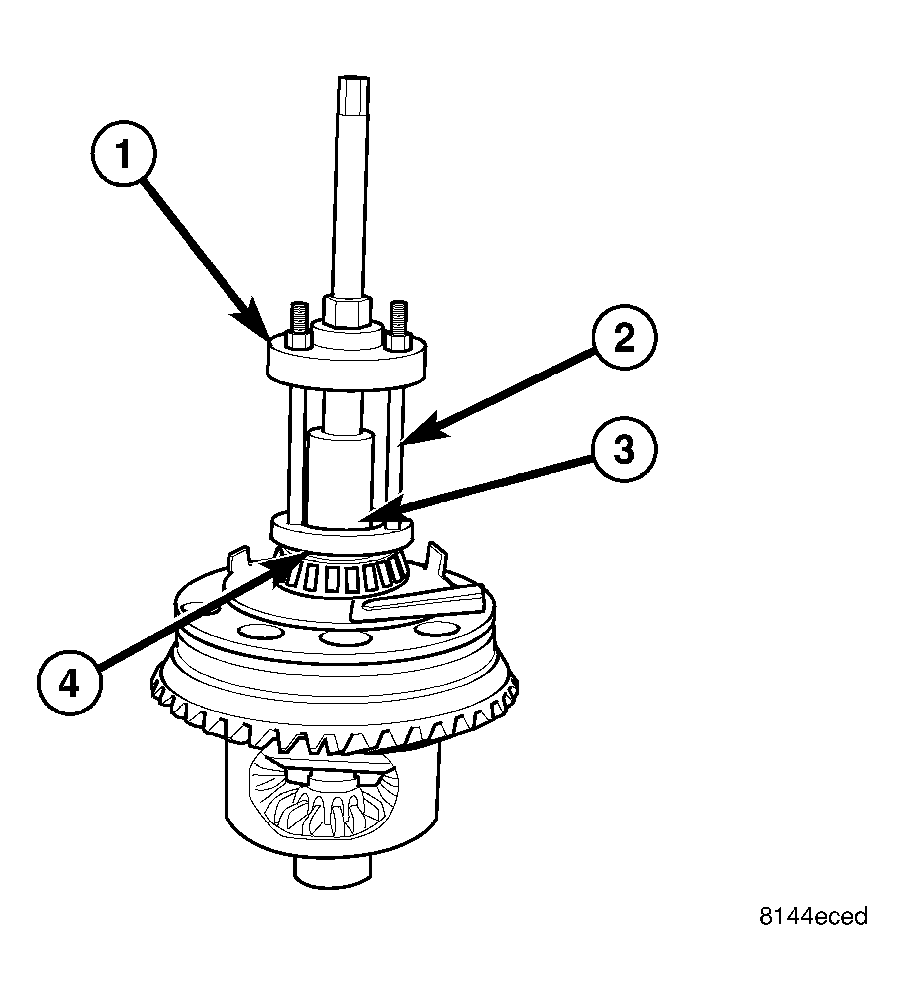

Fig 1: Puller And Flange
GC0028620Courtesy of DAIMLERCHRYSLER CORP.
  1. Install Plug SP 3298 (3) Into the differential axle shaft hole.
  2. Remove differential case bearings with Puller 6444 (1), Puller Rods 6444-4 (2) and Puller Flange 6444-1(4). Position puller on the differential.

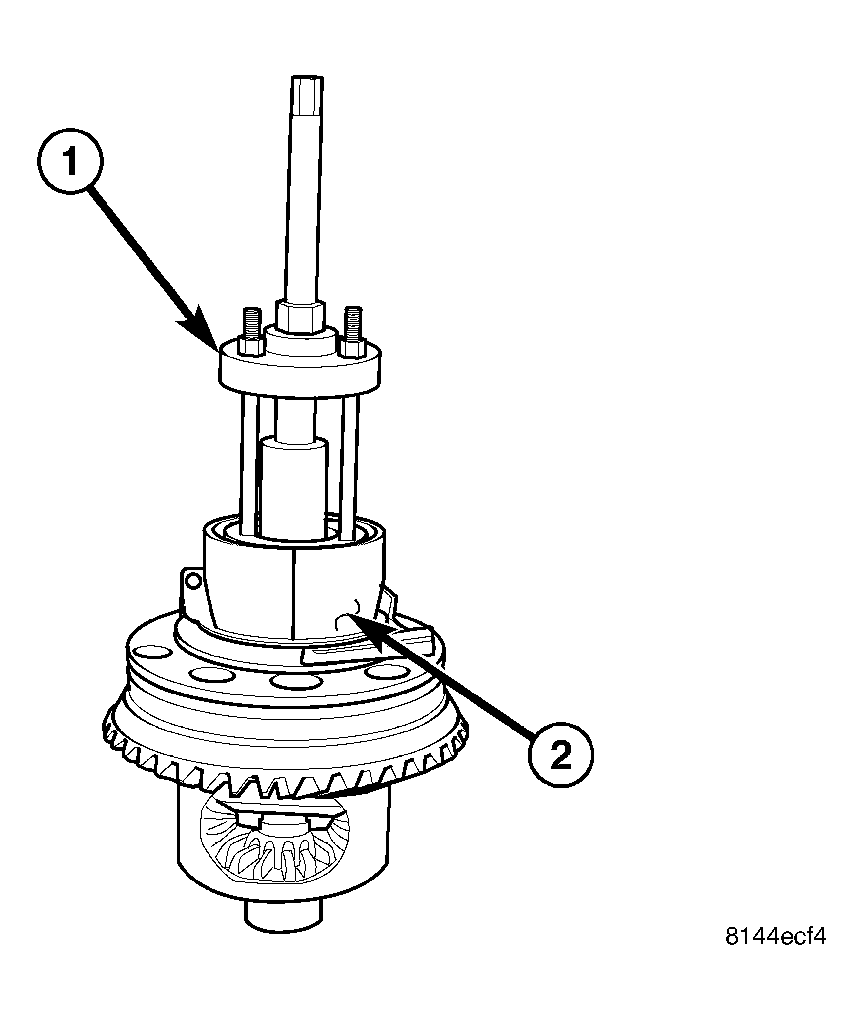

    Fig 2: Puller And Jaws
    GC0028621Courtesy of DAIMLERCHRYSLER CORP.
  3. Position Puller (1) Jaws 9639 (2) around the case bearing and puller flange.

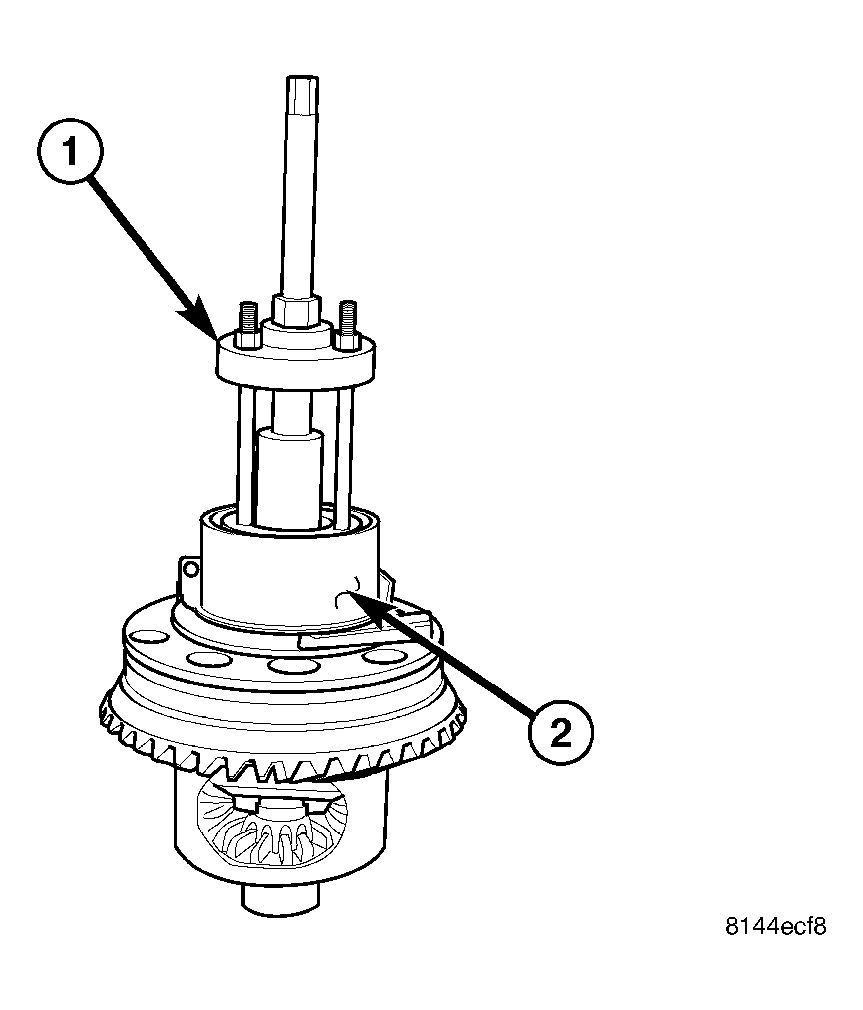

    Fig 3: Puller And Collar
    GC0028622Courtesy of DAIMLERCHRYSLER CORP.
  4. Position Puller (1) Collar 6444-8 (2) around the puller jaws.
  5. Tighten the puller nut and remove differential case bearing.
