Bearings-VARI-LOK Differential Case: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

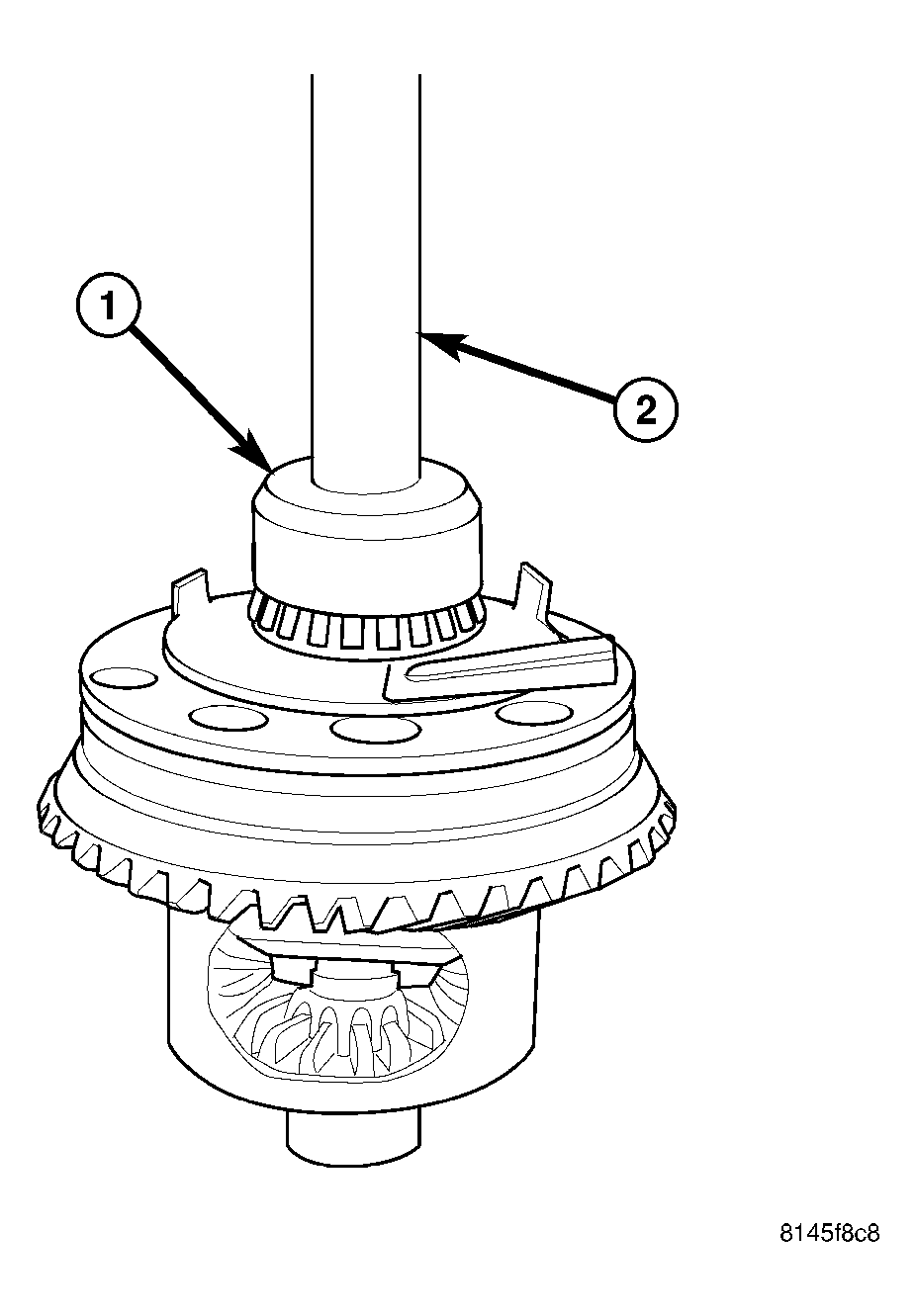

Fig 1: VARI-LOK Differential Bearings

Courtesy of DAIMLERCHRYSLER CORP.

Install differential case bearing with Installer C-4340 (1) and Handle C-4171 (2).

CAUTION: VARI-LOK®, plenum must be seated against the differential case, prior to installing the ring gear side differential bearing. Failure to follow these instructions will damage the VARI-LOK® plenum.
