Bearings-Differential Case: Removal
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.

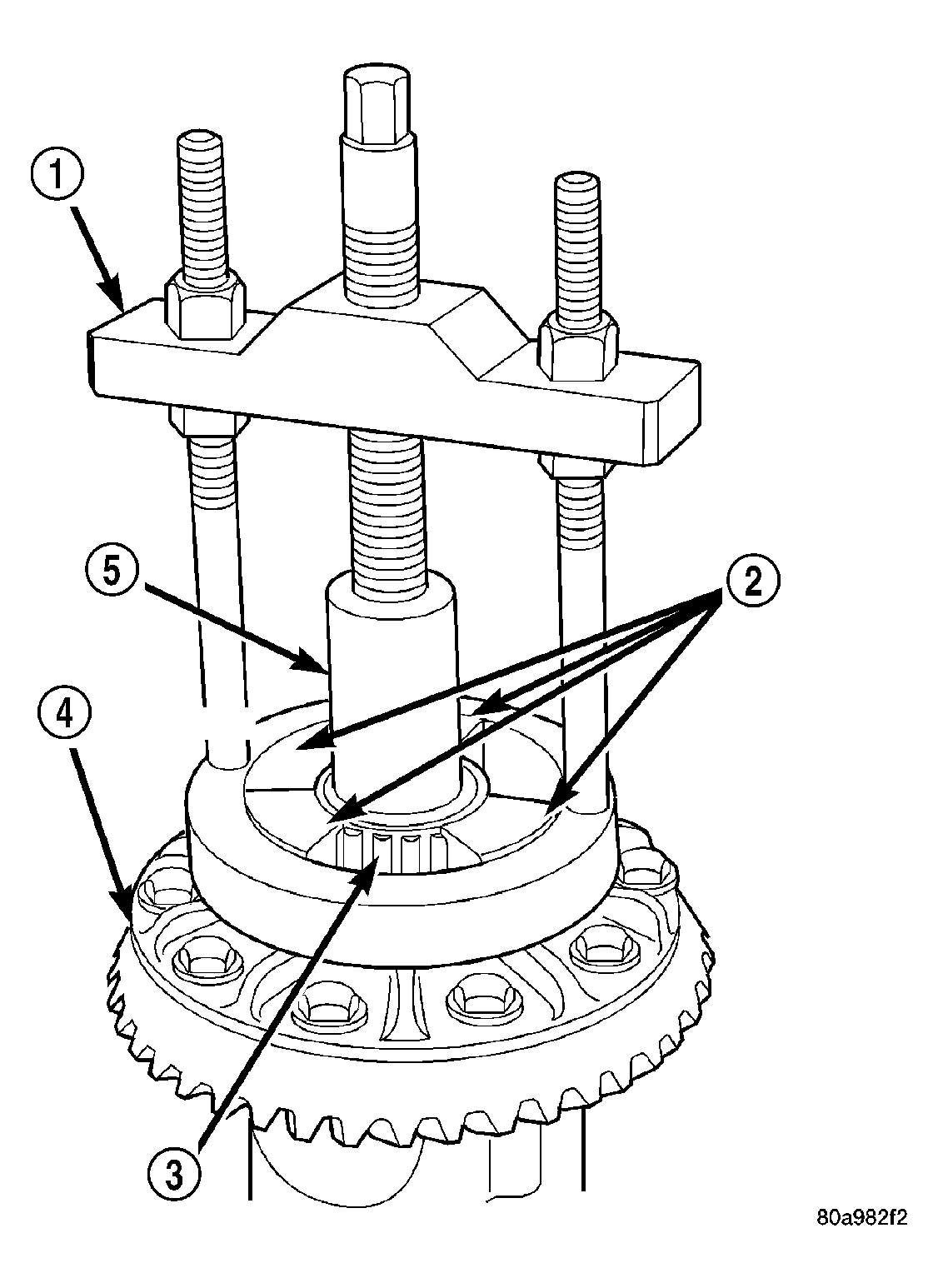

| 1 - PULLER |
| 2 - ADAPTERS |
| 3 - BEARING |
| 4 - DIFFERENTIAL |
| 5 - PLUG |
- Remove differential case from axle.
- Remove differential bearings (3) from the case with Puller/Press C-293-PA (1) and Adapters C-293-48 (2) and Plug SP-3289 (5).
