Bearings-Differential Case: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.

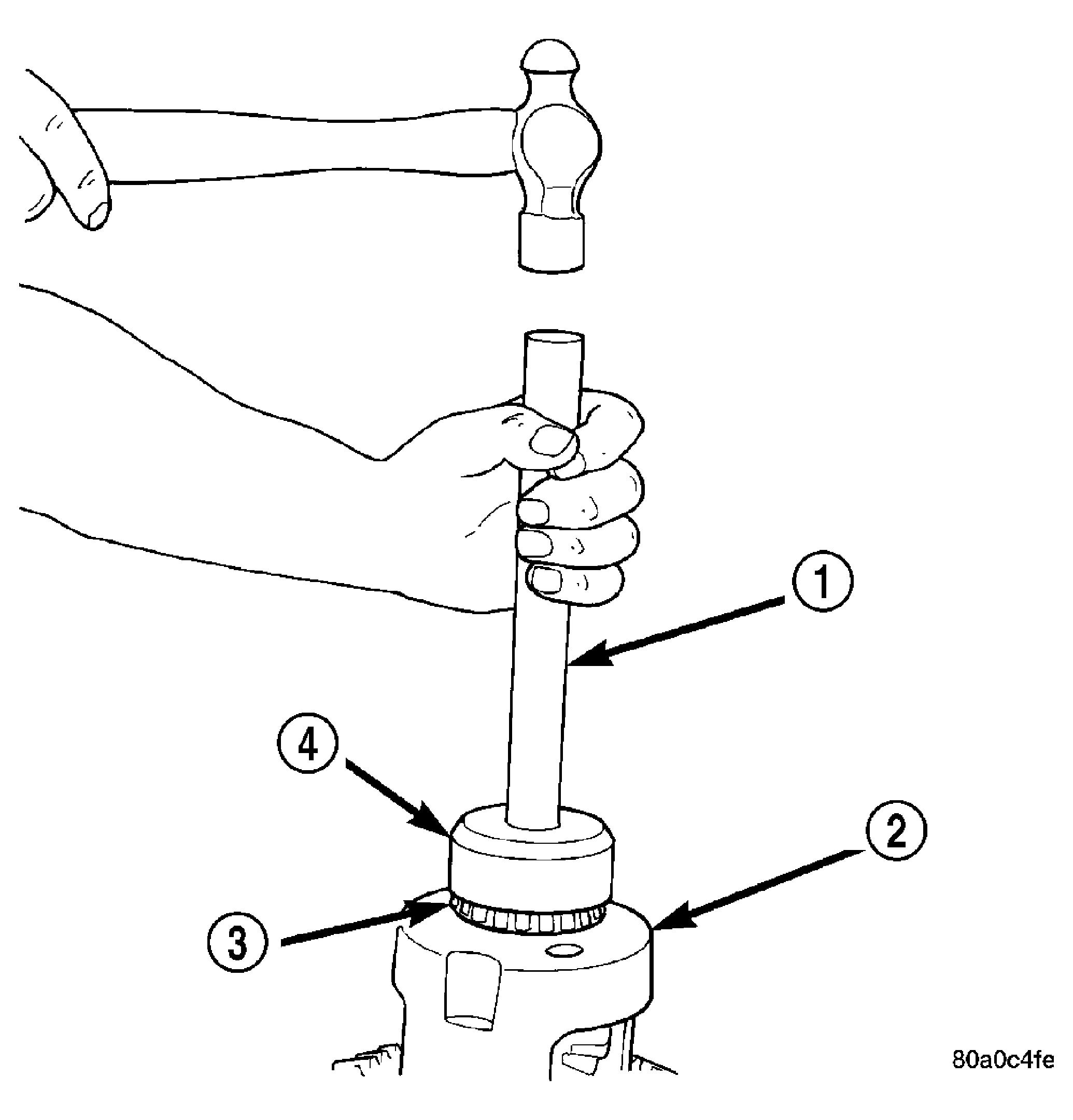

| 1 - HANDLE |
| 2 - DIFFERENTIAL |
| 3 - BEARING |
| 4 - INSTALLER |
- Install differential side bearings (3) with Installer C-4340 (4) and Handle C-4171 (1).
- Install differential case in axle.
