Axle Shafts: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

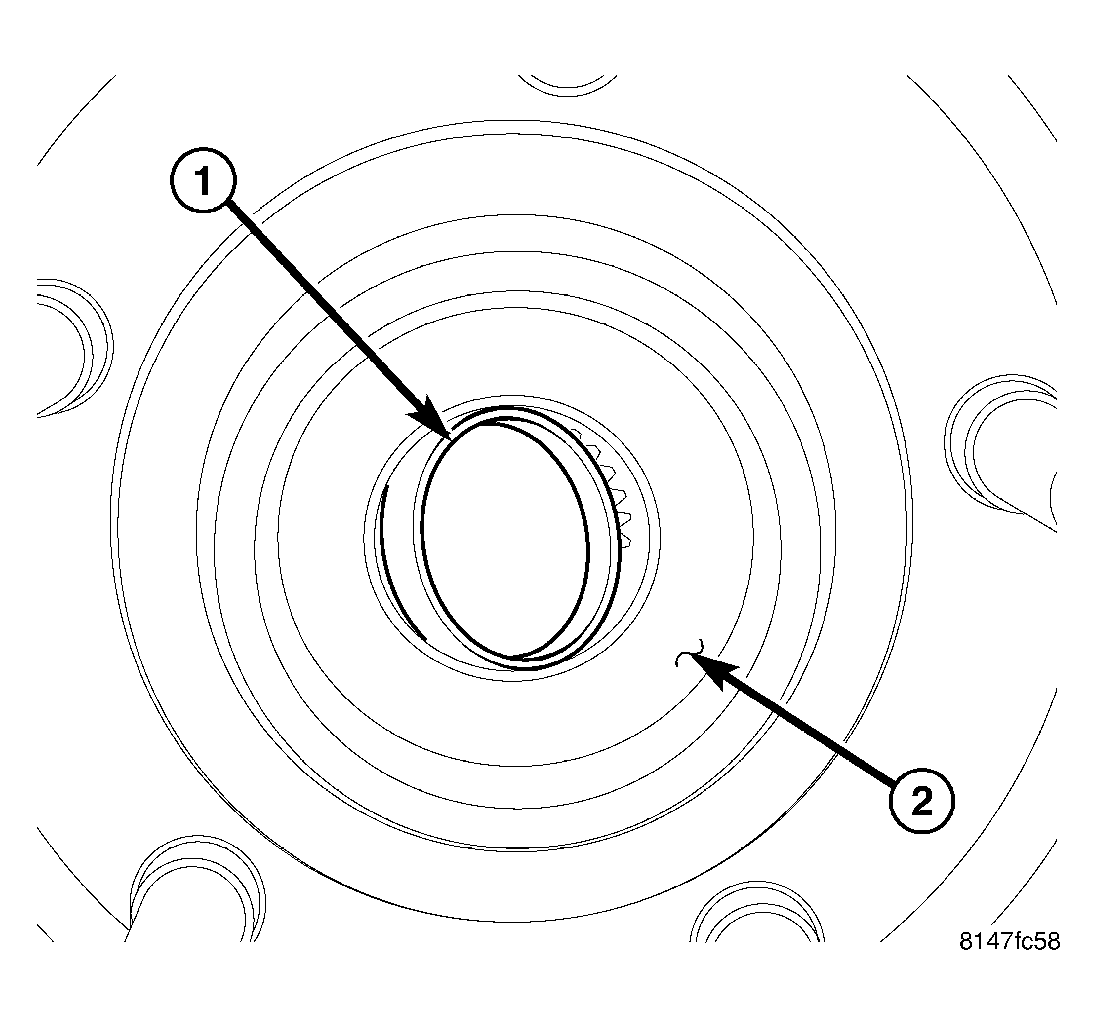

Fig 1: Axle Plug

Courtesy of DAIMLERCHRYSLER CORP.

With vehicle in neutral, position on hoist.
Remove calipers and rotors.
Tap axle end plug (1) loose from the axle flange (2) with a hammer and punch. Pull plug (1) out of axle flange (2).

Fig 2: Speed Sensor
Courtesy of DAIMLERCHRYSLER CORP.

1 - AXLE FLANGE

2 - WHEEL SPEED SENSOR
Remove speed sensors (2) from axle tube (1) flange.

Fig 3: Axle Flange Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove axle flange nuts (1) from axle (2).

Fig 4: Axle Bearing O-Ring
Courtesy of DAIMLERCHRYSLER CORP.
Pull axle shaft and backing plate out of axle tube until axle bearing (1) is exposed.
Remove O-ring (2) from the axle bearing.

Fig 5: Axle Shaft
Courtesy of DAIMLERCHRYSLER CORP.
Slide axle shaft (1) from axle tube and backing plate.
Tap axle shaft out of the bearing and axle flange through the plug hole with a hammer and brass drift.
