Axle Shaft Seals: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

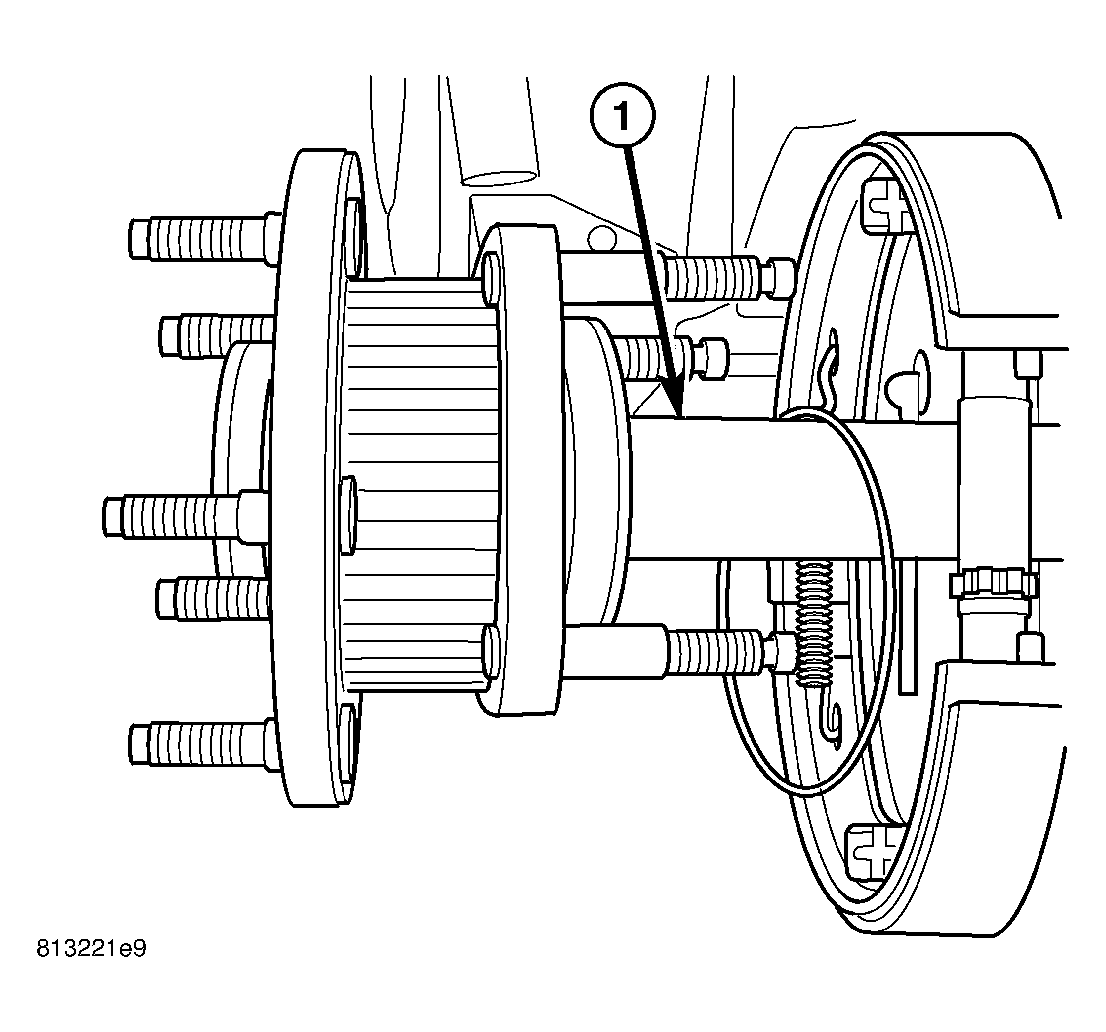

Fig 1: Axle Shaft
GC0028601Courtesy of DAIMLERCHRYSLER CORP.
  1. Install axle shaft (1) into axle tube and backing plate with new o-ring on axle.

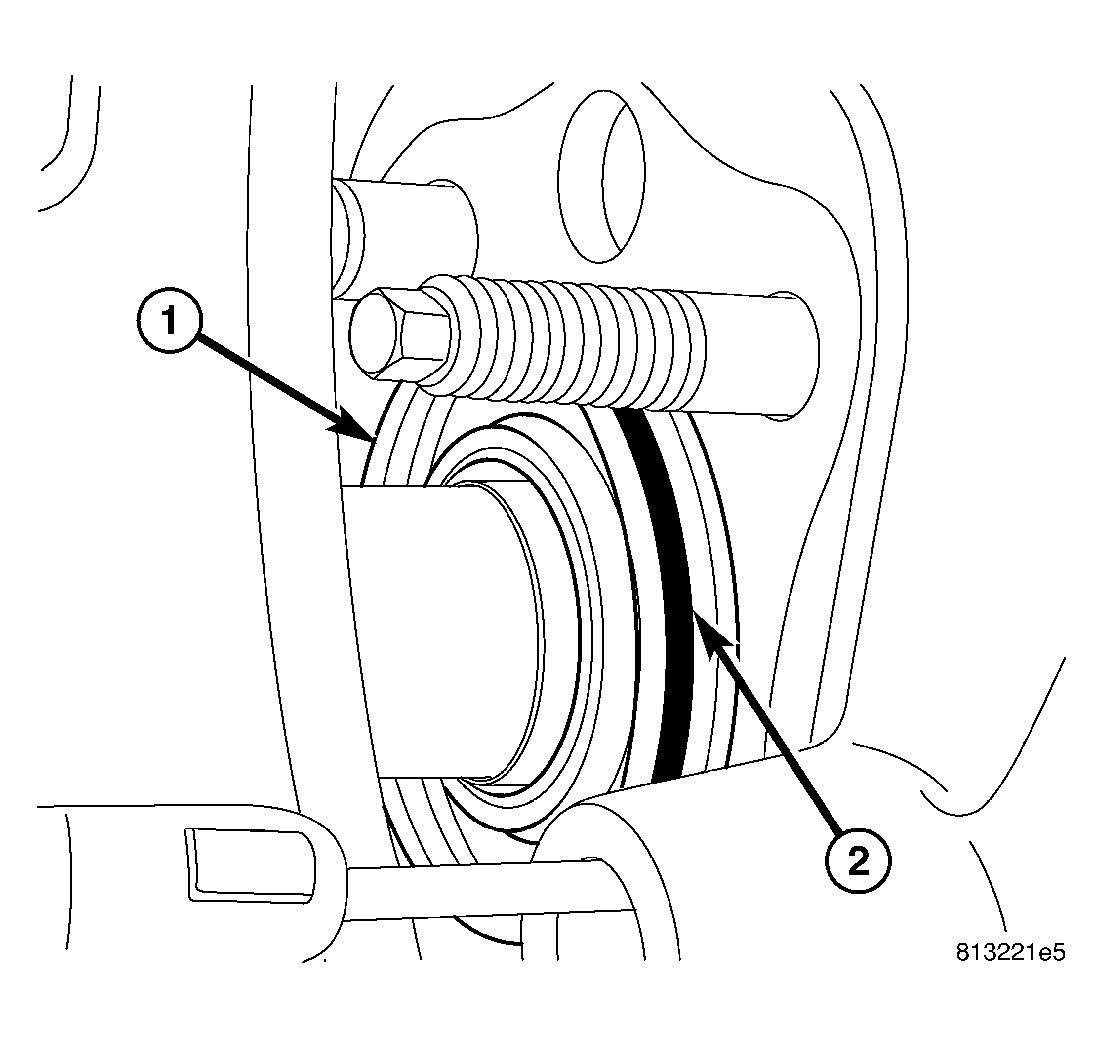

    Fig 2: Axle Bearing O-Ring
    GC0028602Courtesy of DAIMLERCHRYSLER CORP.
  2. Slip O-ring (2) through backing plate, then push axle through backing plate until bearing (1) is exposed.
  3. Install new O-ring (2) on axle bearing (1).

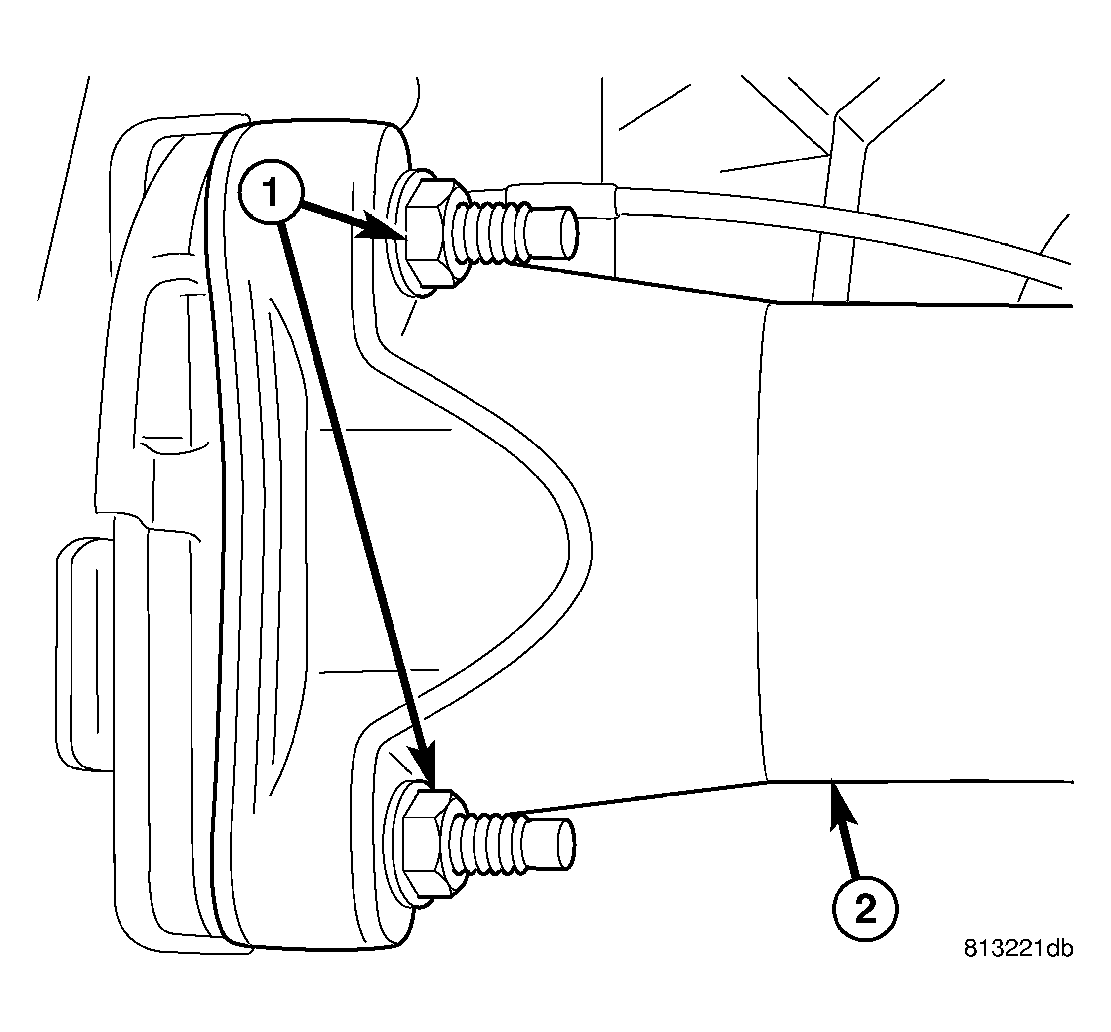

    Fig 3: Axle Flange Bolts
    GC0028603Courtesy of DAIMLERCHRYSLER CORP.
  4. Push axle into axle tube.
  5. Install axle (2) flange nuts (1) and tighten to 119 N.m (88 ft. lbs.).

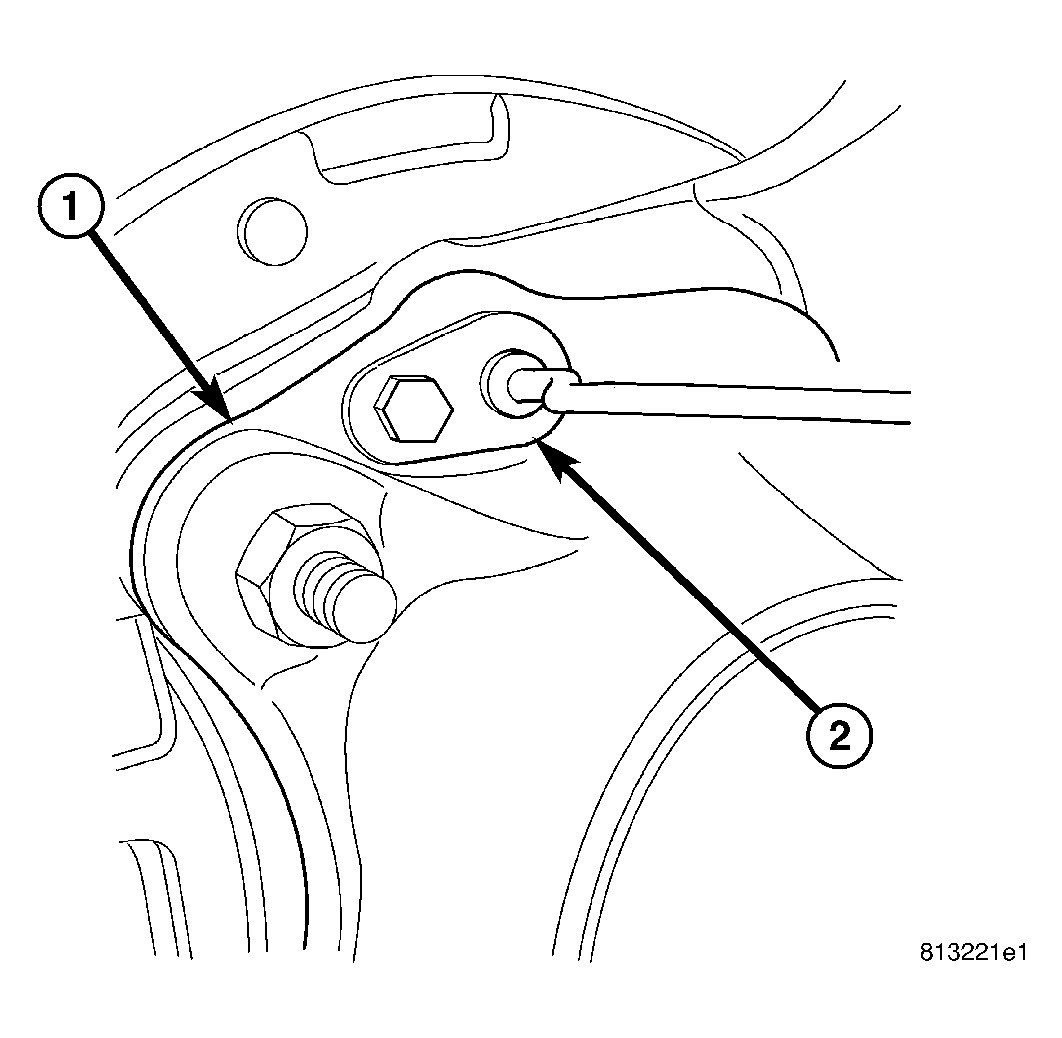

    Fig 4: Speed Sensor
    GC0028604Courtesy of DAIMLERCHRYSLER CORP.
  6. Install speed sensors (2) in axle tube (1) flange.
  7. Install calipers and rotors.
