Axle Bearings: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Axle Plug
GC0028588Courtesy of DAIMLERCHRYSLER CORP.
  1. With vehicle in neutral, position on hoist.
  2. Remove calipers and rotors.
  3. Tap axle end plug (1) loose from the wheel flange (2) with a hammer and punch. Pull plug (1) out of wheel flange (2).

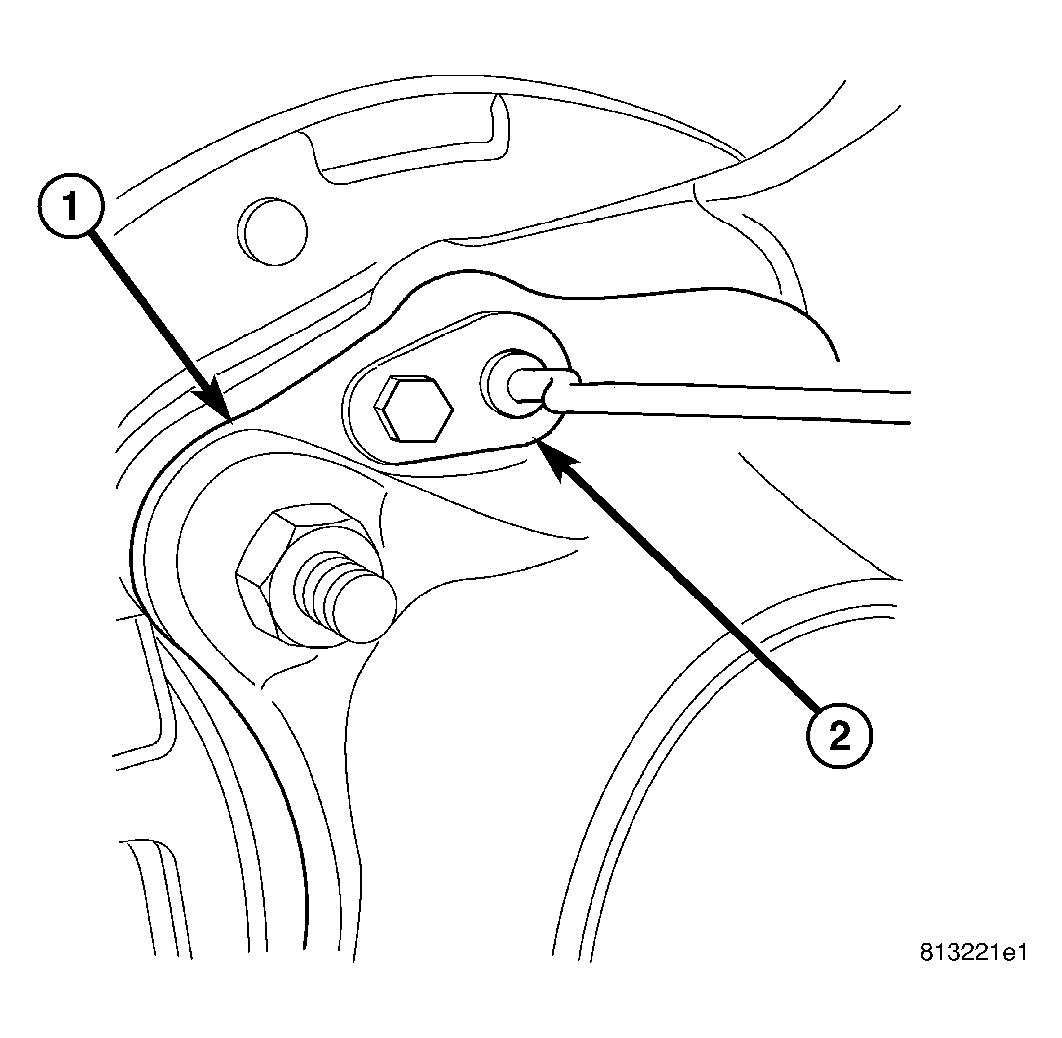

    Fig 2: Speed Sensor
    GC0028589Courtesy of DAIMLERCHRYSLER CORP.
    1 - AXLE FLANGE
    2 - WHEEL SPEED SENSOR
  4. Remove speed sensors (2) from axle tube (1) flange.
    Fig 3: Axle Flange Bolts
    GC0028590Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove axle flange nuts (1) from axle (2).

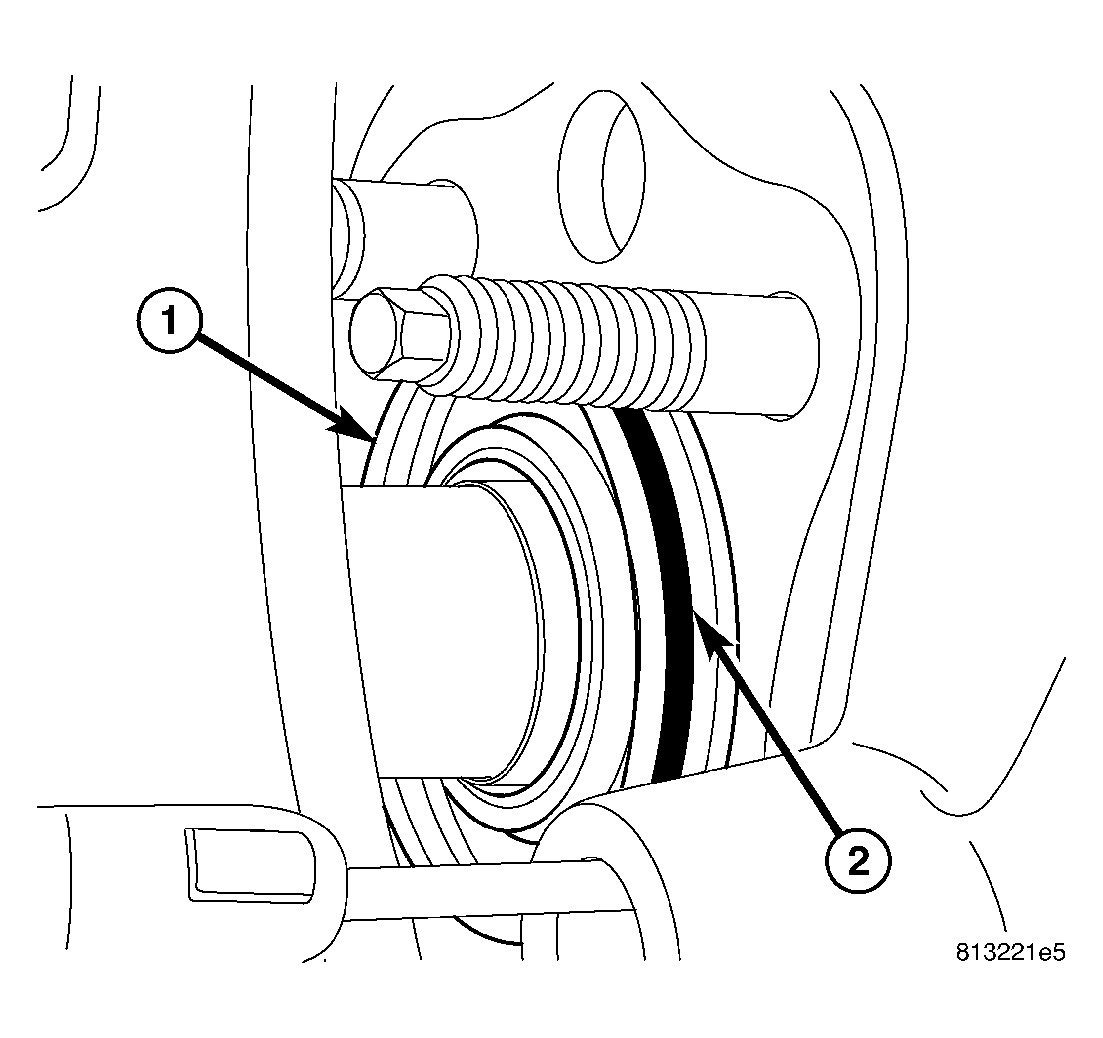

    Fig 4: Axle Bearing O-Ring
    GC0028591Courtesy of DAIMLERCHRYSLER CORP.
  6. Pull axle shaft and backing plate out of axle tube until axle bearing (1) is exposed.
  7. Remove O-ring (2) from the axle bearing.

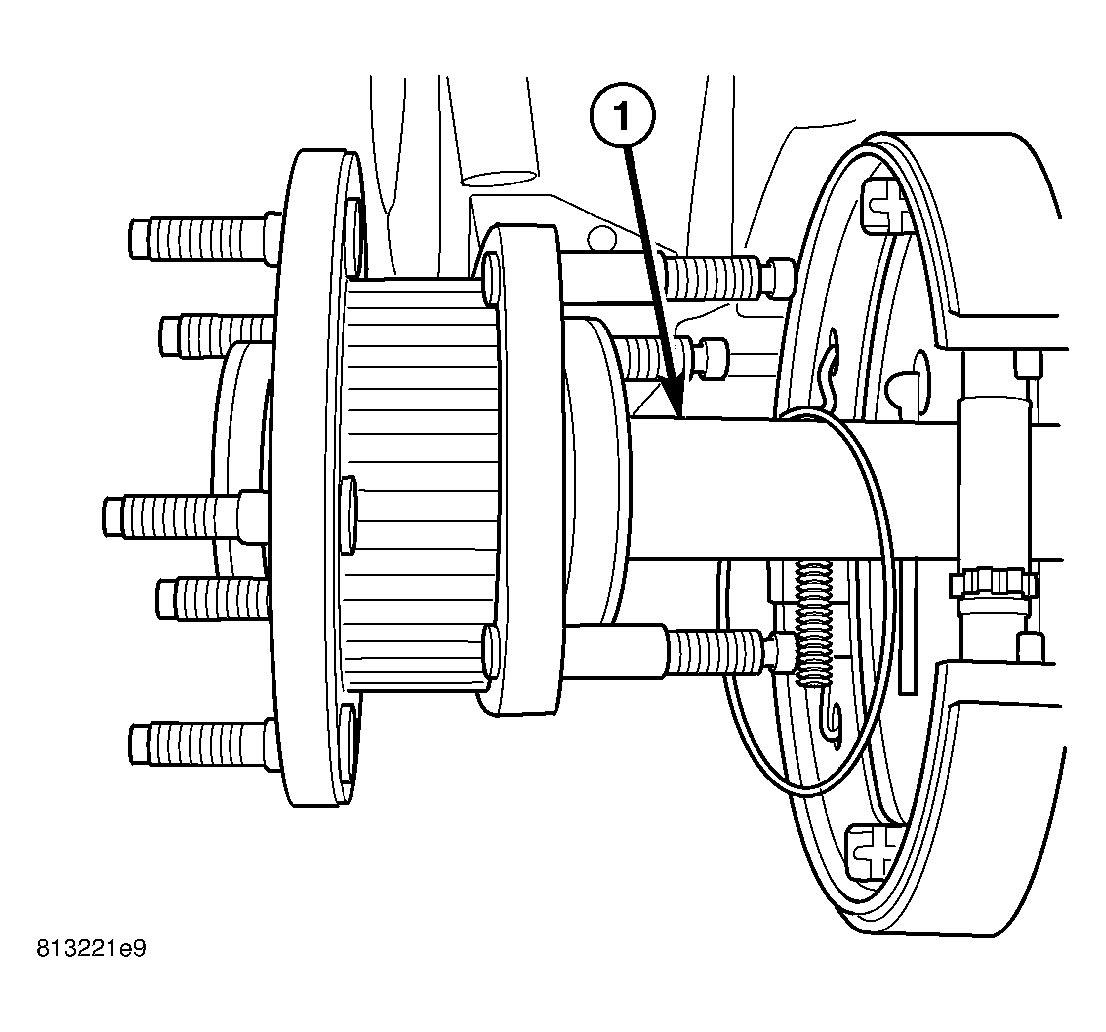

    Fig 5: Axle Shaft
    GC0028592Courtesy of DAIMLERCHRYSLER CORP.
  8. Slide axle shaft (1) from axle tube and backing plate.
  9. Tap axle shaft out of the wheel flange and axle bearing through the plug hole with a hammer and brass drift.
  10. Remove axle flange bolts.
