Propeller Shaft-Rear: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

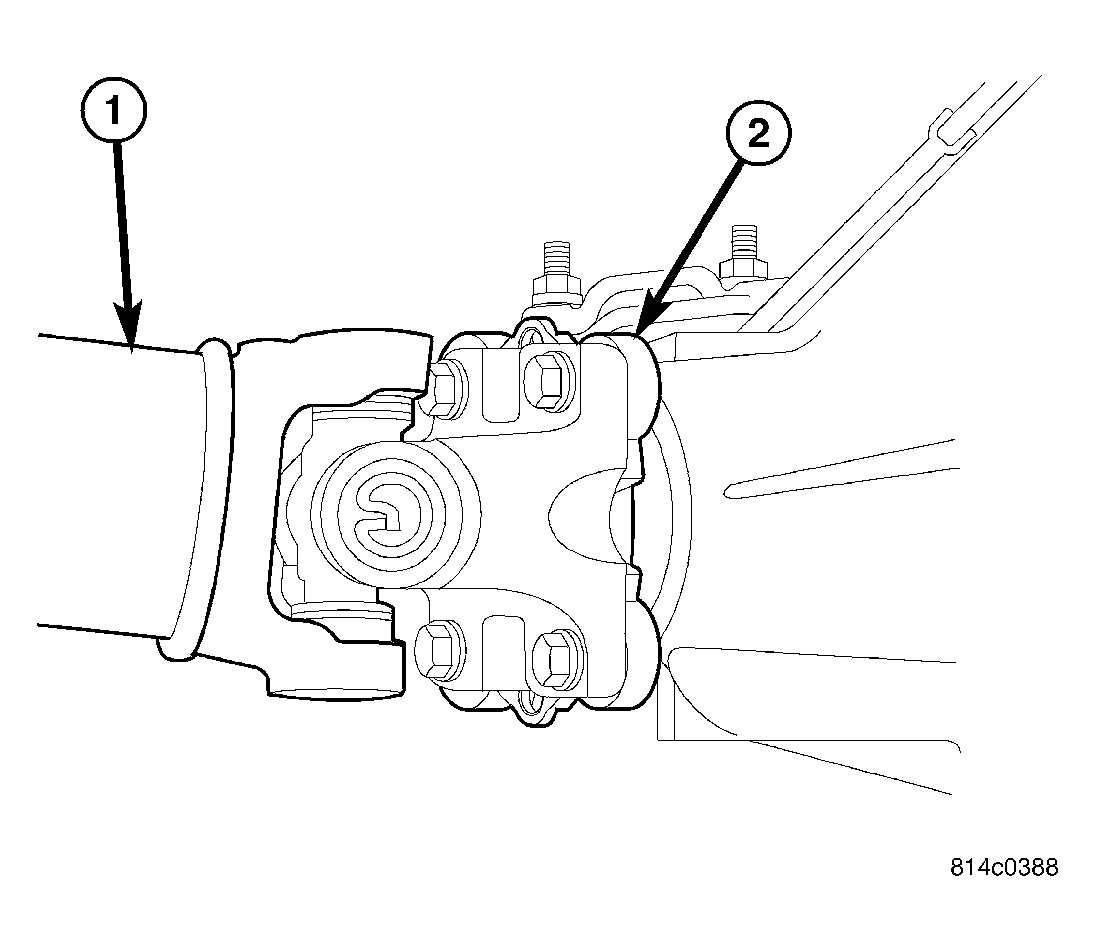

Fig 1: Companion Flange
GC0028381Courtesy of DAIMLERCHRYSLER CORP.
NOTE: The propeller shaft slip joint boot can be replaced. Place reference marks on both sections of the shaft to ensure proper assemble.
  1. With vehicle in neutral, position vehicle on hoist.
  2. Mark the propeller shaft (1) pinion flange (2), transmission/transfer case flanges and for installation reference.
    Fig 2: Pinion Flange
    GC0028379Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove propeller shaft (1) from axle pinion flange (2).
    Fig 3: Transmission/Transfer Case Flange
    GC0028380Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove propeller shaft (1) from vehicle transfer case flange (2) or transmission flange (3).
  5. Remove propeller shaft from vehicle.
