Propeller Shaft-Rear: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

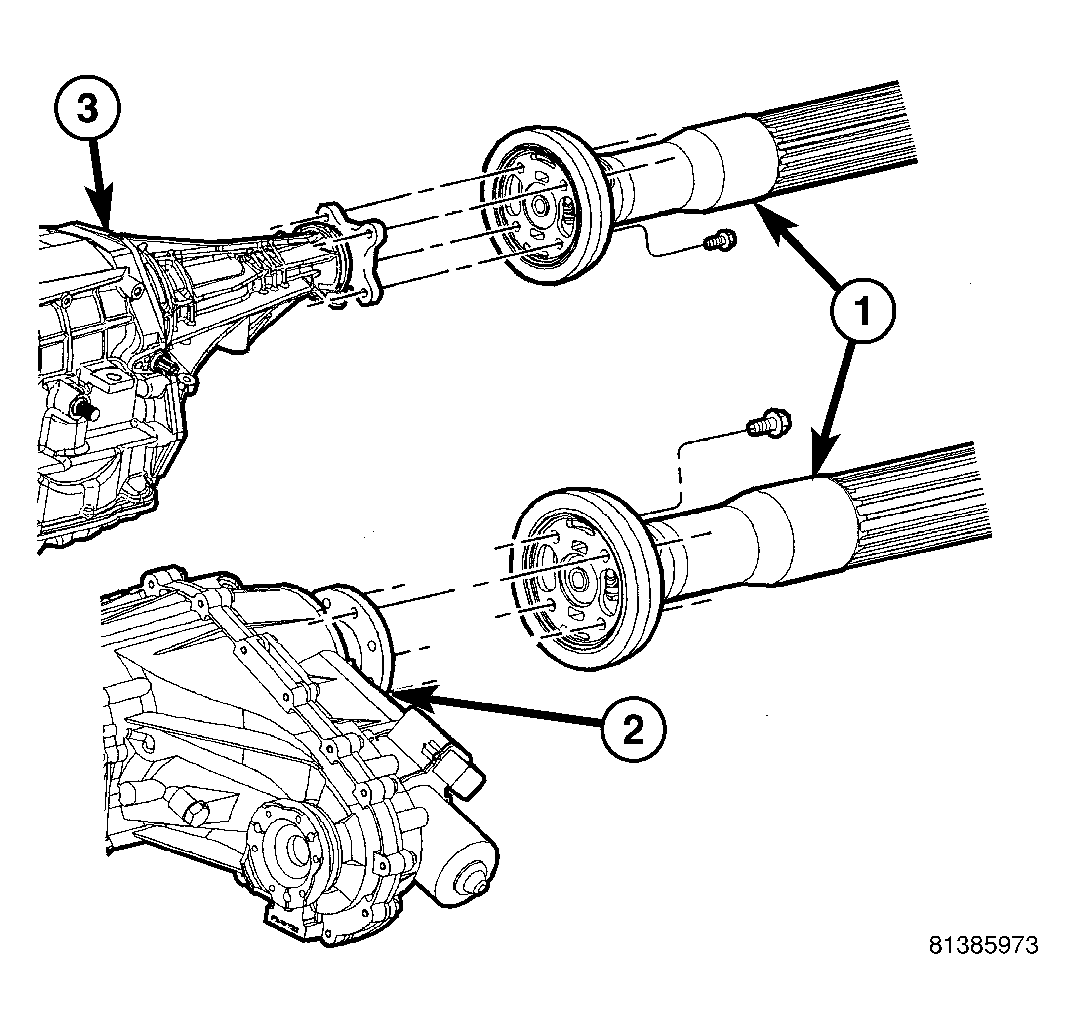

Fig 1: Transmission/Transfer Case Flange

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Inspect propeller shaft boot for damage and replace if necessary.

Install propeller shaft (1) with all reference marks aligned.
Install shaft (1) on transfer case (2) or transmission (3) with reference marks aligned and tighten flange bolts to 108 N.m (80 ft. lbs.).

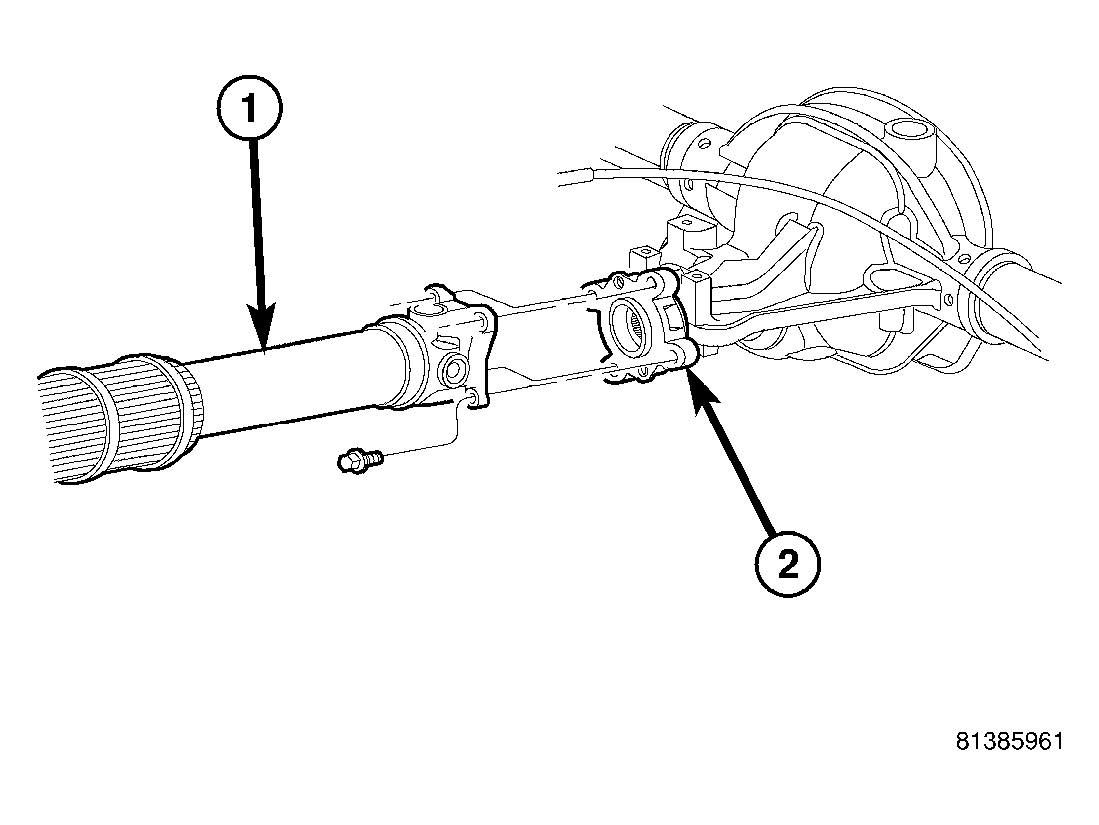

Fig 2: Pinion Flange
Courtesy of DAIMLERCHRYSLER CORP.
Install axle pinion flange (2) bolts and tighten to 108 N.m (80 ft. lbs.).
