Propeller Shaft-Front: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

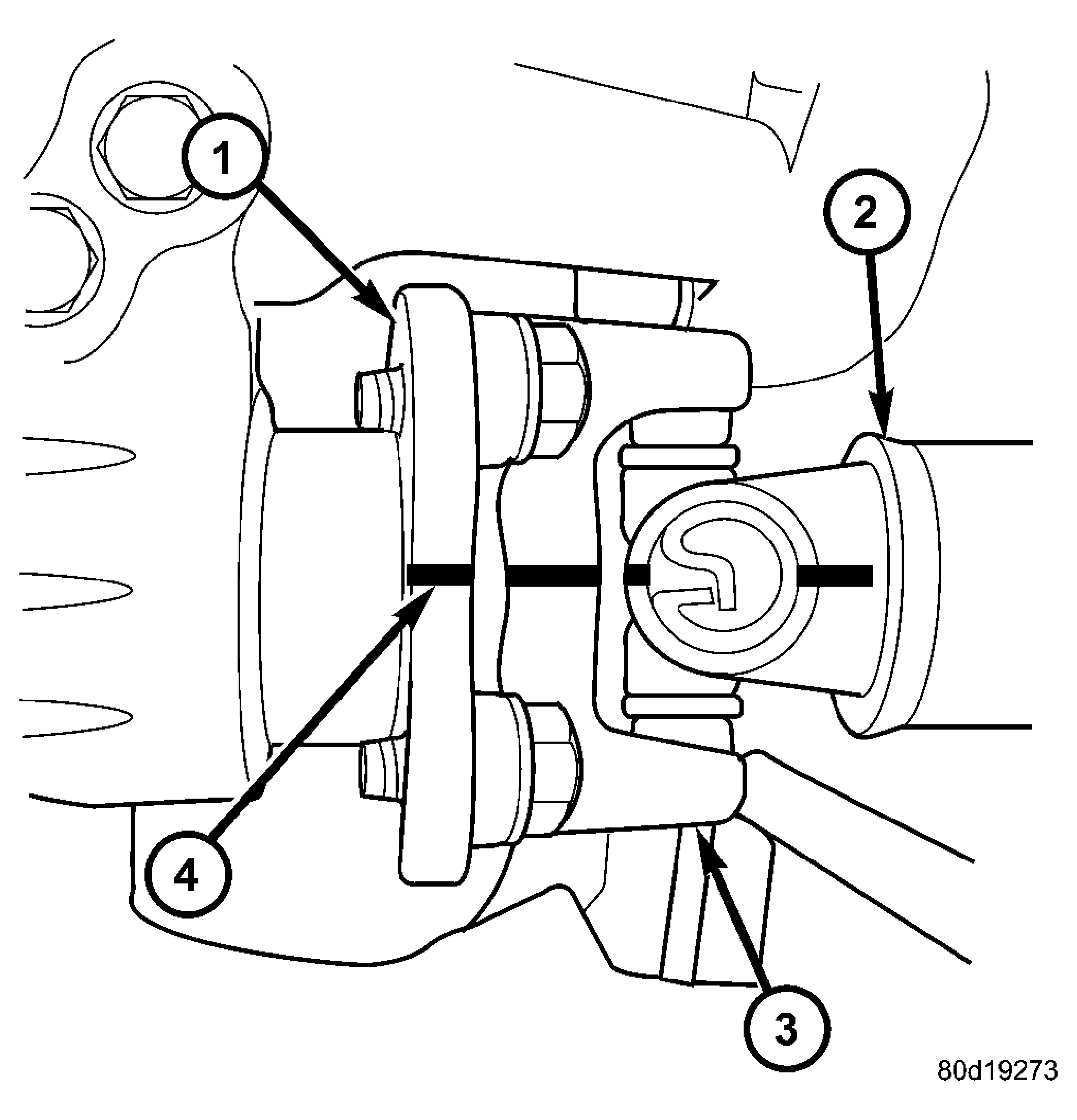

Fig 1: Companion Flange Installation Reference Mark
GC0007713Courtesy of DAIMLERCHRYSLER CORP.
  1. With vehicle in neutral, position vehicle on hoist.
  2. Mark a line across the axle pinion flange (1), propeller shaft (2), flange yoke (3) and transfer case for installation reference.
  3. Support the transmission and the transmission crossmember.

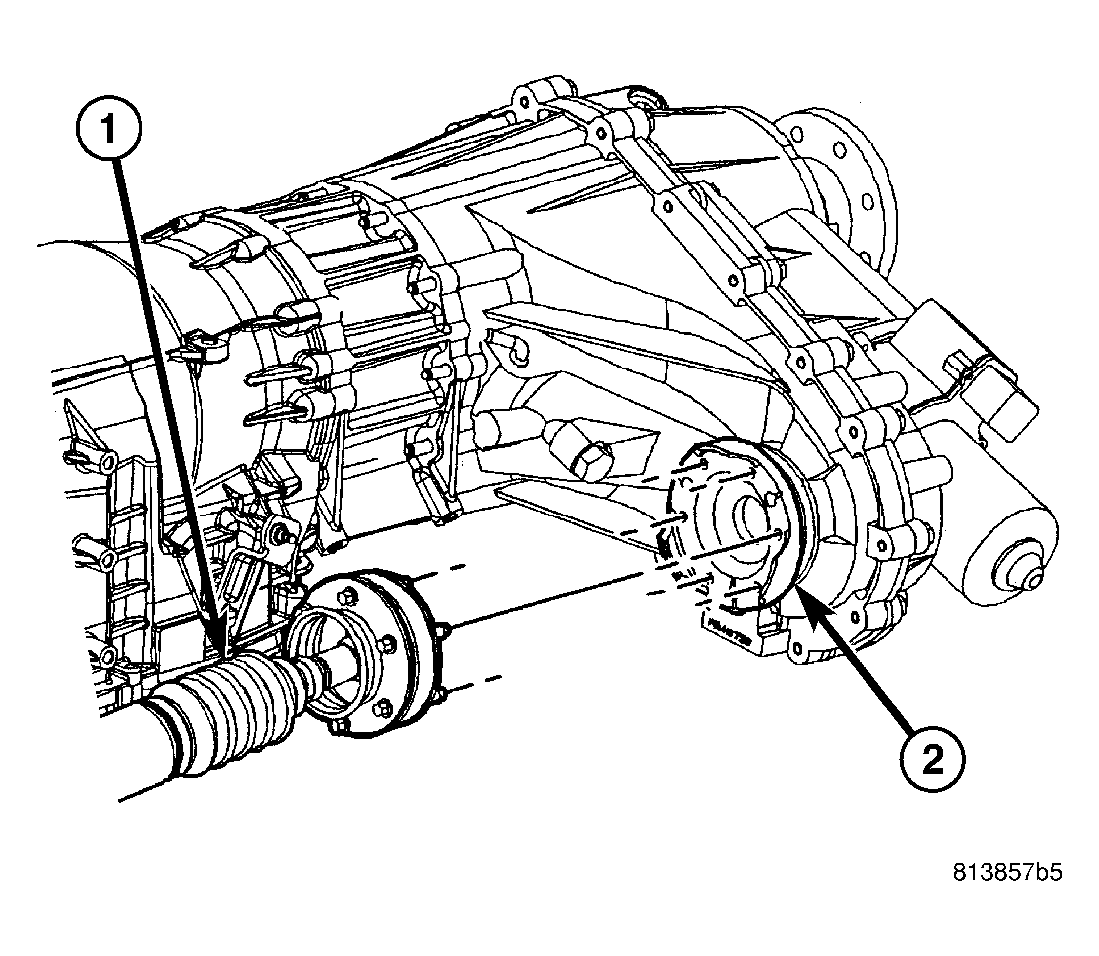

    Fig 2: Transfer Case Flange
    GC0028378Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove propeller shaft (1) from transfer case flange (2).

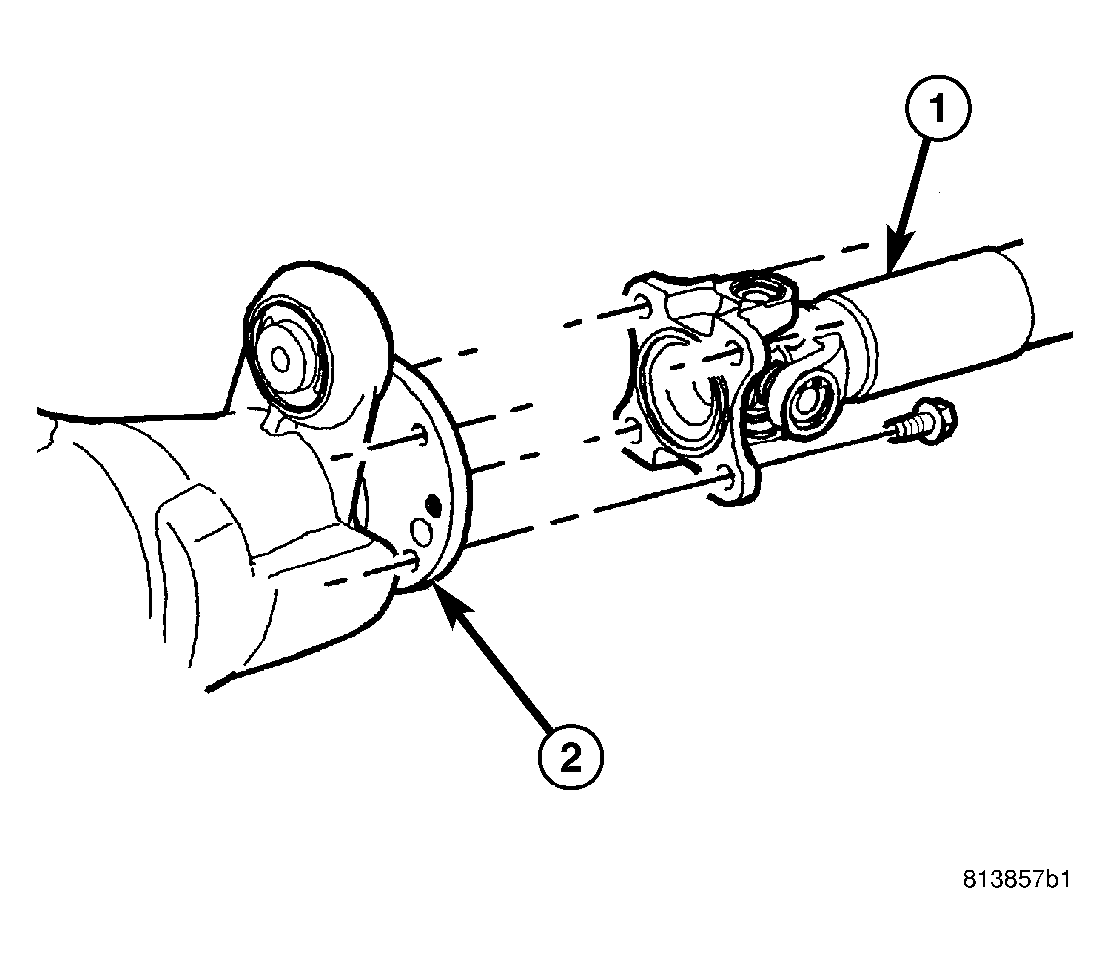

    Fig 3: Pinion Flange
    GC0028377Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove propeller shaft (1) from axle pinion flange (2).
