CV Joint/Boot-Inner: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

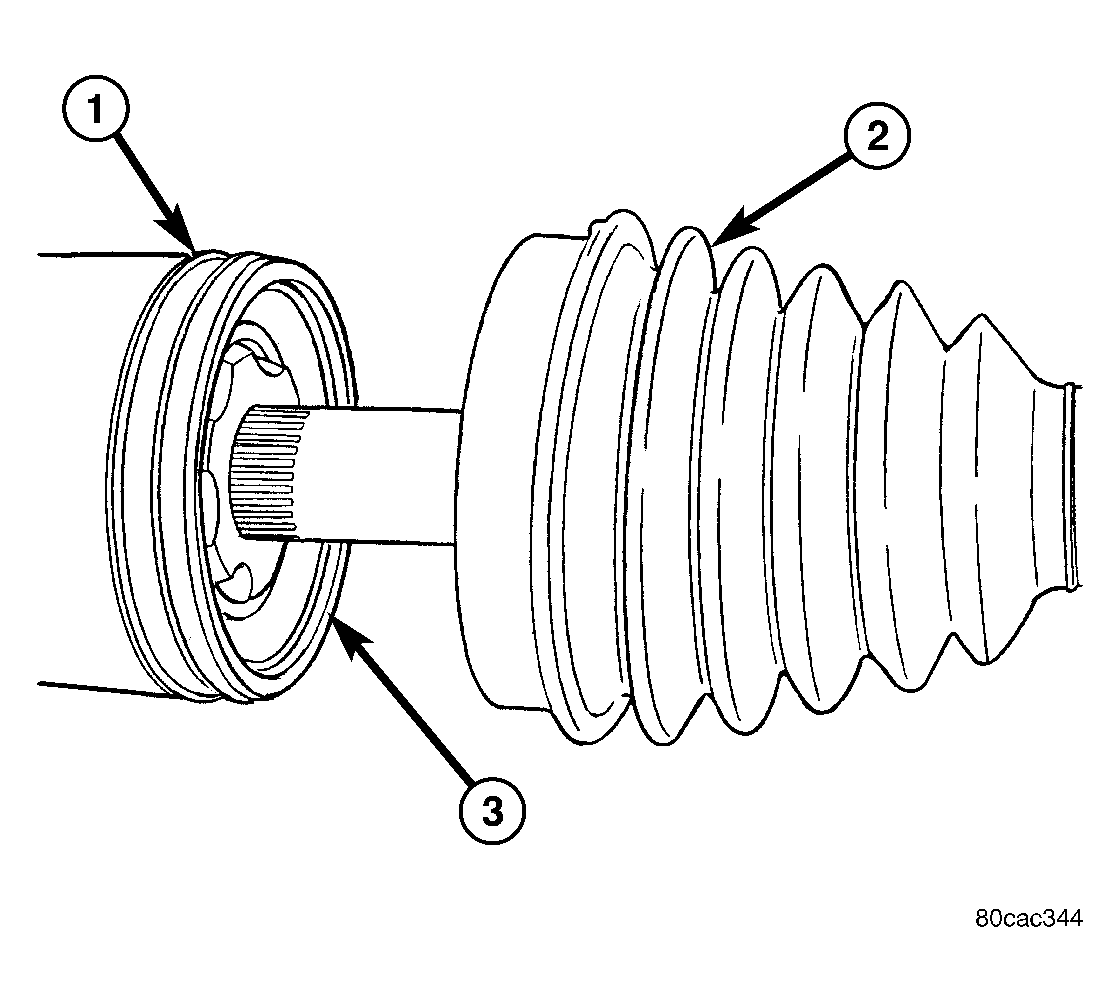

Fig 1: Inner C/V Boot

Courtesy of DAIMLERCHRYSLER CORP.

Clamp shaft in a vise (with soft jaws) and support C/V joint (1).
Remove clamps with a cut-off wheel or grinder.
Slide boot down (2) the shaft.

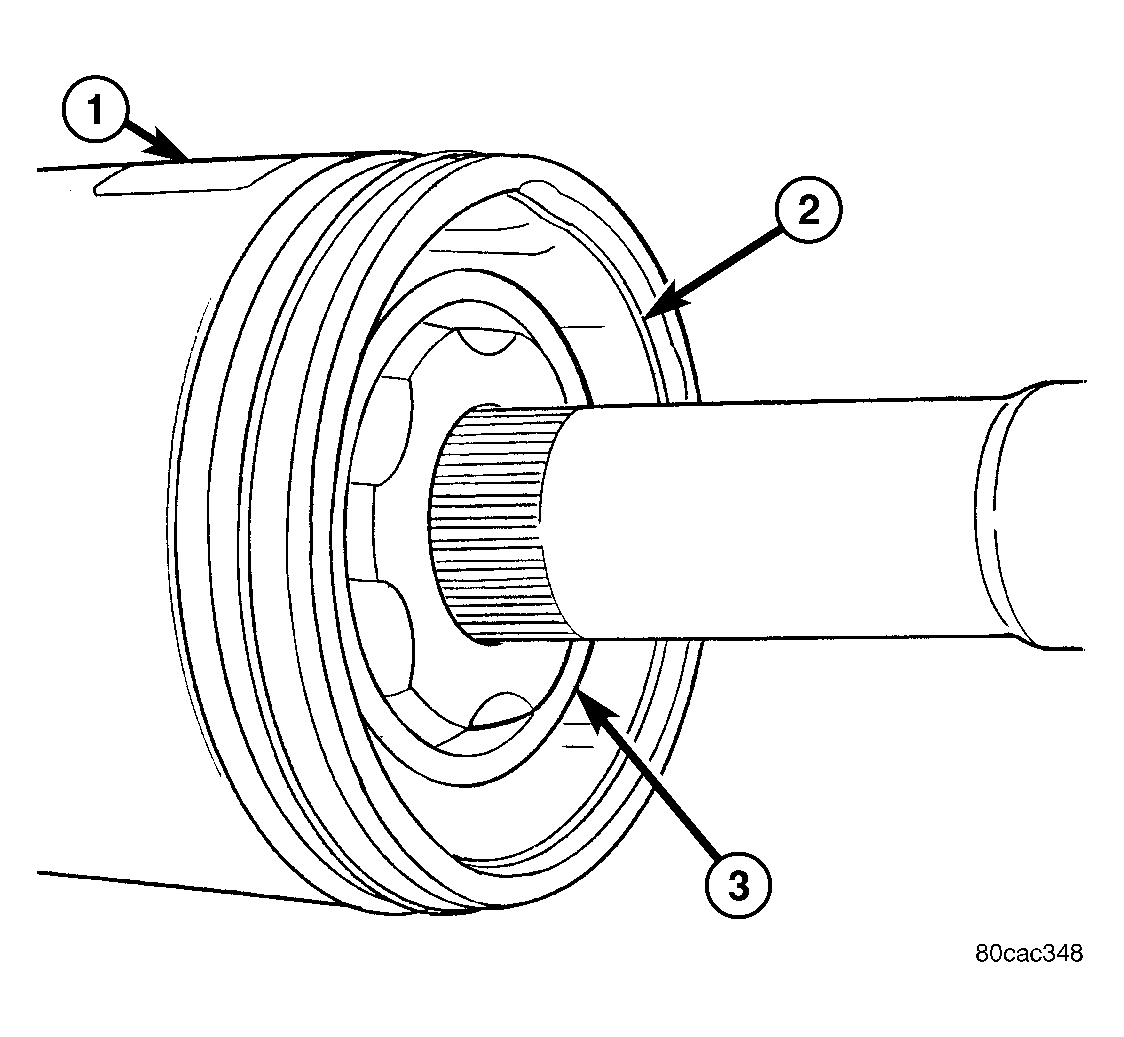

Fig 2: Housing Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.
Remove lubricant from housing (1) to expose the C/V snap ring (2) and remove snap ring.

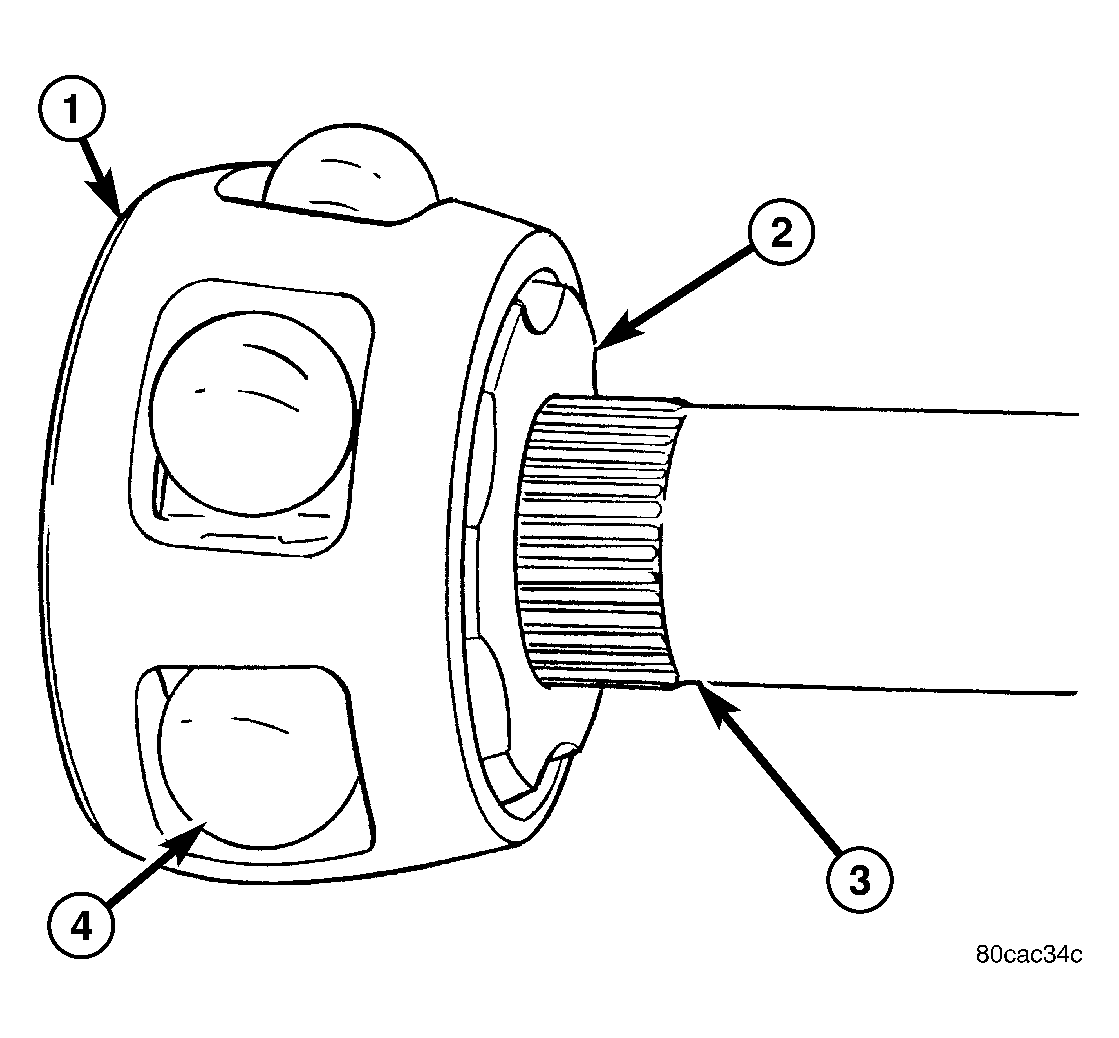

Fig 3: C/V Bearings
Courtesy of DAIMLERCHRYSLER CORP.
Remove bearings (4) from the cage (1).
Rotate cage (1) 30° and slide cage off the inner race (2) and down the shaft (3).

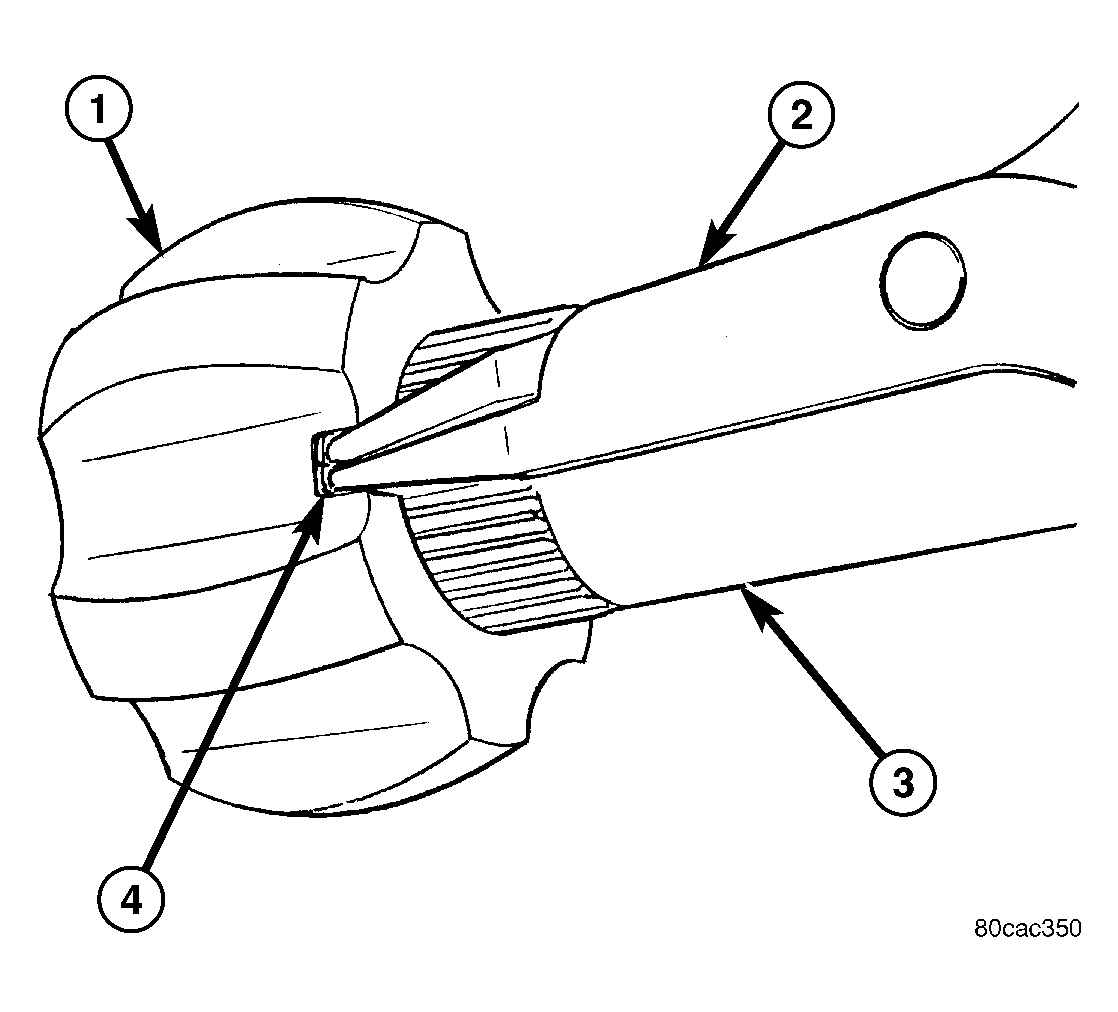

Fig 4: Inner Race
Courtesy of DAIMLERCHRYSLER CORP.
Remove spread inner race (1) snap ring (4) and remove race (1) from the shaft (3).
Remove boot from the shaft and discard.

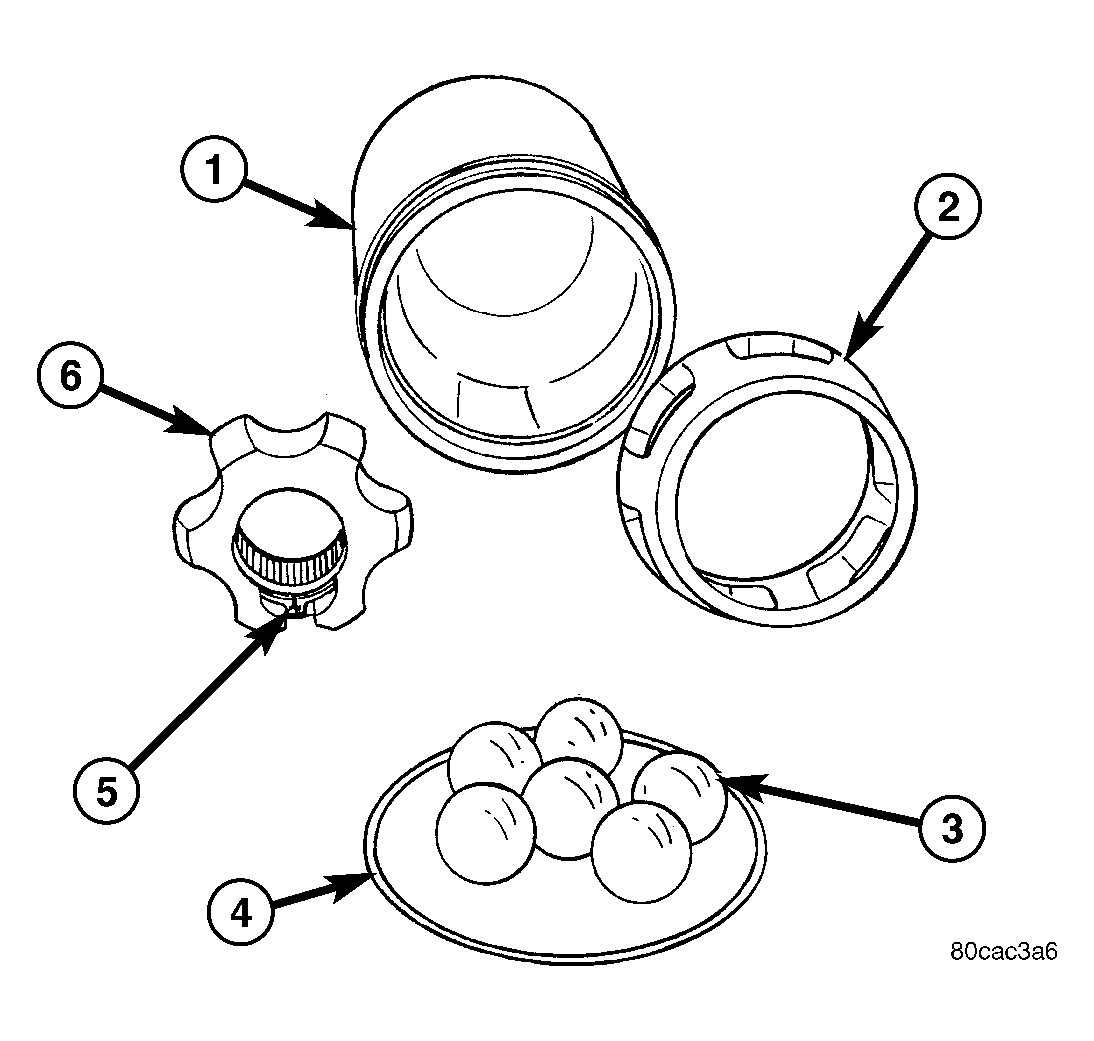

Fig 5: Inner C/V Joint
Courtesy of DAIMLERCHRYSLER CORP.
Clean and inspect housing (1), cage (2), bearings (3), housing snap-ring (4), inner race snap-ring (5) and inner race (6) for wear or damage.
