CV Joint/Boot-Inner: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

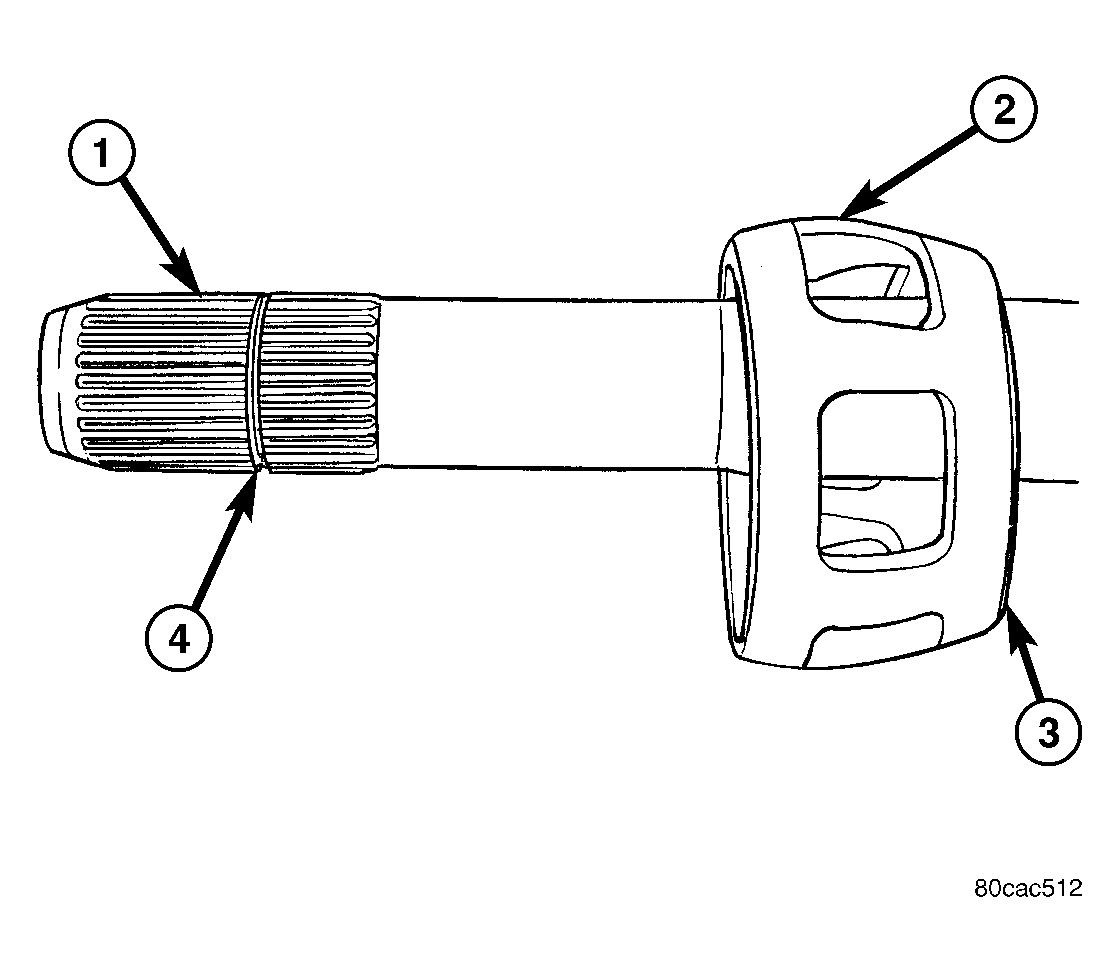

Fig 1: Cage
GC0028389Courtesy of DAIMLERCHRYSLER CORP.
  1. Apply a coat of grease supplied with the joint/boot to the C/V joint components before assembling them.
  2. Place new clamps on the new boot and slide boot down the shaft.
  3. Slide cage (2) onto the shaft (1) with the small diameter (3) end towards the boot.

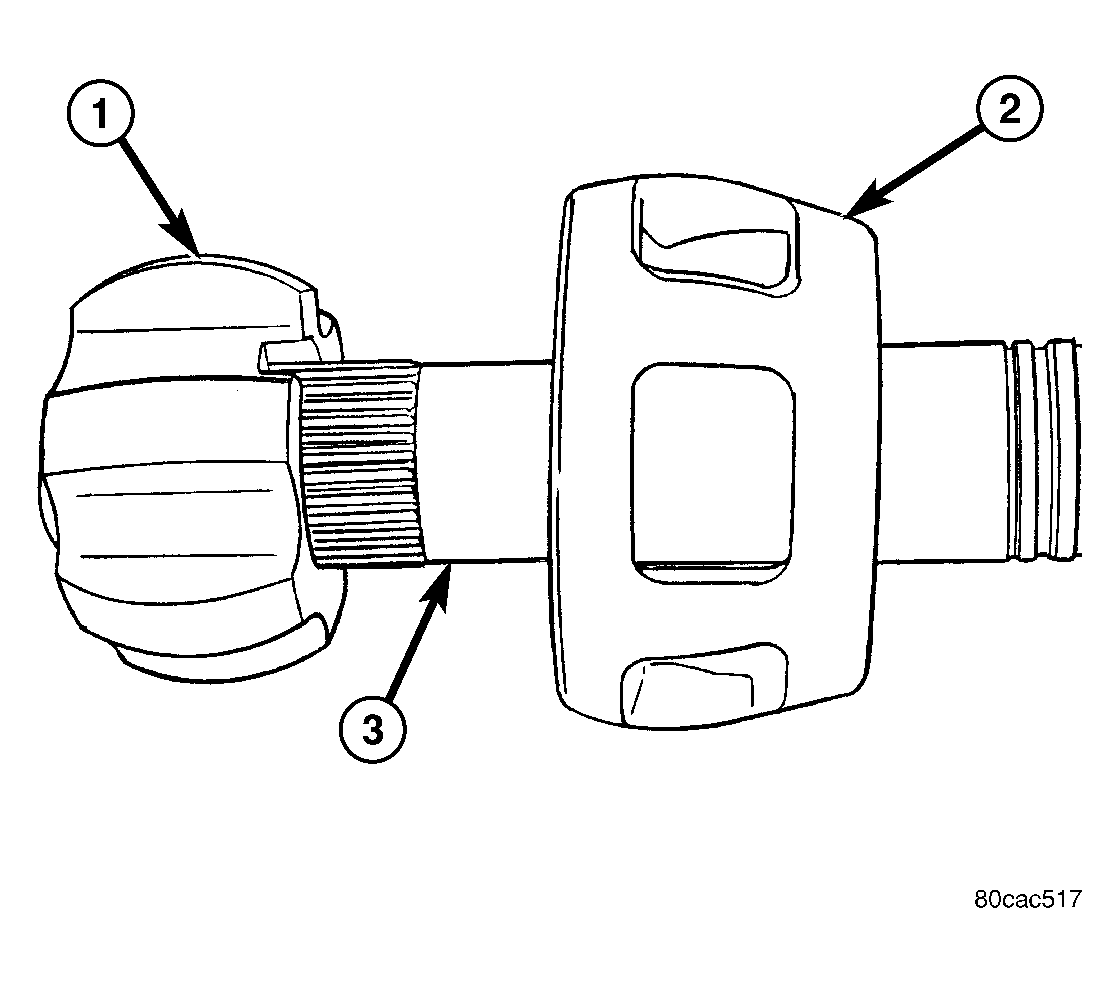

    Fig 2: Inner Race
    GC0028390Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the inner race (1) onto the shaft (3). Pull on the race to verify snap ring has engaged.

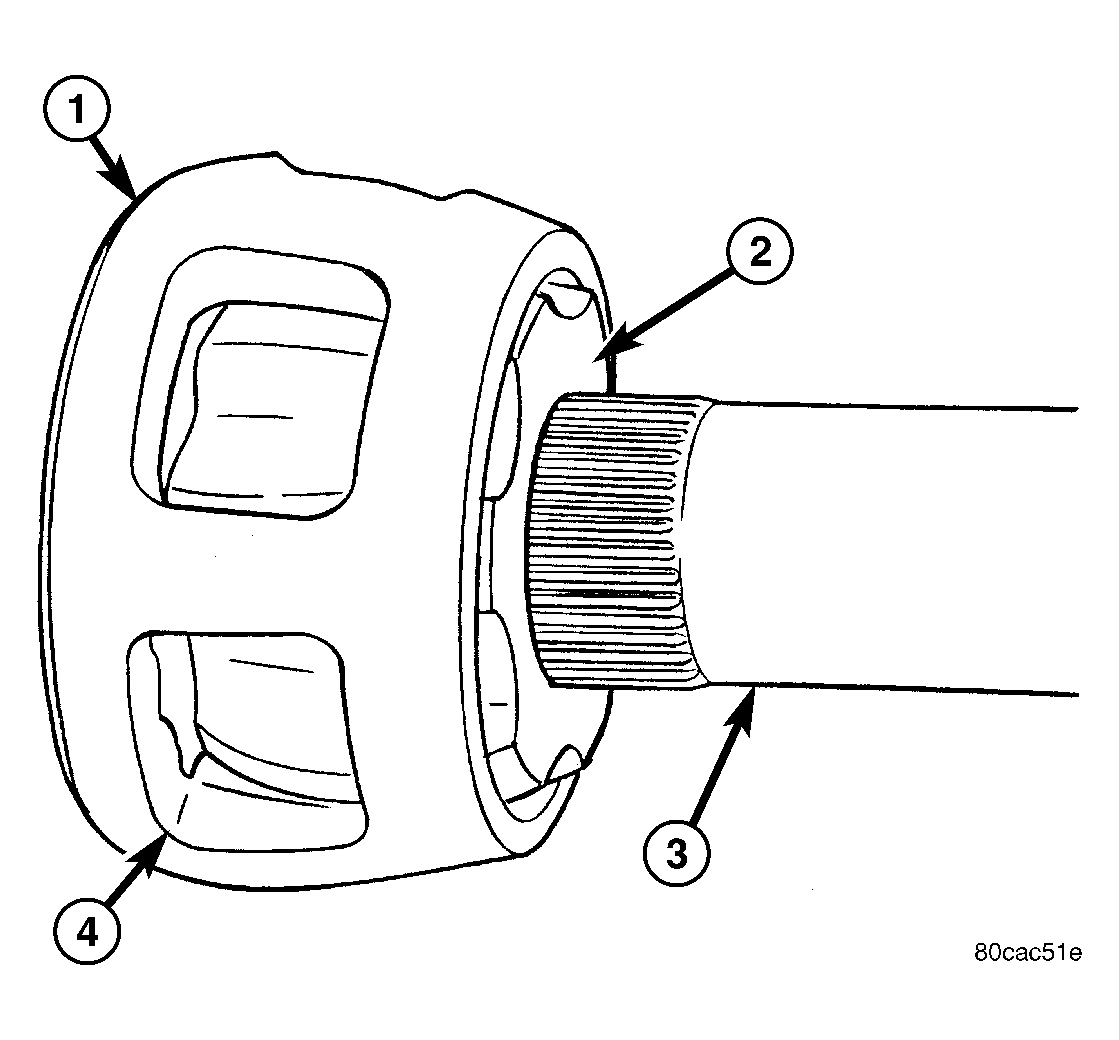

    Fig 3: Cage/Inner Race
    GC0028391Courtesy of DAIMLERCHRYSLER CORP.
  5. Align cage (1) with the inner race (2) and slide over the race.
  6. Turn the cage 30° to align the cage windows (4) with the race (2).

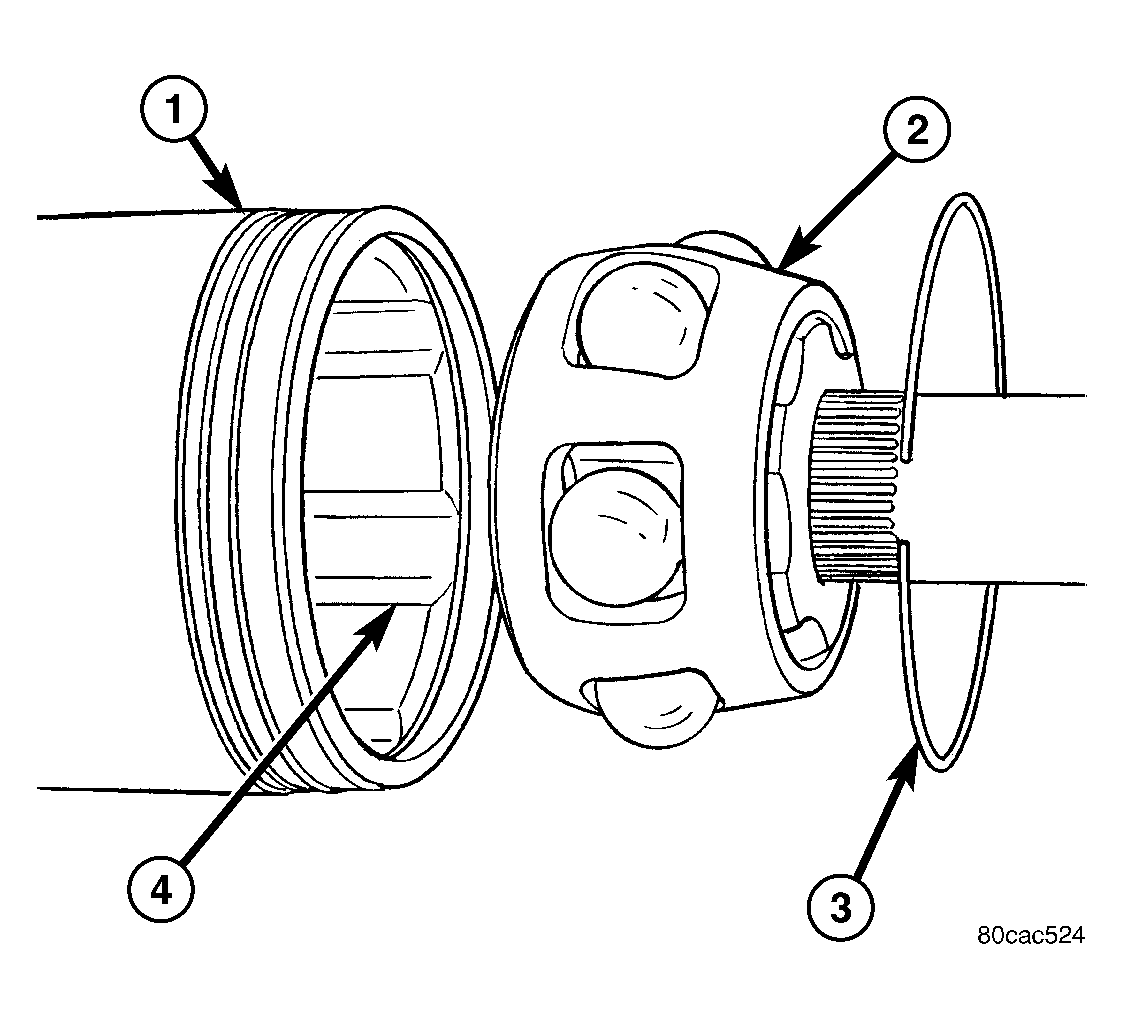

    Fig 4: C/V Components
    GC0028392Courtesy of DAIMLERCHRYSLER CORP.
  7. Apply grease to the inner race and bearings and install the bearings.
  8. Apply grease to the housing bore (4) then install the bearing assembly (2) into the housing (1).
  9. Install the housing snap ring (3) and verify it is seated in the groove.
  10. Fill the housing and boot with the remaining grease.
  11. Slide the boot onto the C/V housing into it's original position. Ensure boot is not twisted and remove any excess air.
  12. Secure both boot clamps with Clamp Installer C-4975A. Place tool on clamp bridge and tighten tool until the jaws of the tool are closed.
