CV Boot-Outer: Removal
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.

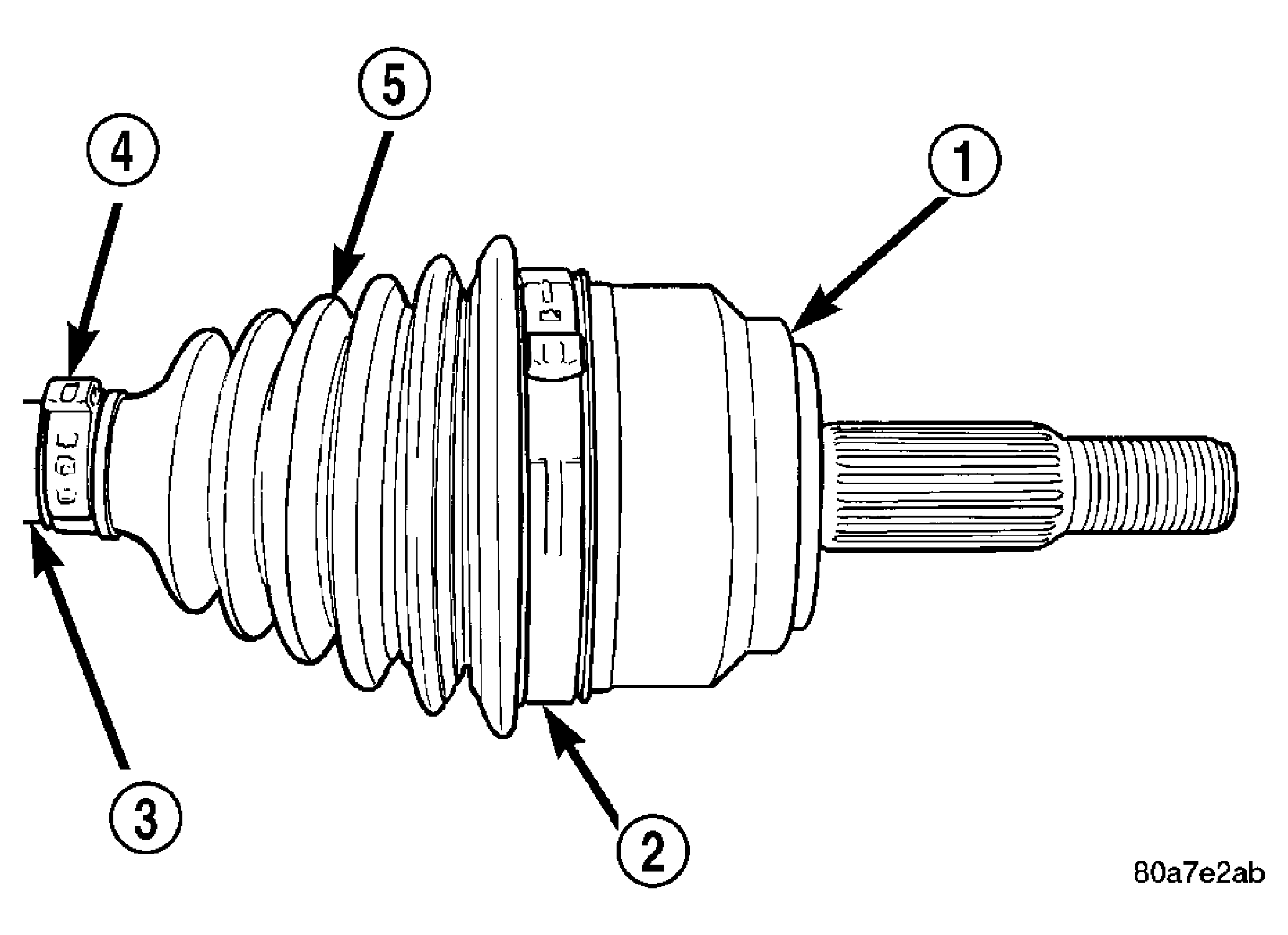

| 1 - C/V HOUSING |
| 2 - CLAMP |
| 3 - HALF SHAFT |
| 4 - CLAMP |
| 5 - C/V BOOT |
NOTE:
CV joint is serviced with the shaft, the boot can be serviced separately
- Remove inner CV boot and joint.
- Cut outer CV boot (5) clamps (2) (4).
- Cut boot off CV housing (1) and shaft (3).
