CV Boot-Outer: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.

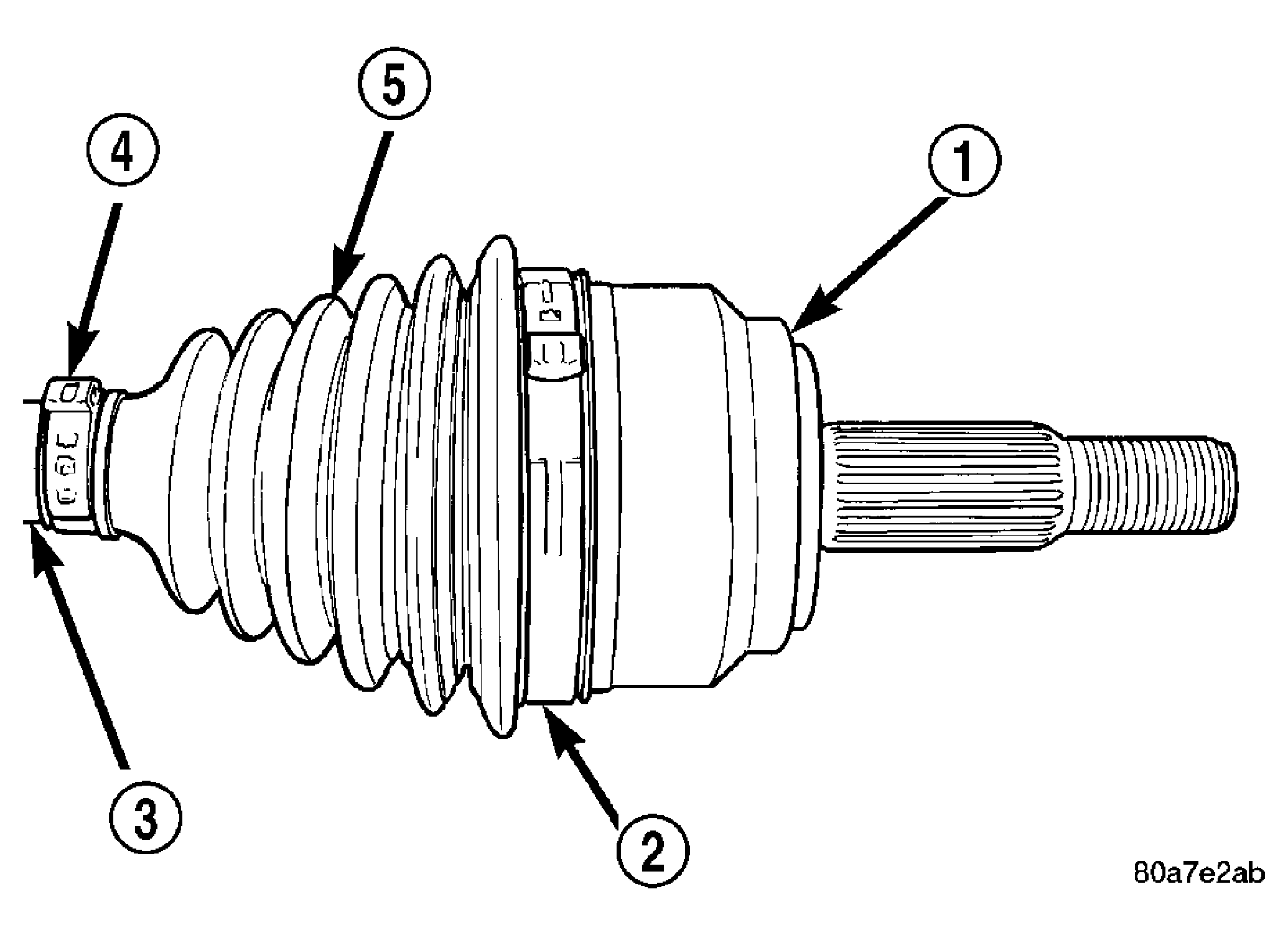

| 1 - C/V HOUSING |
| 2 - CLAMP |
| 3 - HALF SHAFT |
| 4 - CLAMP |
| 5 - C/V BOOT |
- Clean the CV joint then apply new grease to the joint.
- Slid the new boot (5) on to the shaft (3) and on the CV housing (1).
- Install boot clamps (2) (4) in original locations.
- Install inner CV joint and boot,
