Front Axle - C200FE: Differential-ELSD: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Axle Tube Bolts

Courtesy of DAIMLERCHRYSLER CORP.

Remove half shafts and axle shaft.
Remove differential cover.
Remove three axle tube (1) mounting bolts (2) from differential housing (3).
Tap axle tube (1) and pull tube off differential housing (3) flange.
Bolt spreader Adapters 9669 to differential housing (2).
Install Spreader W-129-B on adapters.
Spread case .3 mm (0.011 in.).

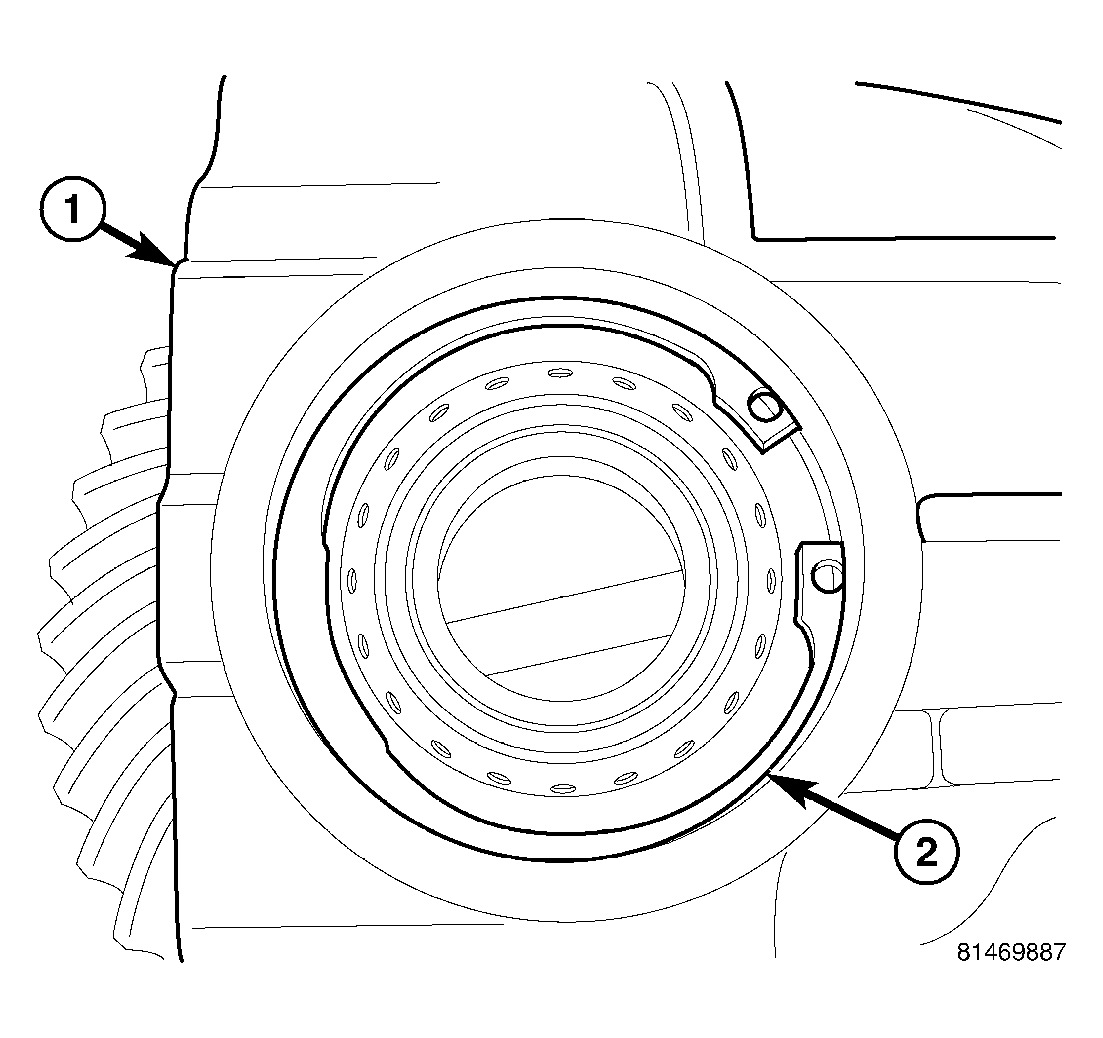

Fig 2: Right Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.
Remove differential housing seal with seal pick.
Remove differential housing (1) snap ring (2).

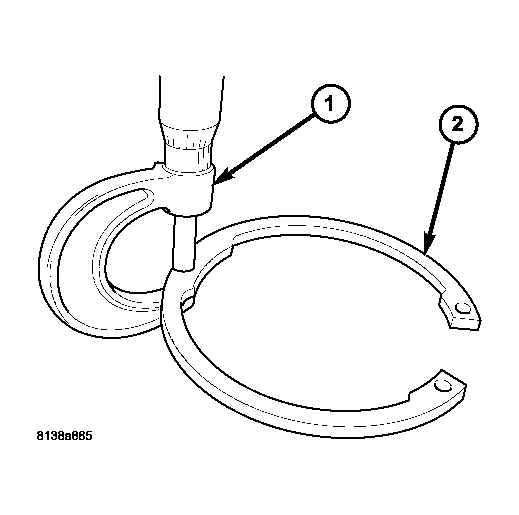

Fig 3: Measuring Side Bearing Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.
Measure (1) snap ring (2) and mark ring for location.

Fig 4: Solenoid Connector
Courtesy of DAIMLERCHRYSLER CORP.
Remove solenoid valve connector (1) from ELSD solenoid valve (2).

Fig 5: Bearing Cap Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove differential bearing cap bolts (1) and cap (2).

Fig 6: Left Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.
Remove axle tube side differential housing (1) snap ring (2).

Fig 7: Measuring Side Bearing Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.
Measure (1) snap ring (2) and mark ring for location.

Fig 8: Differential Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Slid differential assembly (1) to the right and tilt ELSD pump (2) and differential out of the housing.
