Pinion Depth Measurement

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: L-Block, Gage Block and Bearing

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Take measurement with pinion shim removed and rear bearing cup in place.

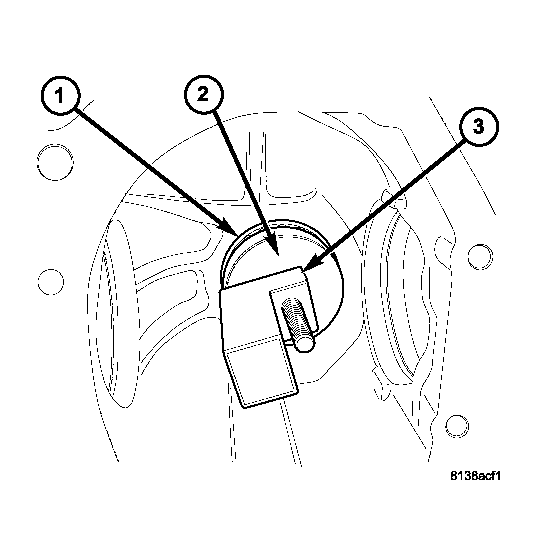

Install Pinion Height Block 6739 (3), Pinion Block 9534 (2), and pinion head bearing cone (1) onto Screw 6741. Install assembly into axle housing and through bearing and cups.
Install pinion front bearing and Cone 6740. Tighten Cone 6740 by hand until 3.4 N.m (30 in. lbs.) of rotating torque is measured at Screw 6741.

Fig 2: Arbor Discs
Courtesy of DAIMLERCHRYSLER CORP.

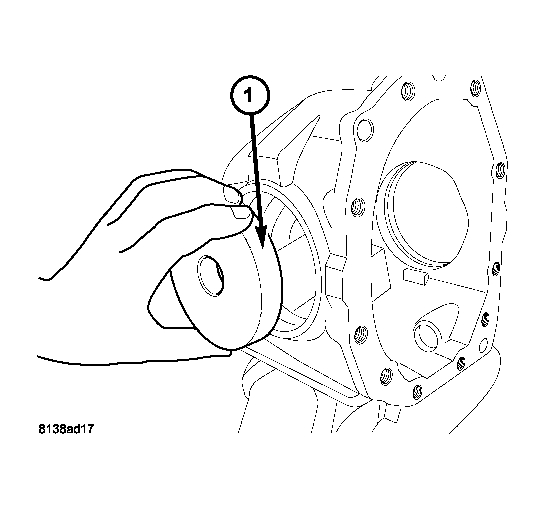

Install Arbor Discs 9538 (1).

Fig 3: Remove/Install Arbor Bar
Courtesy of DAIMLERCHRYSLER CORP.

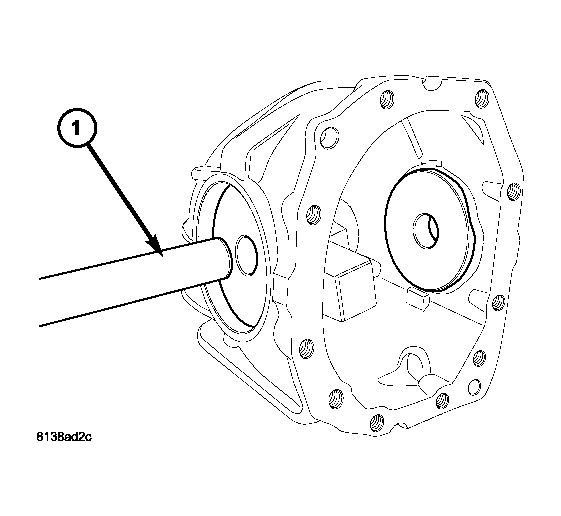

Install Arbor Bar D-115-3 (1).

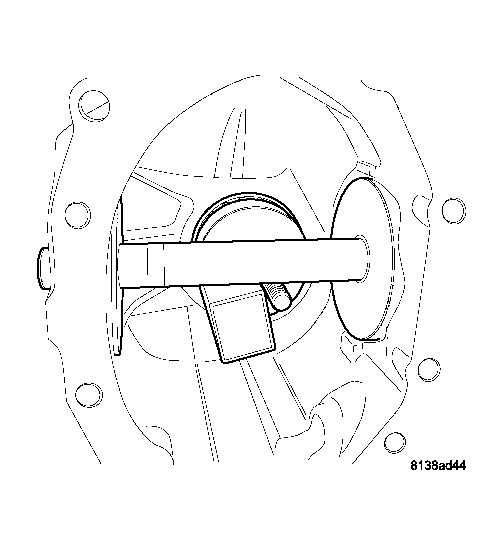

Fig 4: Pinion Gage Setup
Courtesy of DAIMLERCHRYSLER CORP.
Verify pinion depth setup is as shown in illustration.

Fig 5: Indicator/Scooter Block Setup
Courtesy of DAIMLERCHRYSLER CORP.

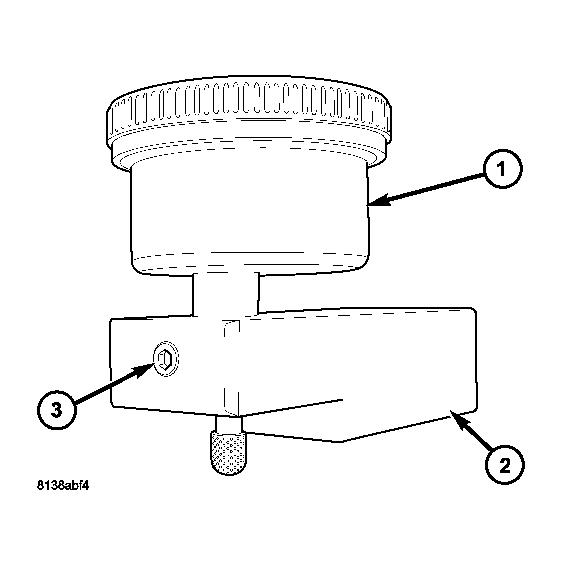

Install Dial Indicator 9524 (1) to Scooter Block D-115-2A (2). Secure with set screw (3).

Fig 6: Zero Dial Indicator on L-Block
Courtesy of DAIMLERCHRYSLER CORP.

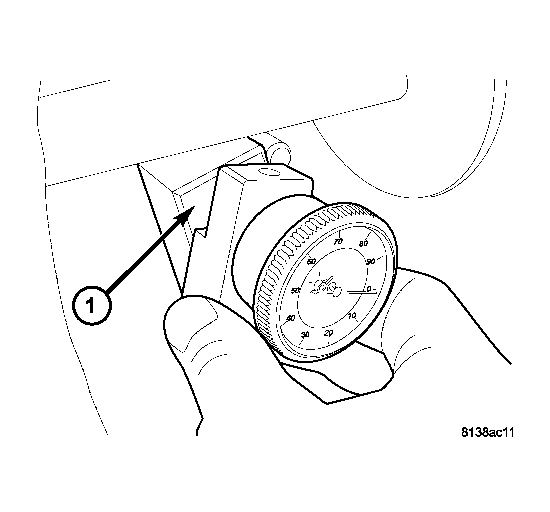

Install Indicator/Block assembly to top of Height Block 6739 (1). Zero indicator on top surface.

Fig 7: Measure and Record Required Shim
Courtesy of DAIMLERCHRYSLER CORP.

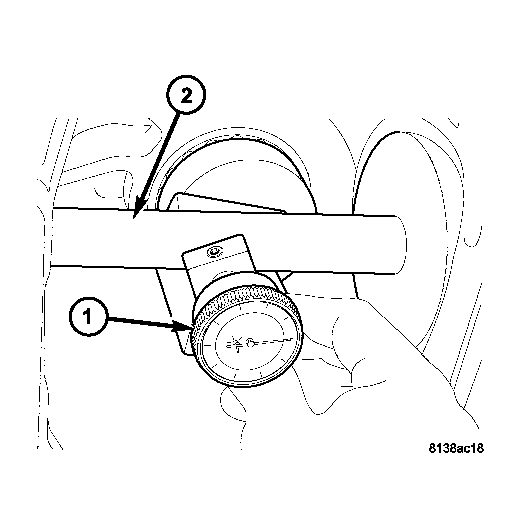

Slide indicator probe off of height block and onto Arbor Bar D-115-3 (2). As indicator contacts Arbor Bar (2), indicator needle will rotate clockwise. Continue moving indicator probe to the crest of the arbor bar and record the highest reading. Then add 4 mm (0.157 in.) to the recorded reading. This will give you the correct shim selection for pinion height.
