Front Axle - C200F: Differential: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Axle Tube Bolts
GC0028450Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove half shafts and axle shaft.
  2. Remove differential cover.
  3. Remove three axle tube (1) mounting bolts (2) from differential housing (3).
    Fig 2: Axle Tube
    GC0028451Courtesy of DAIMLERCHRYSLER CORP.
  4. Tap axle tube (1) and pull tube off differential housing flange (2).
  5. Remove half shaft differential housing seal with seal pick.

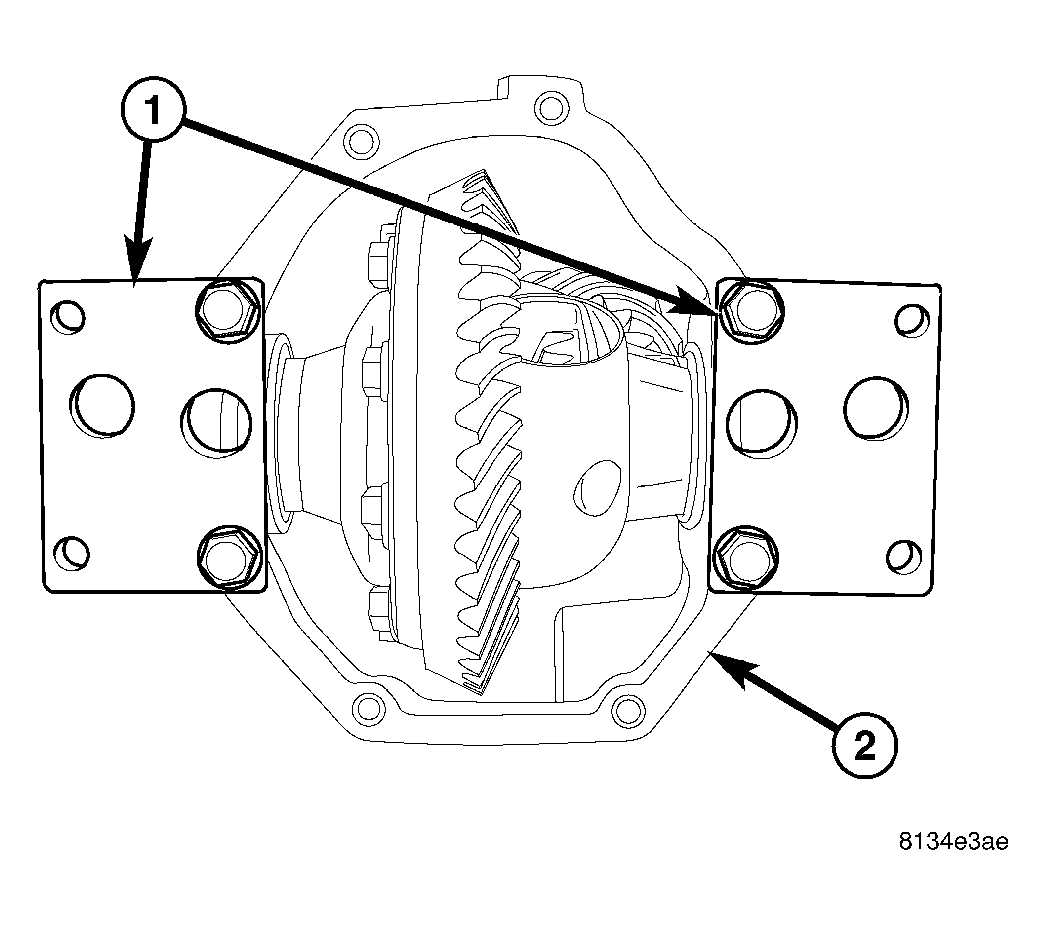

    Fig 3: Spreader Adapters
    GC0028446Courtesy of DAIMLERCHRYSLER CORP.
  6. Bolt spreader Adapters 9669 (1) to differential housing (2).

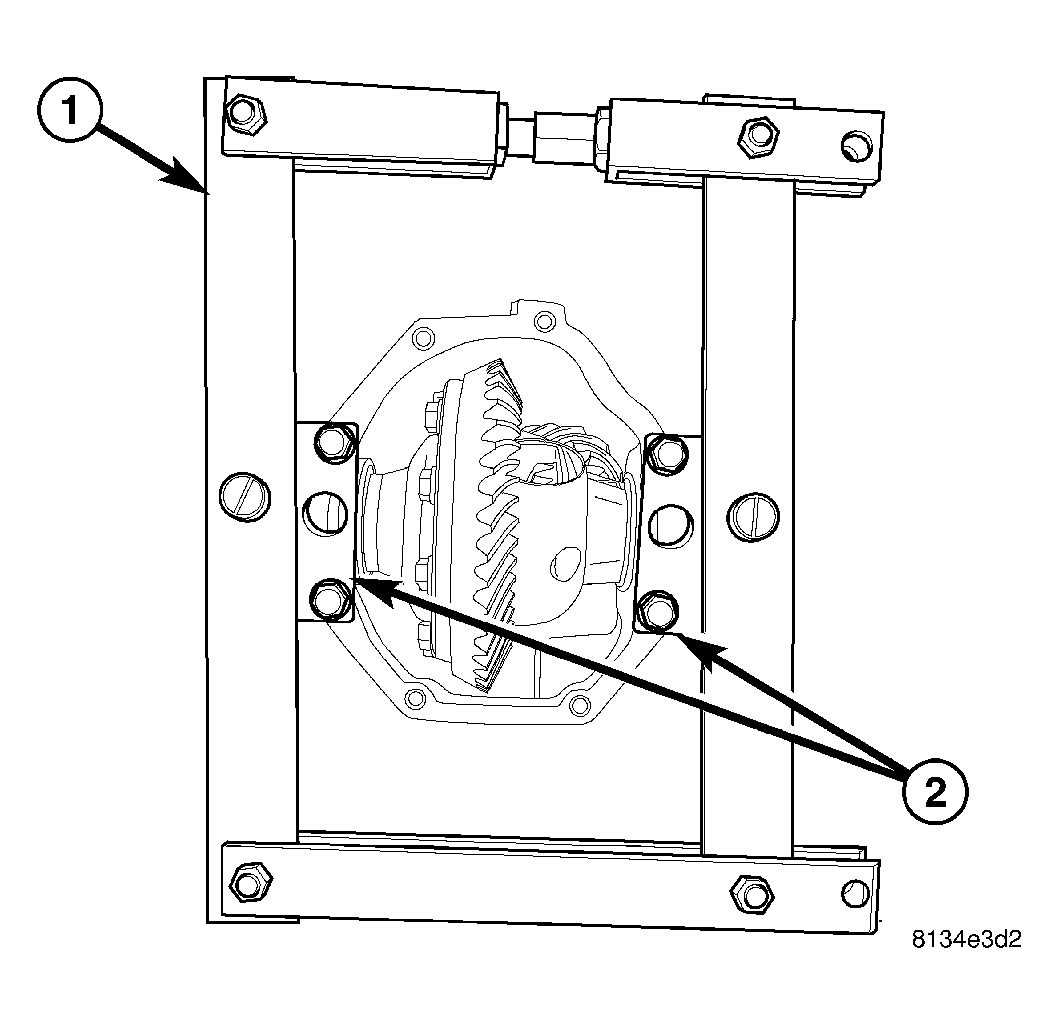

    Fig 4: Spreader
    GC0028447Courtesy of DAIMLERCHRYSLER CORP.
  7. Install Spreader W-129-B (1) on adapters (2).
  8. Spread case .3 mm (0.011 in.).
    Fig 5: Select Snap-Rings
    GC0028448Courtesy of DAIMLERCHRYSLER CORP.
  9. Remove select snap-rings (1) from differential housing bearing bores (2).
    Fig 6: Measuring Side Bearing Snap Ring
    GC0028452Courtesy of DAIMLERCHRYSLER CORP.
  10. Measure select snap-rings (2) and mark the size and location of the snap-rings.

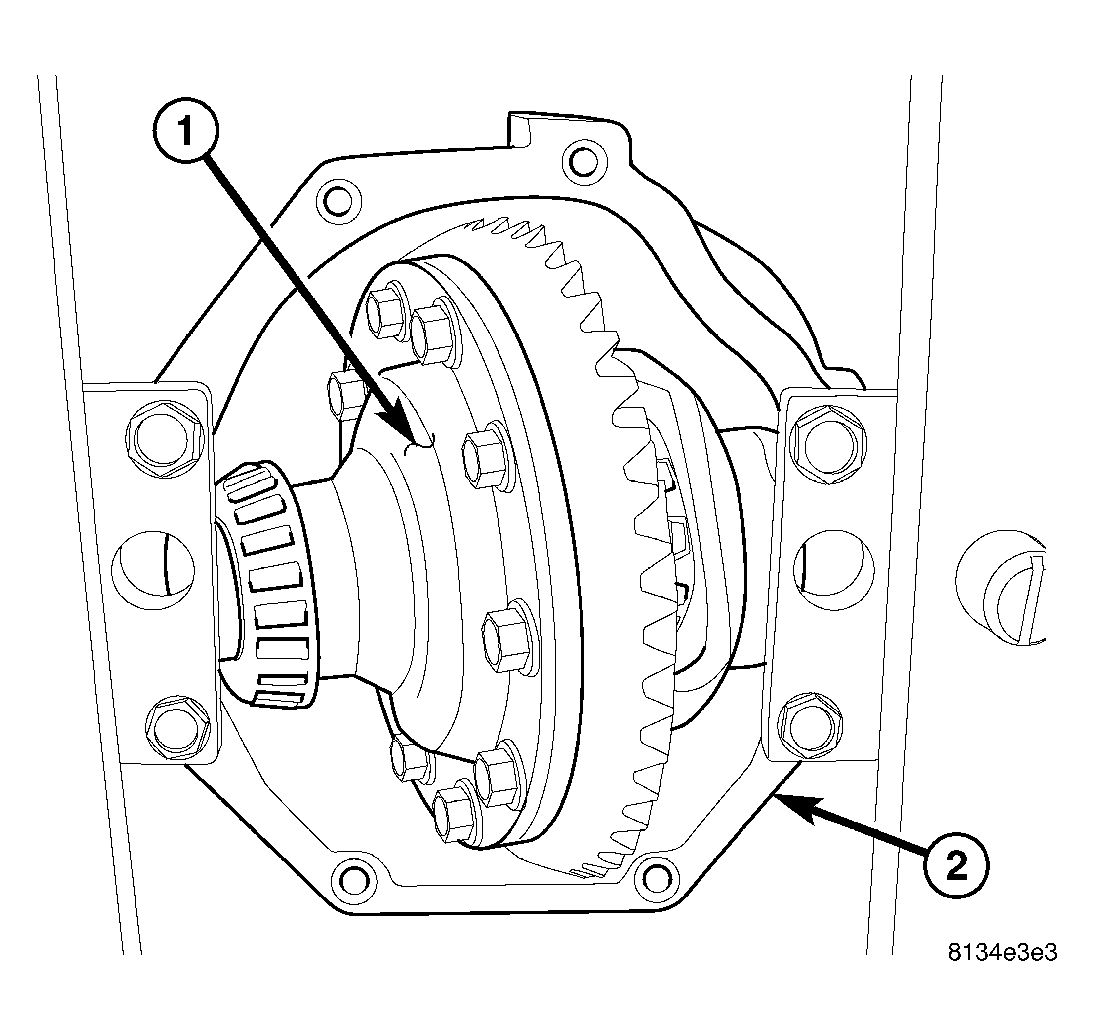

    Fig 7: Differential Case
    GC0028449Courtesy of DAIMLERCHRYSLER CORP.
  11. Tilt differential case (1) out of the housing (2) and remove case.
  12. Loosen spreader.
