Front Axle - C200F: Differential: Disassembly

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

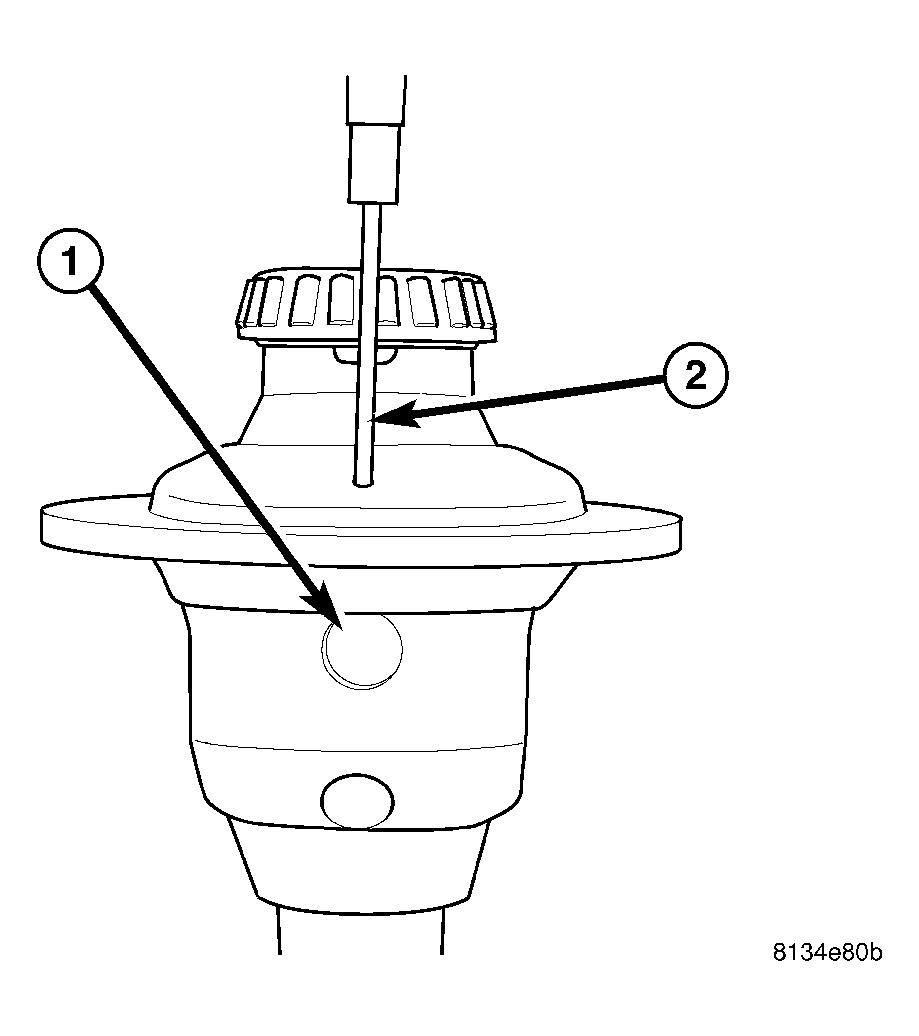

Fig 1: Pinion Shaft Lock Pin
GC0028453Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove left hand thread  ring gear bolts.
  2. Drive ring gear of the case with a soft hammer.
  3. Remove pinion mate shaft (1) lock pin with a punch (2) and hammer.

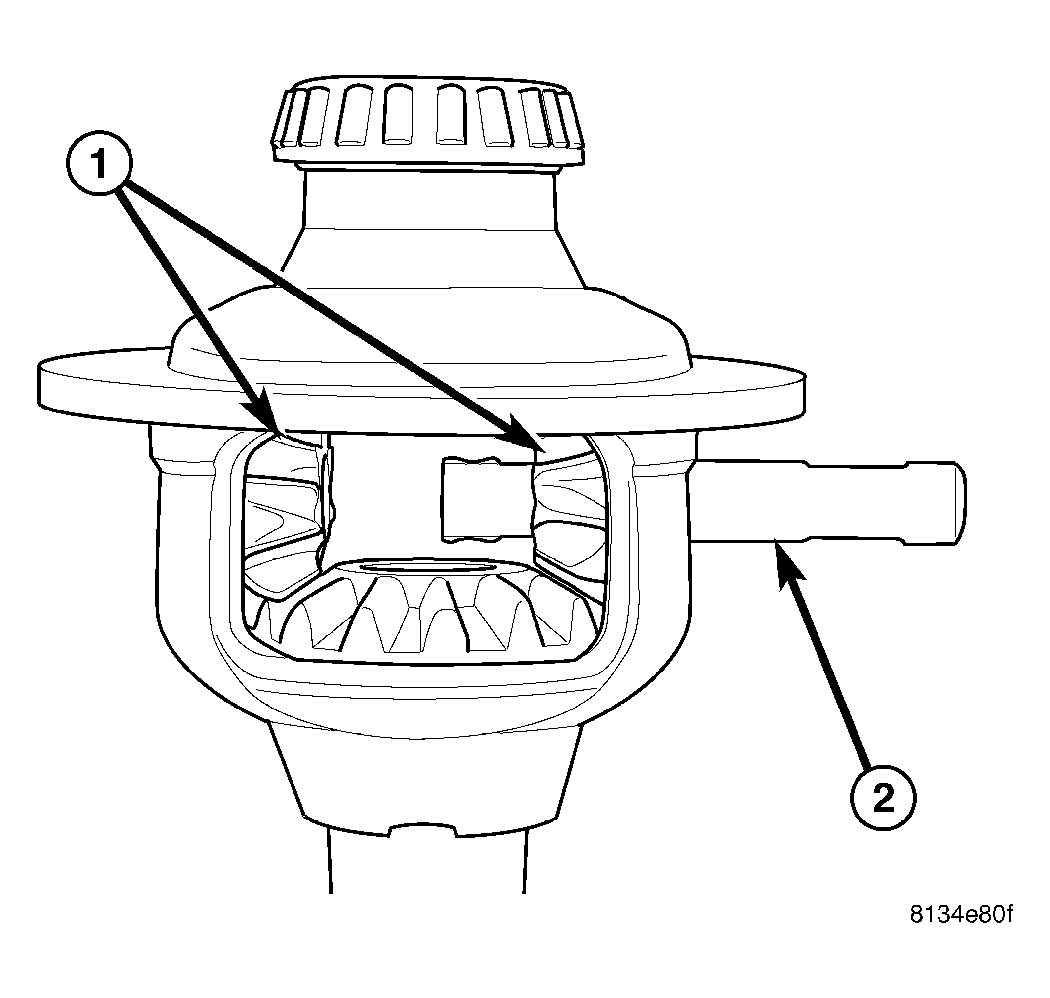

    Fig 2: Pinion Mate Shaft
    GC0028454Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove pinion gears (1) mate shaft (2) from the case.

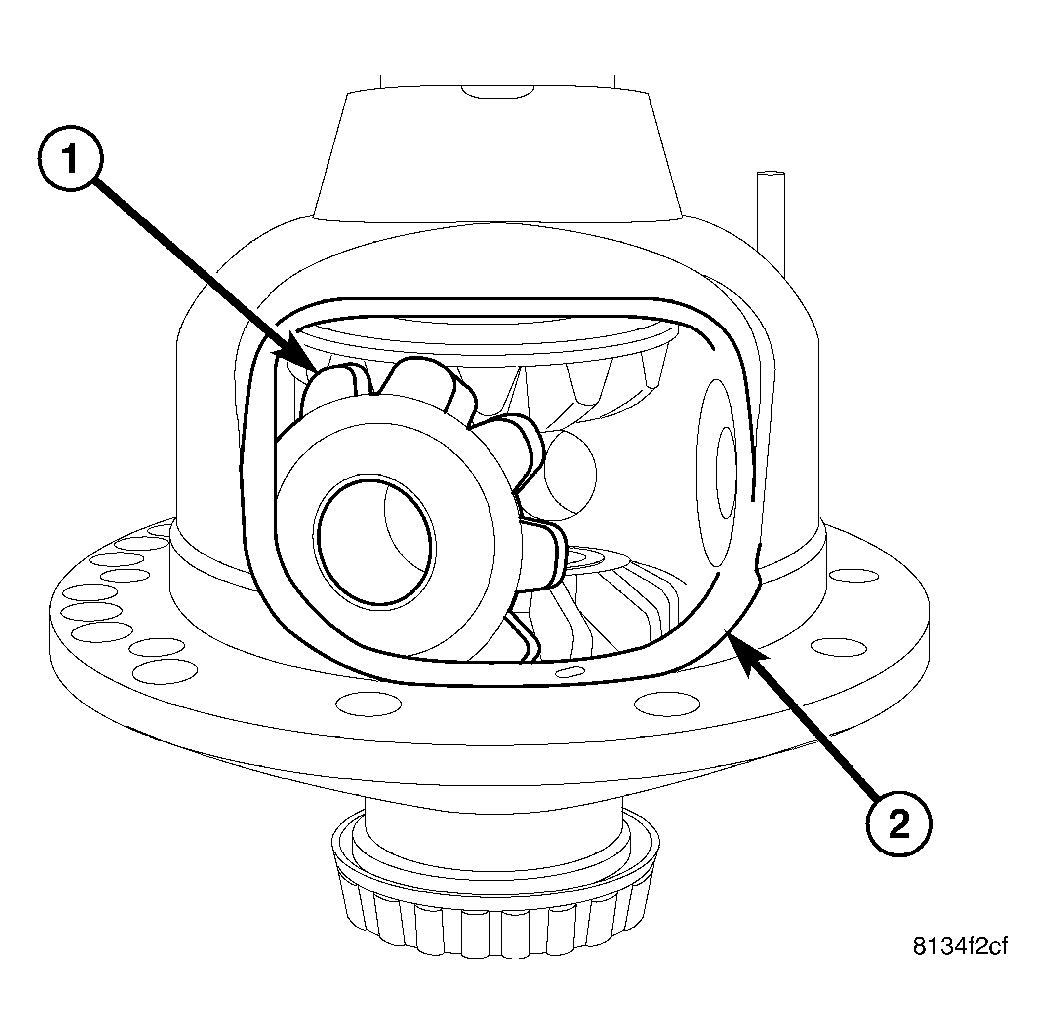

    Fig 3: Pinion Gear With Washer
    GC0028455Courtesy of DAIMLERCHRYSLER CORP.
  5. Rotate pinion gears (1) with washers to differential window (2) and remove gears through window.

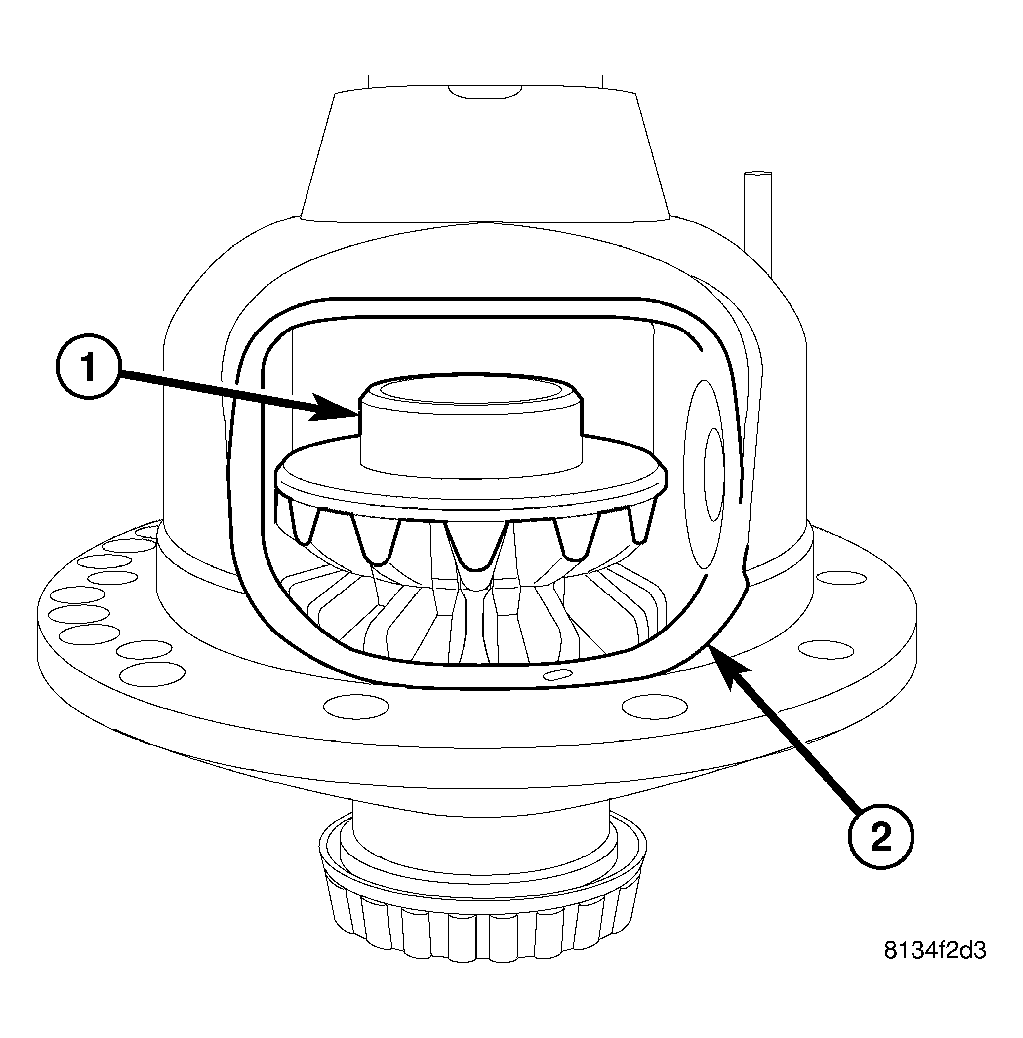

    Fig 4: Upper Side Gear
    GC0028456Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove upper side gear (1) through differential window (2).

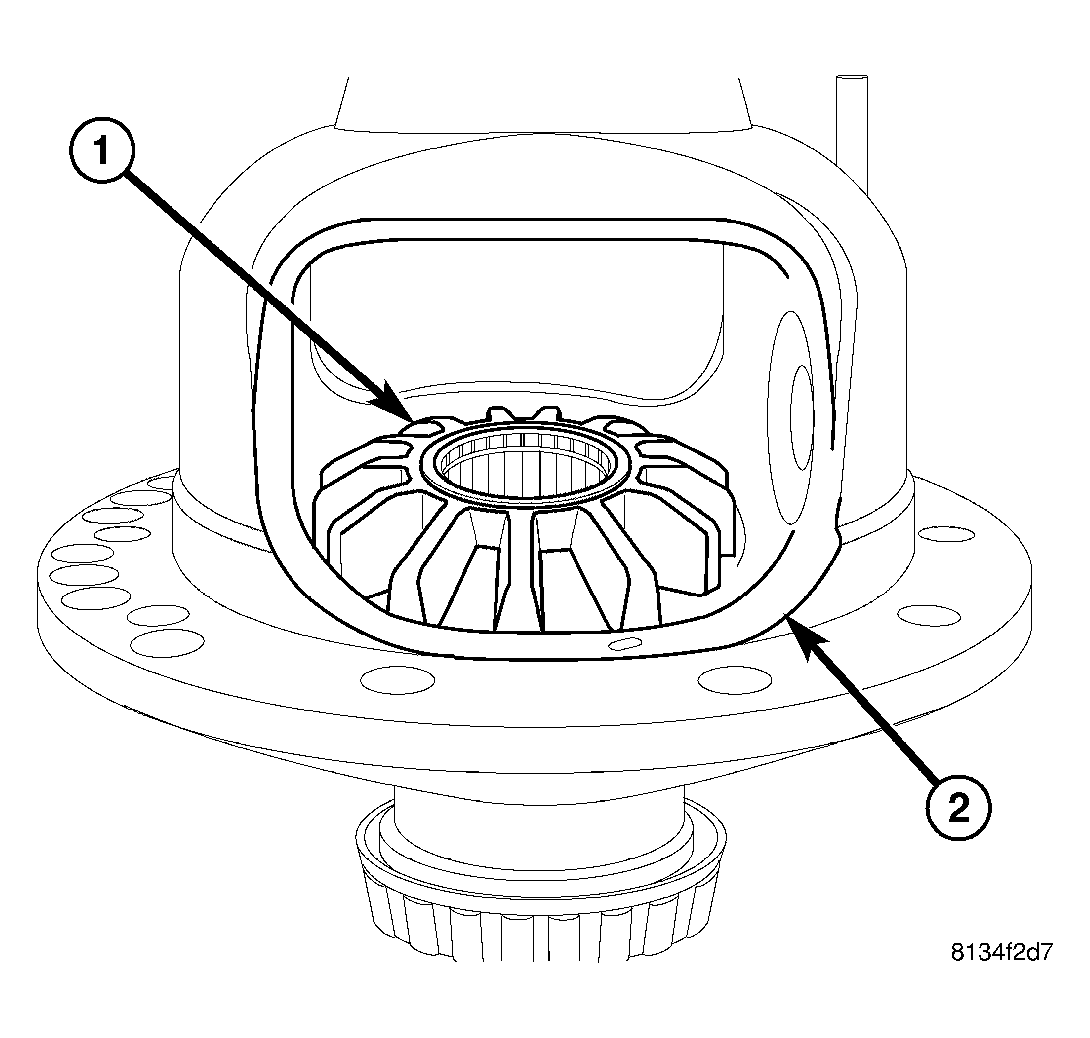

    Fig 5: Lower Side Gear
    GC0028457Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove lower side gear (1) through differential window (2).
