Differential Case Bearings: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

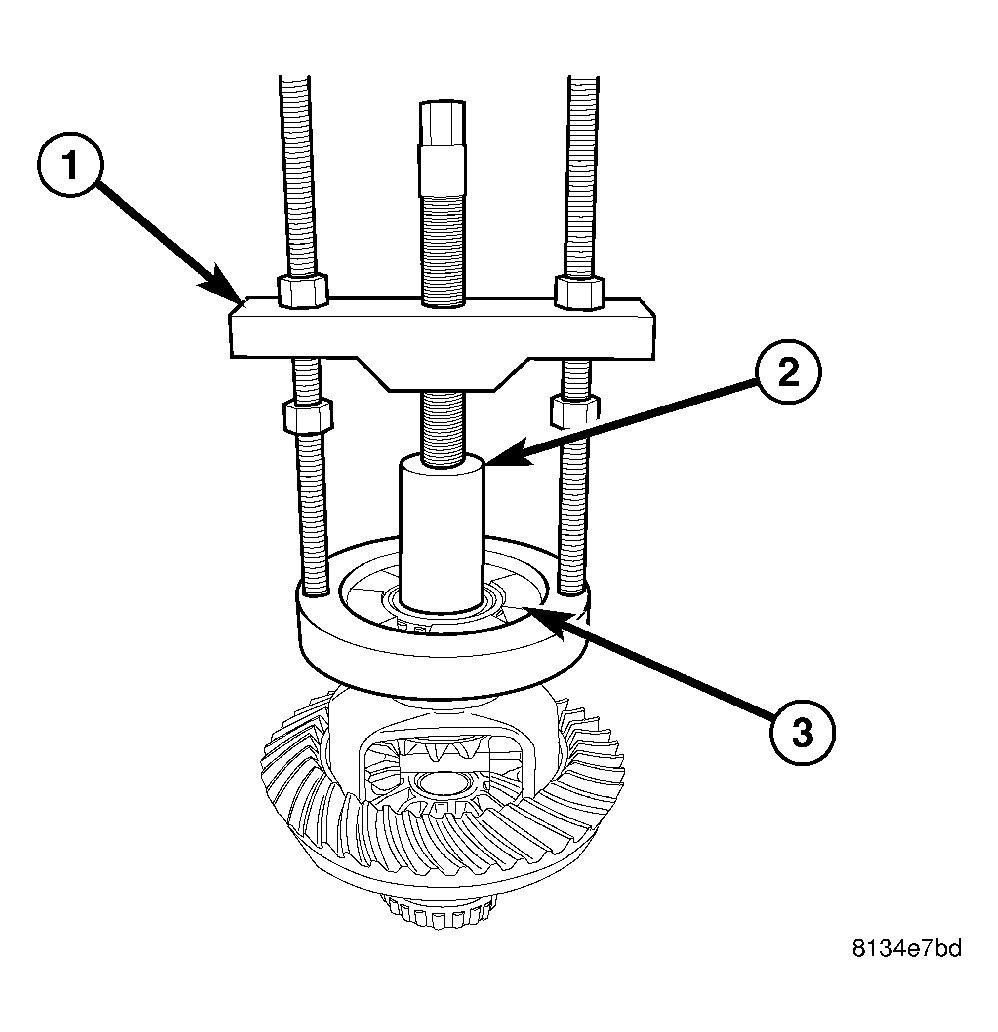

Fig 1: Case Bearing Puller
GC0028460Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove differential from housing.
  2. Remove differential bearings with Puller C-293-PA (1), Plug C-293-3 (2) and four Adapters C-293-48 (3).
