Front Axle - C200F: Bushings-Axle: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

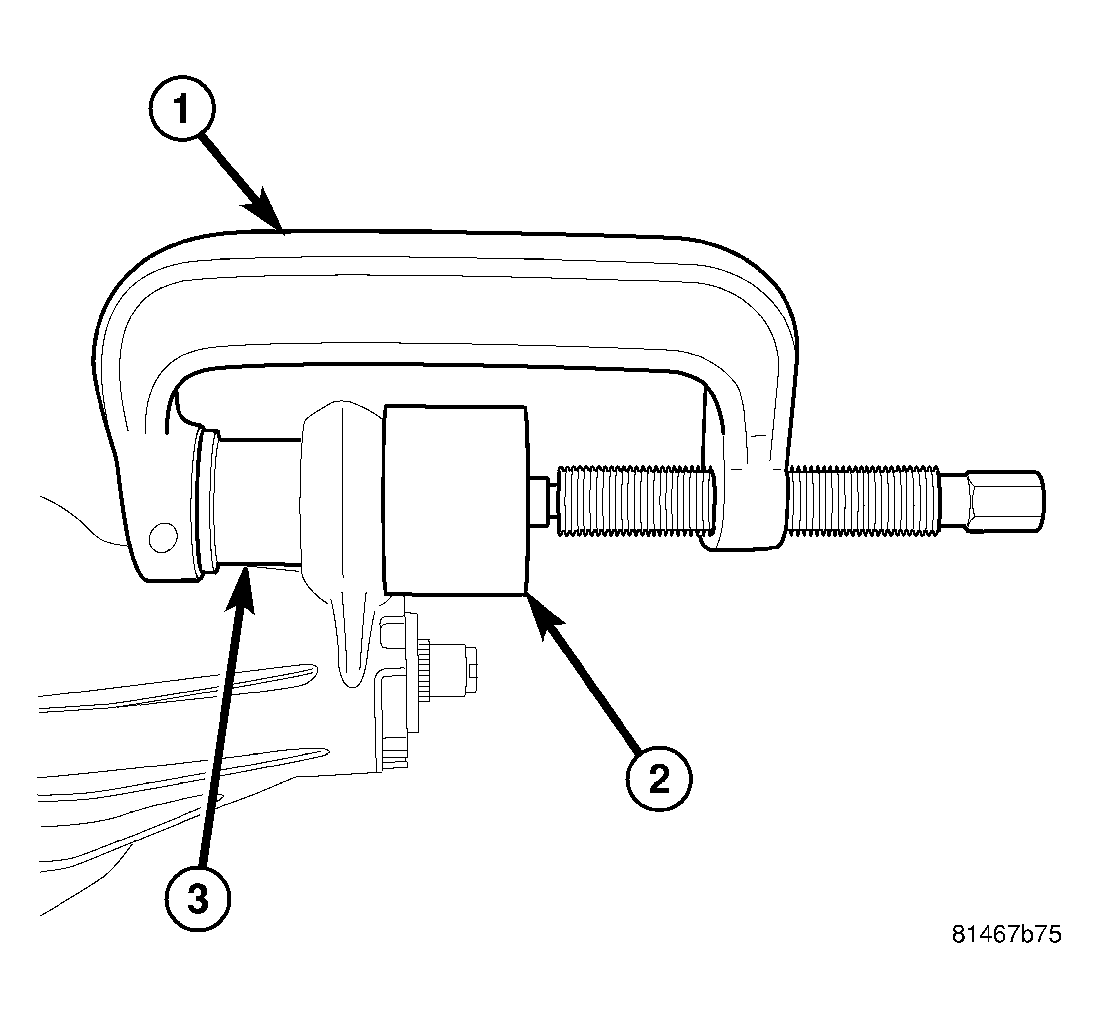

Fig 1: Pinion Nose Bushing
GC0028442Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove axle from vehicle.
  2. Remove pinion flange.
  3. Remove pinion nose bushing with Press C-4212F (1) Receiver 9536 (2) and Remover 9512 (3).

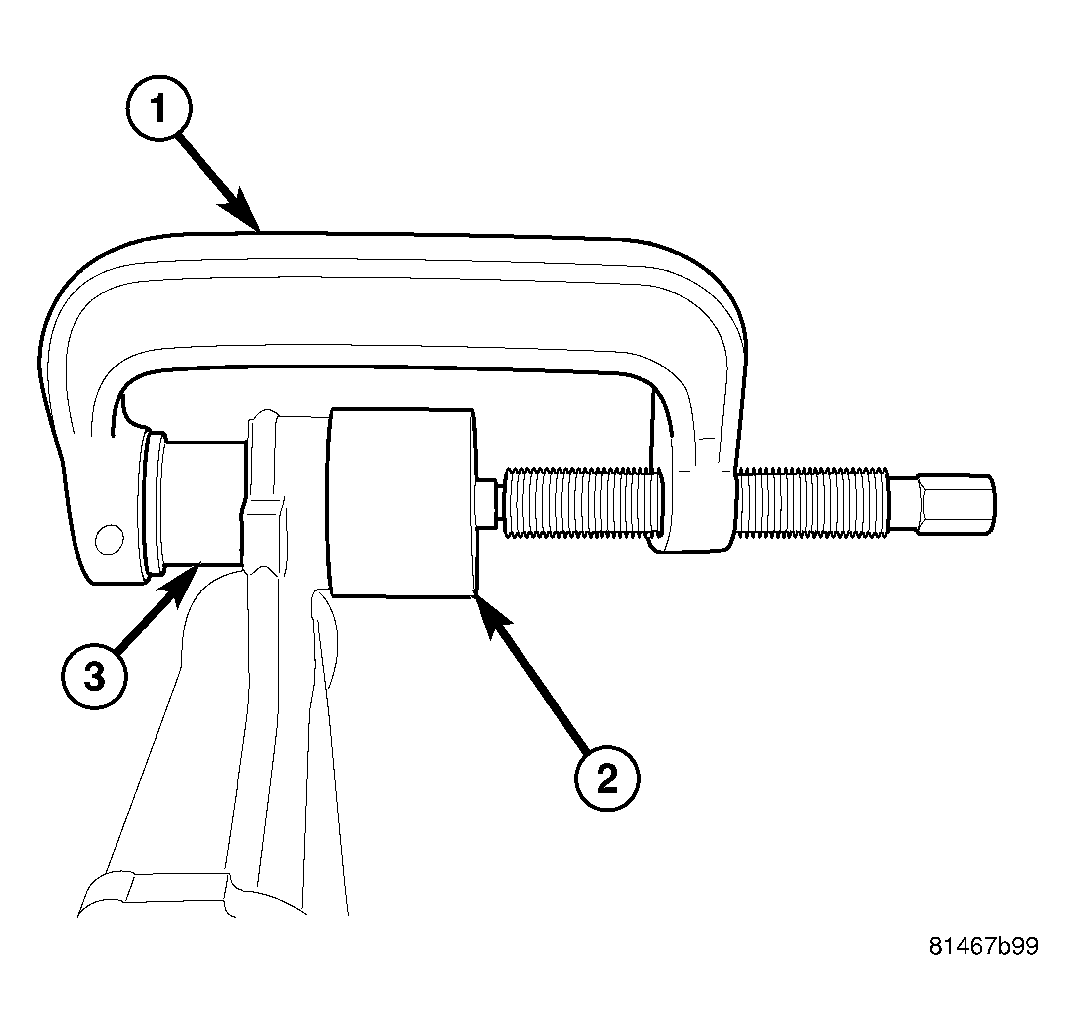

    Fig 2: Axle Tube Bushing
    GC0028443Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove axle tube bushing with Press C-4212F (1) Receiver 9536 (2) and Remover 9512 (3).
