Front Axle - C200F: Bushings-Axle: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

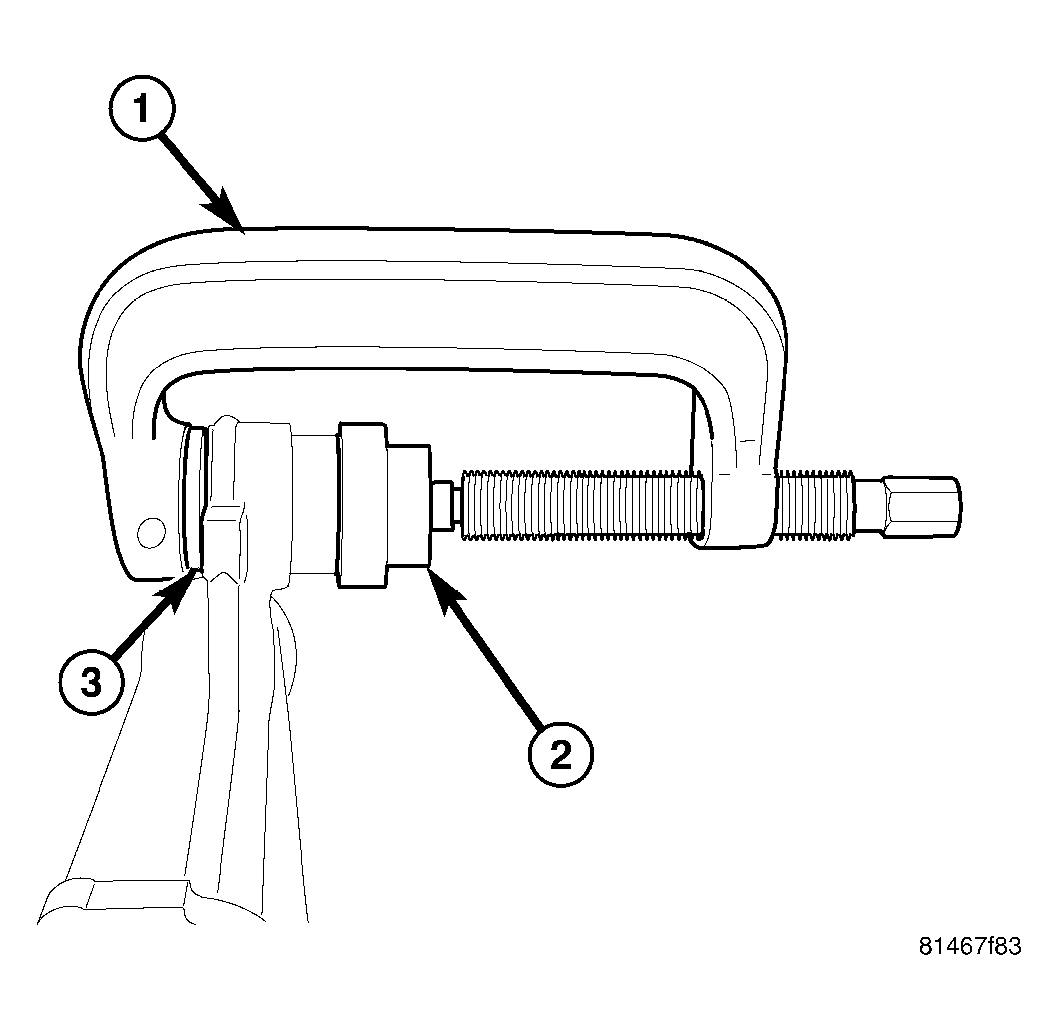

Fig 1: Axle Tube Bushing
GC0028445Courtesy of DAIMLERCHRYSLER CORP.
  1. Install axle tube bushing with Press C-4212F (1), Installer 9511 (2) and Receiver 9536-2 (3).

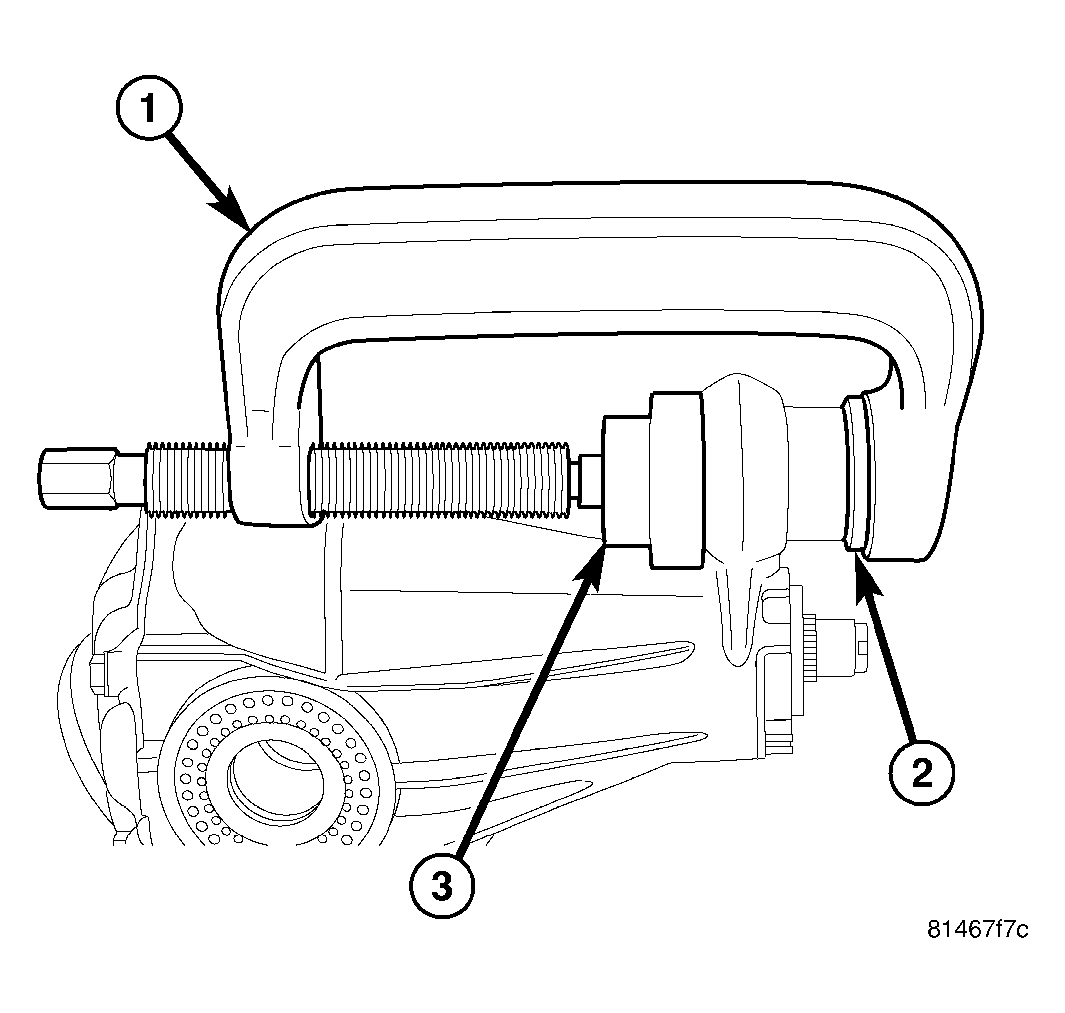

    Fig 2: Pinion Nose Bushing
    GC0028444Courtesy of DAIMLERCHRYSLER CORP.
  2. Install pinion nose bushing with Press C-4212F (1), Installer 9536-2 (2) and Receiver 9511(3).
  3. Install new pinion seal, pinion flange and new pinion nut.
