Axle Shafts: Removal
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.
- Remove half shaft from vehicle.
- Clean axle seal area.
- Remove snap ring and O-ring from the axle shaft.

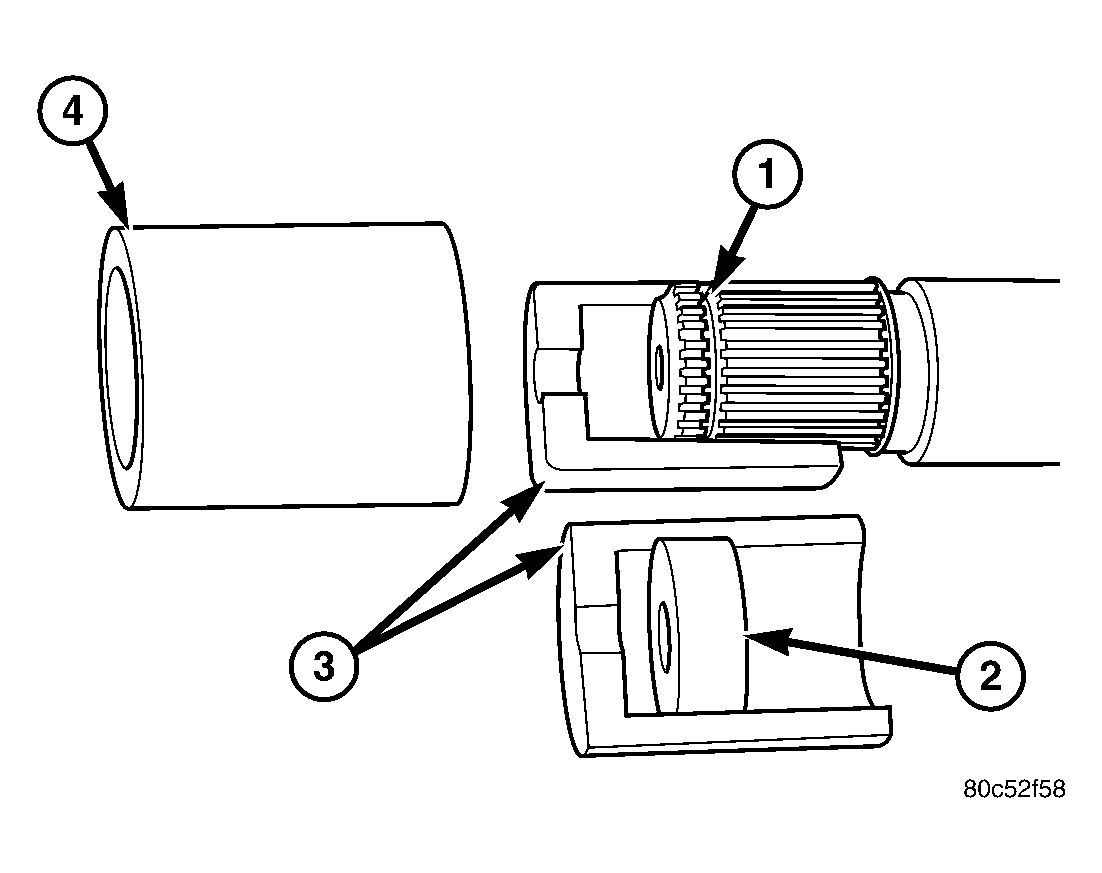

- Remove axle (1) with Remove 8420A (2) (3) (4) and slid hammer.
