Axle Bearings: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

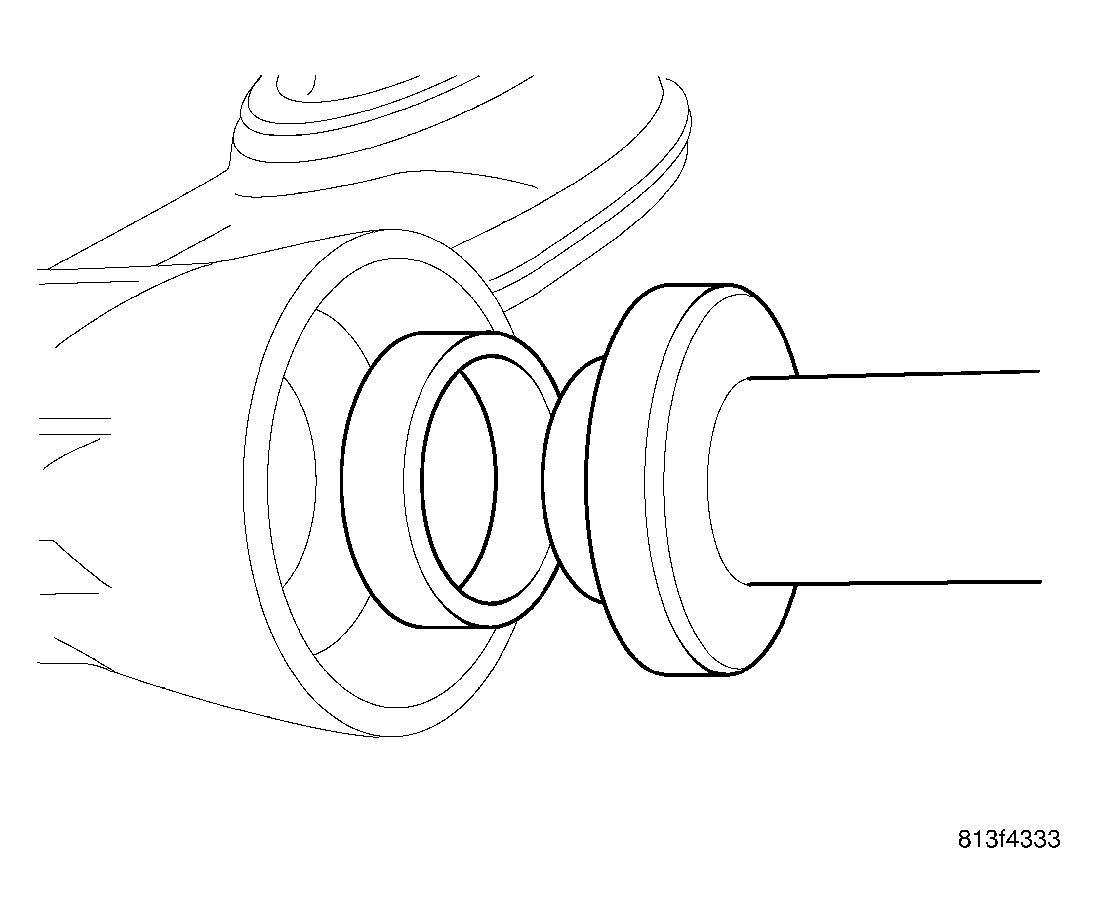

Fig 1: Bushing Installer
GC0028437Courtesy of DAIMLERCHRYSLER CORP.
  1. Install axle bushing (1) with Installer 5063 (2) and hammer.
  2. Install axle shaft and seal.
