Sunroof - Service Information: Assembly-Module: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

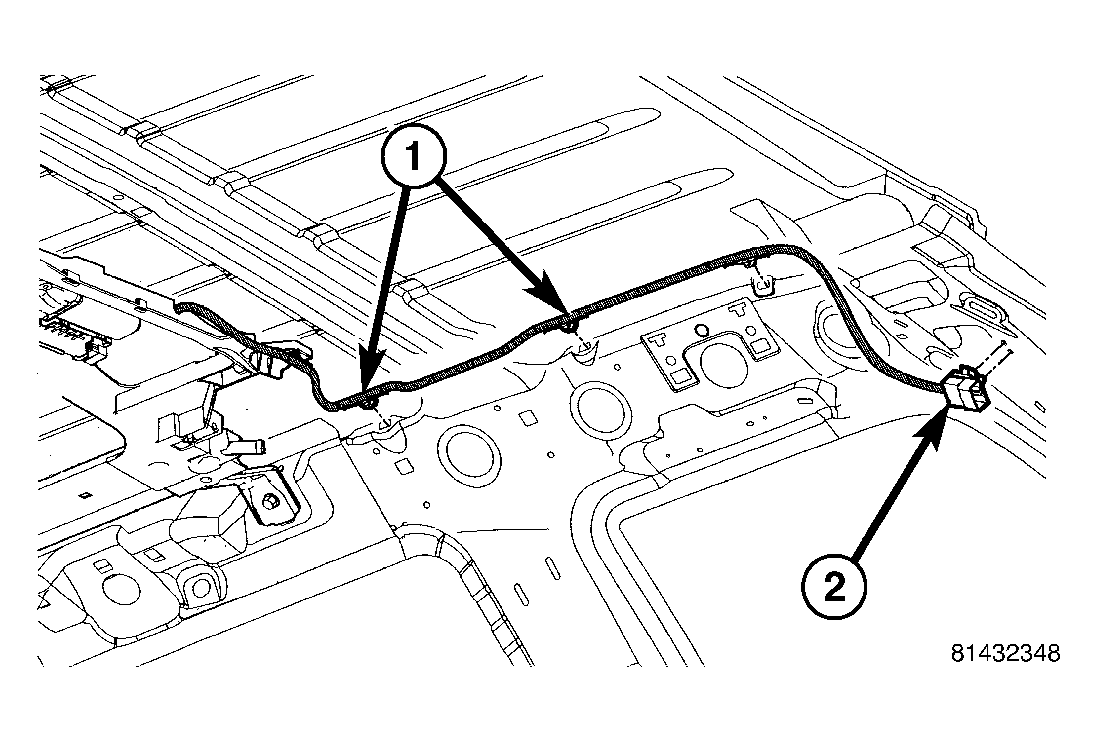

Fig 1: Identifying Sunroof Wire Harness Electrical Connector
GC0028000Courtesy of DAIMLERCHRYSLER CORP.
WARNING: The Excessive Force Limitation (EFL) feature must be calibrated any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury. (Refer to ELECTRICAL/POWER TOP/MOTOR - STANDARD PROCEDURE - EXCESSIVE FORCE LIMITATION (EFL) CALIBRATION) for the appropriate procedure.
  1. Move glass panel to the fully closed position.
  2. Disconnect and isolate the battery negative cable.
  3. Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
  4. Disconnect the sunroof wire harness electrical connector (2) and separate the harness support clips (1) from the body.
    Fig 2: Identifying Front & Rear Drain Tubes
    GC0027999Courtesy of DAIMLERCHRYSLER CORP.
  5. Disconnect the front (1) and rear (2) drain tubes from sunroof housing.
    Fig 3: Removing/Installing DVD Support Bracket
    GC0028001Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the fasteners (1) and (2) and remove the DVD support bracket, if equipped.

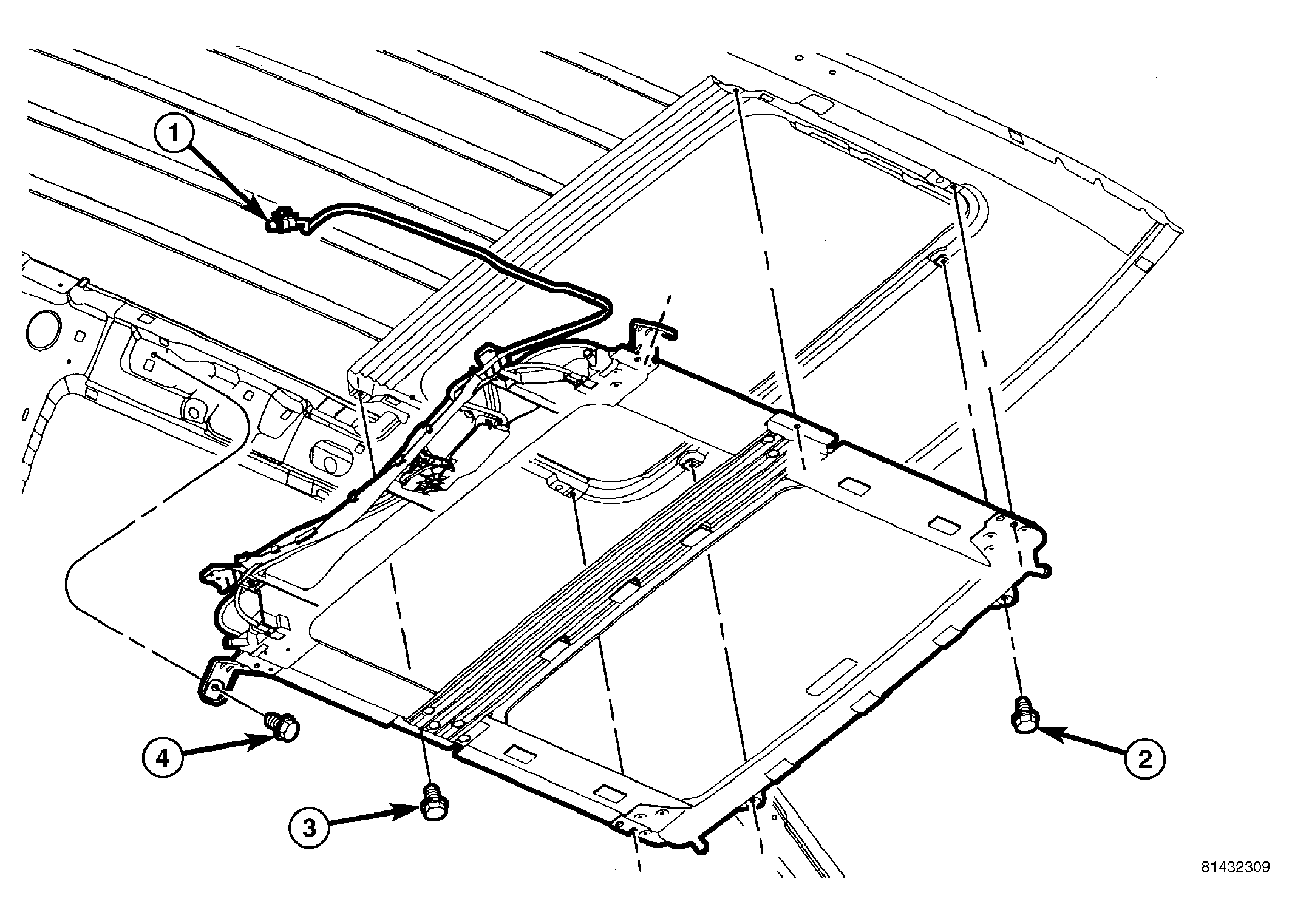

    Fig 4: Removing/Installing Sunroof
    GC0027998Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove the front (2) and rear (4) fasteners.
  8. With the aid of a helper, support the sunroof and remove the fasteners (3) attaching sunroof assembly to roof panel.
  9. Remove the sunroof from vehicle.
