Seat Back-Rear: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

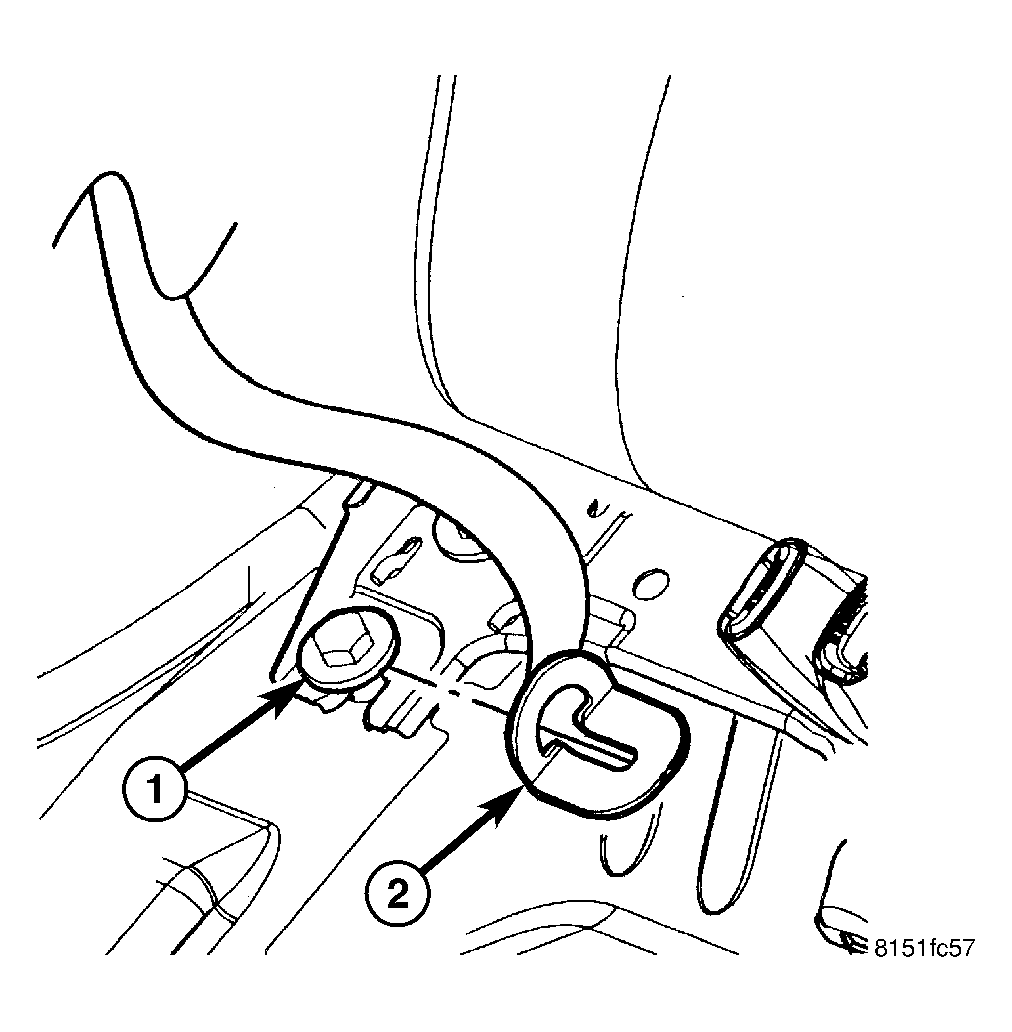

Fig 1: Identifying Rear Seat Belt Anchor
GC0027985Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the rear seat cushion (Refer to BODY/SEATS/SEAT CUSHION - REMOVAL) .
  2. Loosen outboard lower anchor bolts (1) and slide the rear seat belt anchor (2) off the bolt.

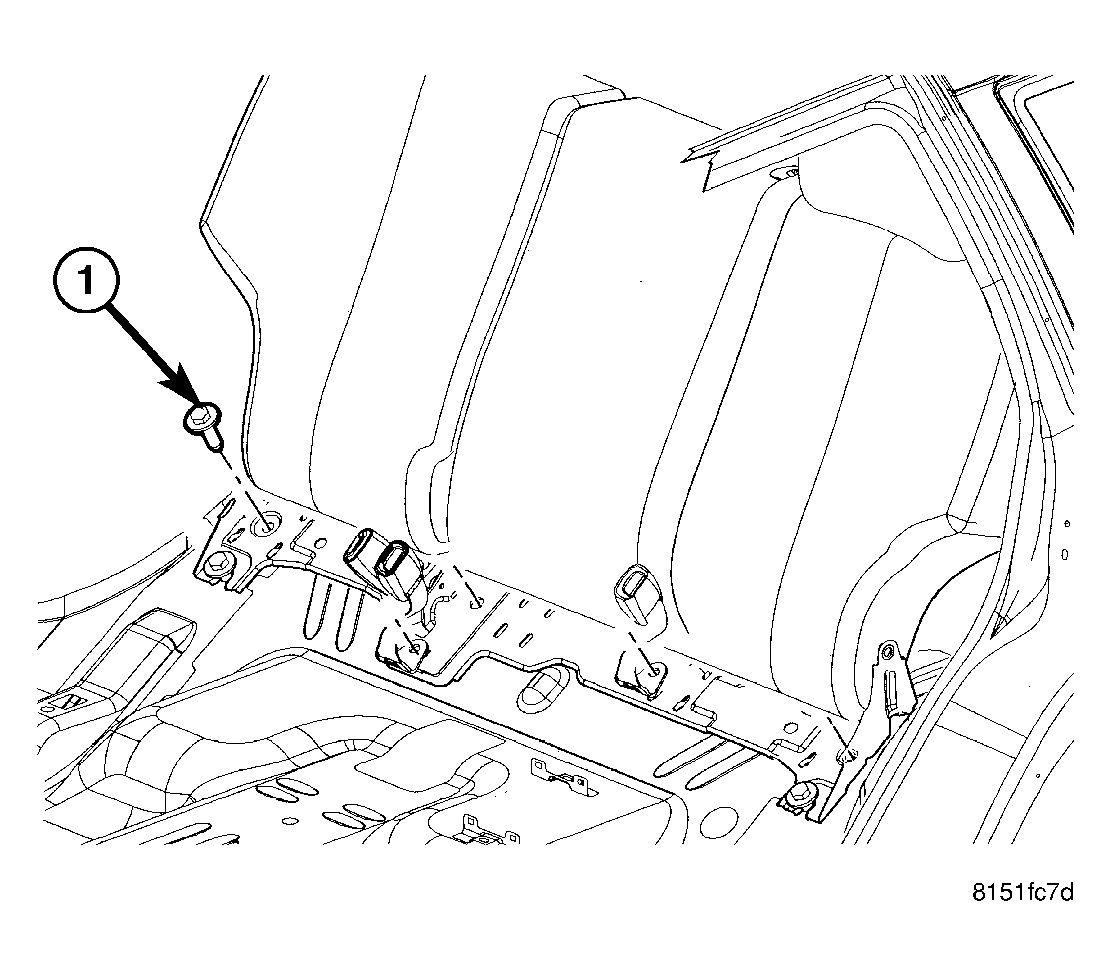

    Fig 2: Removing/Installing Rear Seat Back Mounting Bolts
    GC0027984Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the four rear seat back mounting bolts (1) and remove seat back from vehicle.
