Section 540 (Body - Interior & Exterior): Seats: Riser-Rear: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

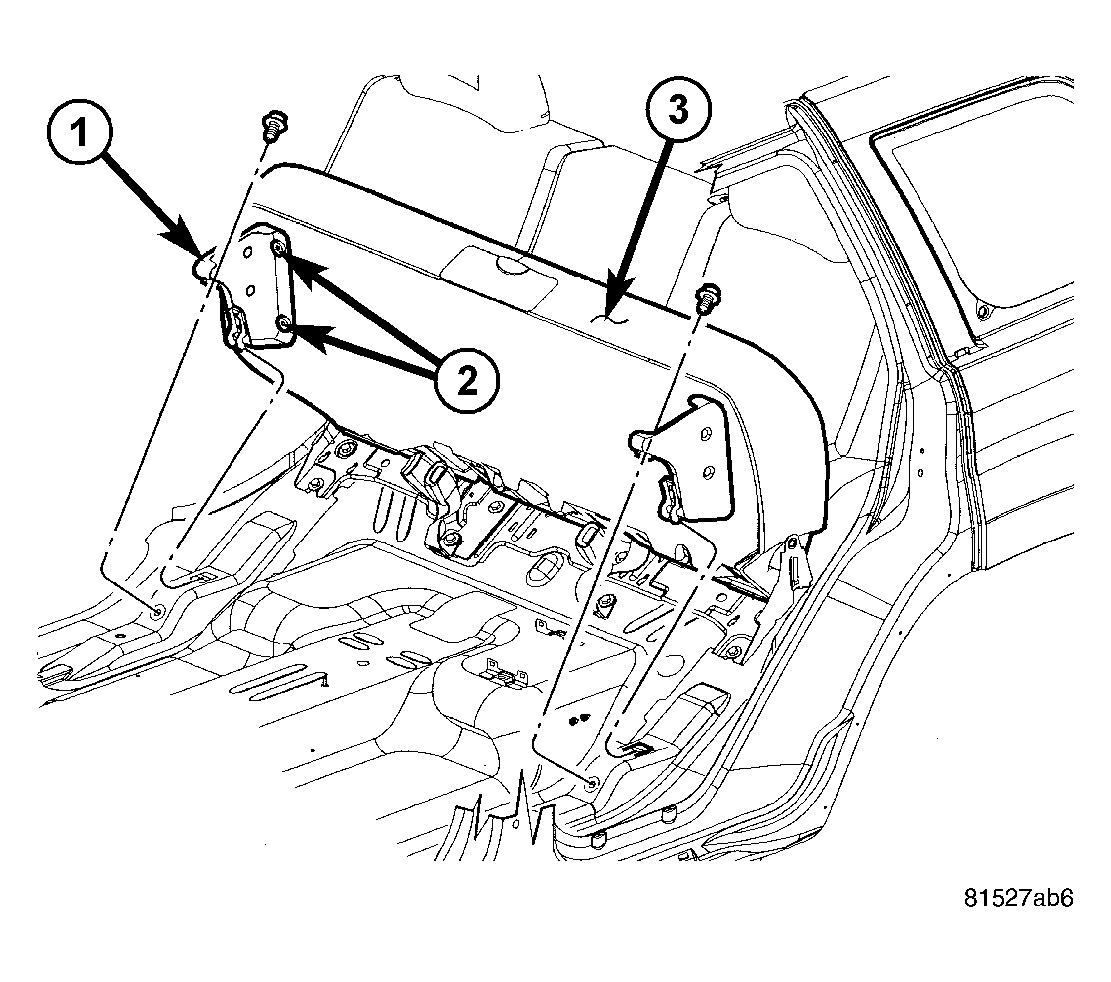

Fig 1: Removing/Installing Rear Seat Riser

Courtesy of DAIMLERCHRYSLER CORP.

Remove rear seat cushion (Refer to BODY/SEATS/SEAT CUSHION - REMOVAL) .
Remove the two bolt (2) holding the riser (1) to the seat cushion (3).
