Cushion/Cover-Seat Back - Front: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

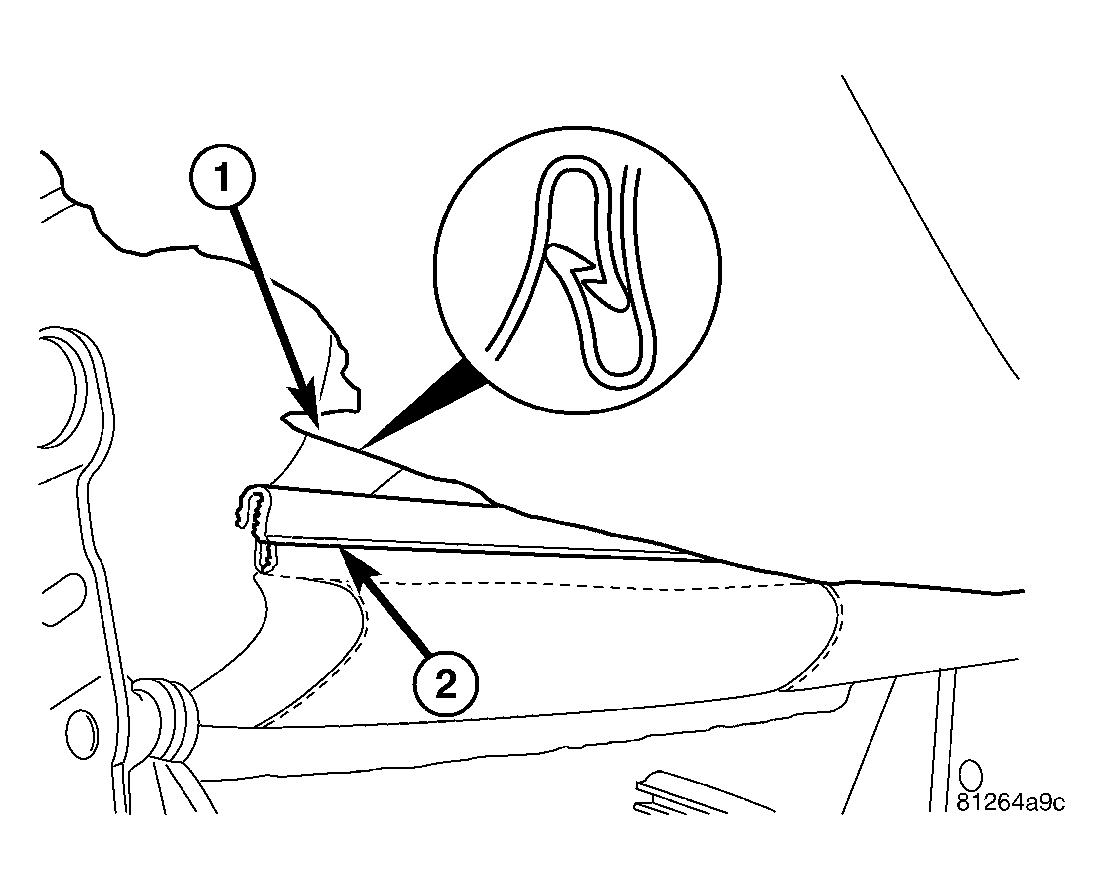

Fig 1: J-STRAPS
GC0027971Courtesy of DAIMLERCHRYSLER CORP.
  1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to BODY/SEATS - WARNING)
  2. Position the seat back cover over the seat back frame and install the headrest sleeves.
  3. Position the seat back cushion on the frame and position the cover over the cushion.
  4. Connect the j-straps (1 & 2).

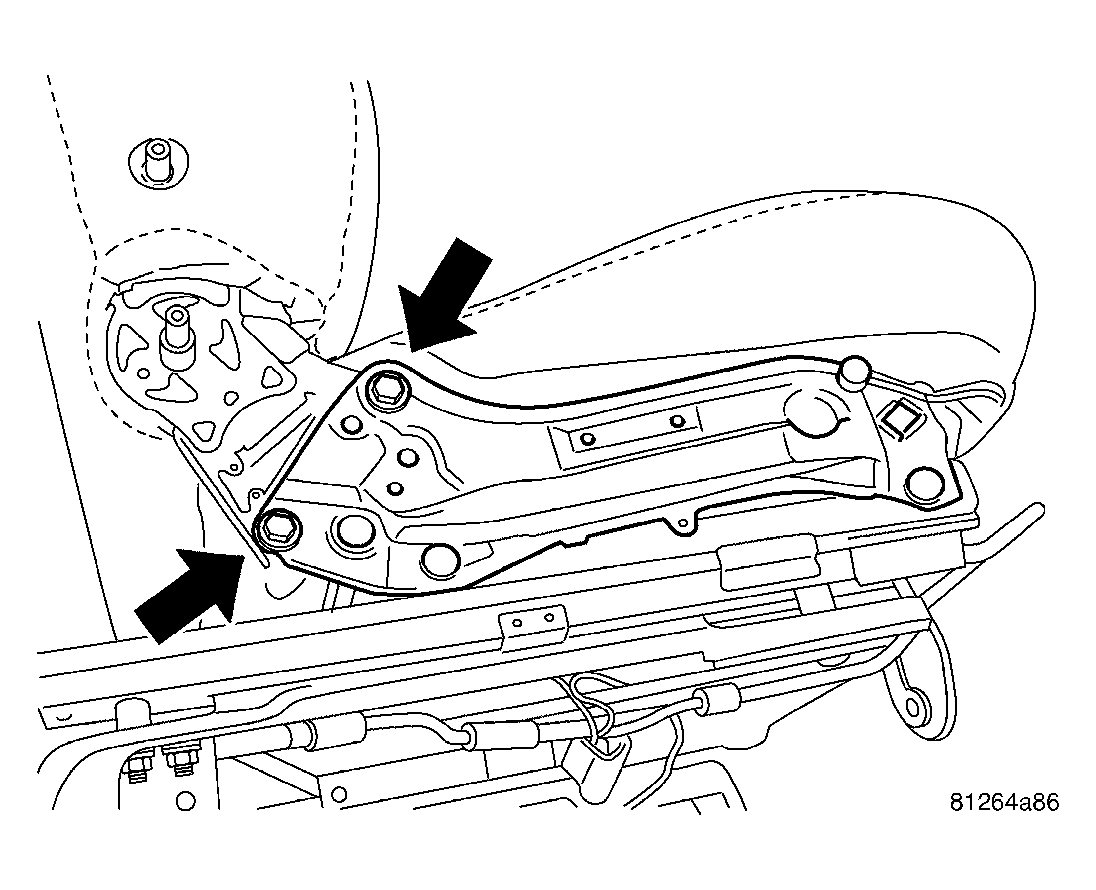

    Fig 2: BACK BOLTS
    GC0027970Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the seat back bolts and tighten to 40 N.m (30 ft. lbs.).

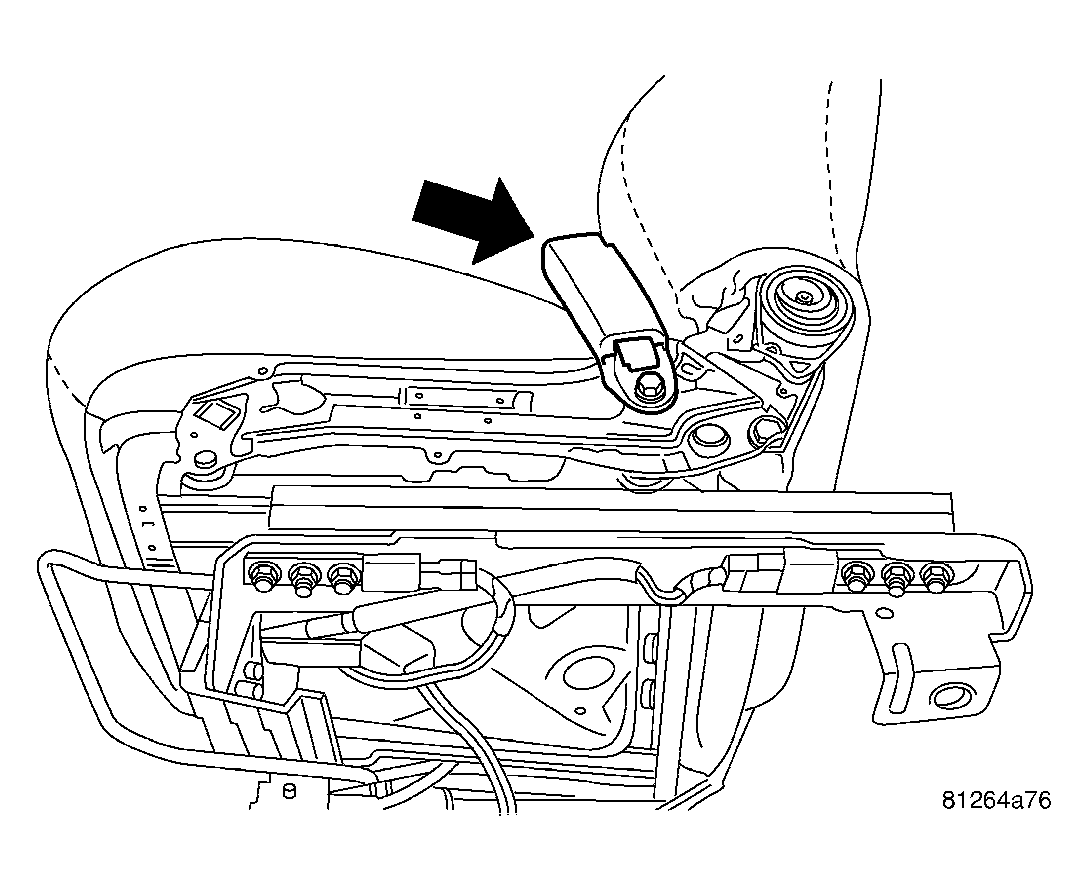

    Fig 3: BUCKLE
    GC0027969Courtesy of DAIMLERCHRYSLER CORP.
  6. Position the front seat belt buckle lower anchor onto the stud near the rear of the inboard seat cushion frame. Be certain the anti-rotation tab on the anchor is engaged in the clearance hole of the frame.
  7. Tighten the nut to 43 N.m (32 ft. lbs.)

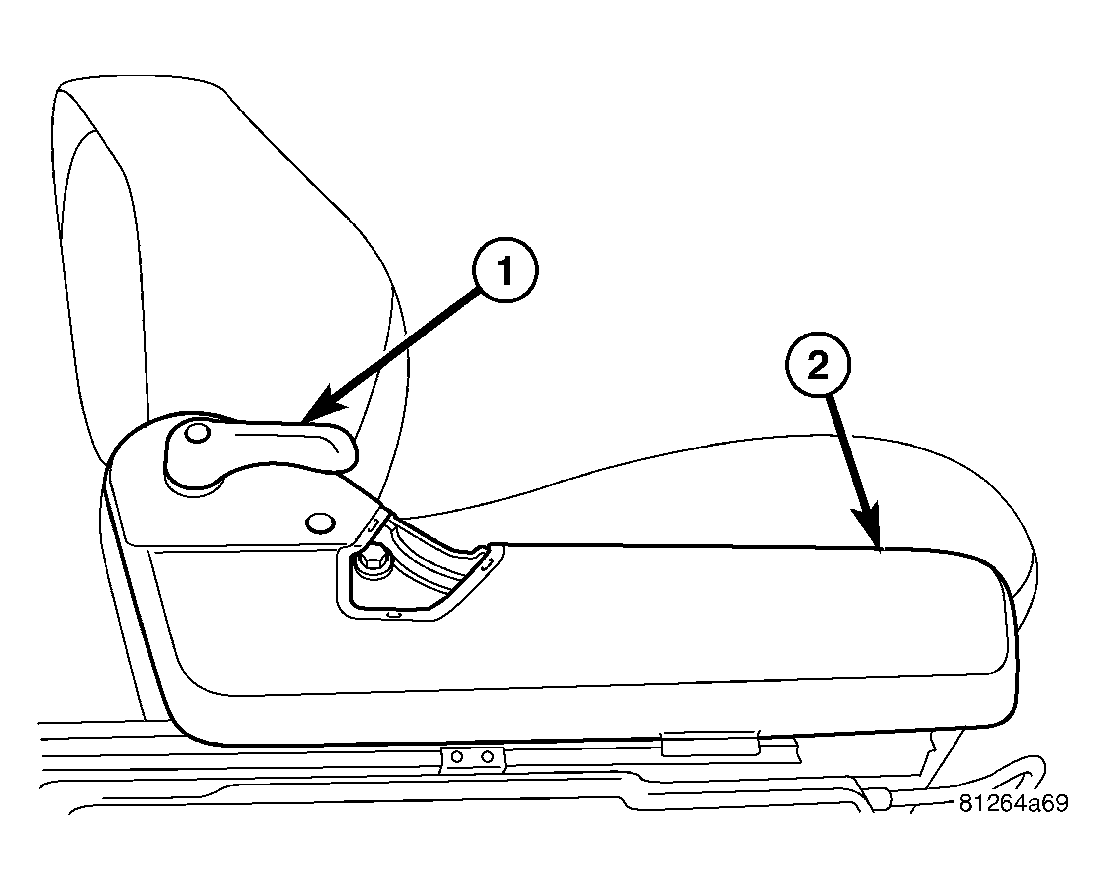

    Fig 4: HANDLES & SHIELDS
    GC0027968Courtesy of DAIMLERCHRYSLER CORP.
  8. Install the side shields (2) and install the screws.
  9. Install the lumbar and recliner handles (1 & 4).
